EXCELL PRECISION CO., LTD.

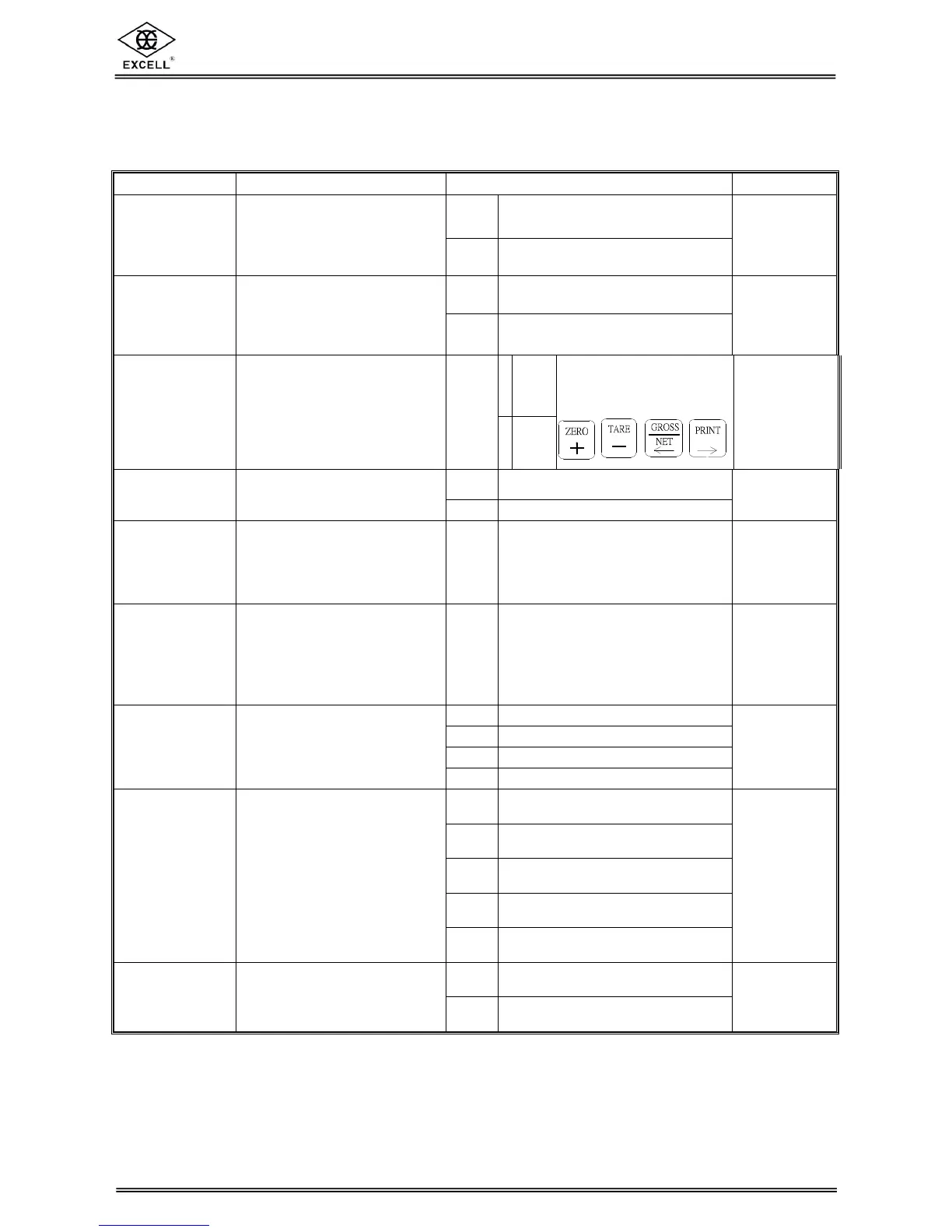

CHAPTER 9 FUNCTION TABLE
9-1 GENERAL FUNCTION
FUNC. NO. FUNCTION SET VALUE DEFAULT
0 ON
FUNC. 0
Tare and Zero function
when the weight is
unstable
1 OFF
0
0 ON
FUNC. 1
Tare function with
negative gross weight
1 OFF
0
0
ON
FUNC. 2 Key function
0000
↓
1111
1
OFF
0000 corresponding
keys from left to right
are
0000
0 OFF
FUNC. 3
Auto Zero function
after power on
1 ON
0
FUNC. 4 Zero range
0D
↓
9D
When the weight is in this
range
±(Set value × Min. division)
it displays “0”
0
FUNC. 5 Weighing Filter
0
↓
5
The larger the value the
greater the amount of
filtering.
When set to 0, the filter will
adjust automatically.
2
0 Unlimited
1 20 times/sec
2 10 times/sec
FUNC. 6 A/D sampling frequency
3 5 times/sec
2
0 Unlimited
1 20 times/sec
2 10 times/sec
3 5 times/sec
FUNC. 7 Display update rate
4 1 times/2sec
1
0 OFF
FUNC. 8 Animal scale
1 ON
0
