Excell EX2005 User Manual
5
of 1
of 1 rating
75 pages
Give review
Manual
Specs
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
14
040
1
1210
ZSME
4
00000
00
3
EXCELL
PRECI
SION CO., L
TD
S
pecification
Calibration
Linearity
Calibration
Digital
Calibration
MODBUS
Calibration

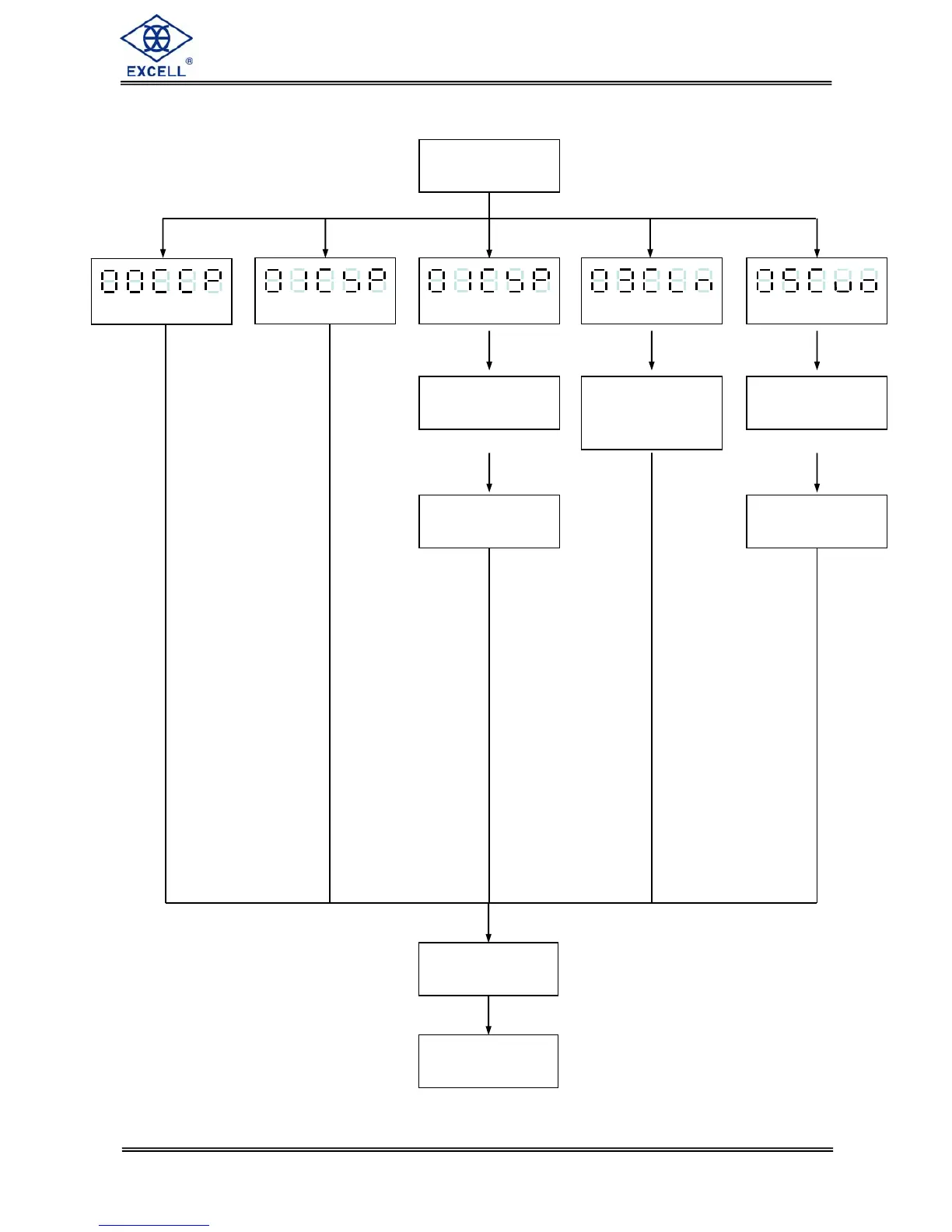

3-2 Parameter Setting and Calibration Flow Chart
Calibration
Switch ON
Zero Point
V
oltage
Calibration
S
pan V
oltage
Calibration
Select 1 Point for
Weight Calibration
(1P~5P)
Calibration Switch
OFF
Calibration
Completed
Zero point
Calibration
Weight Calibration
General
Calibration
15
17
Table of Contents
Default Chapter
3
Table of Contents
3
Features
5
Safety
5
Chapter 1 Front and Rear Panel Specifications
6
Front Panel
6
Rear Panel
6
Keypad Description
7
A/D Conversion
7
Power Supply
7
Dimensions
8
Chapter 2 General Function Guide
9
Function Setup and Operation Procedures
9
Error Messages (Display in General Function Setting)
10
Function Setting
12
Chapter 3 Calibration
15
Load Cell Connection
15
Parameter Setting and Calibration Flow Chart
16
Calibration Process
17
MODBUS Calibration
18
Specification Calibration
19
General Calibration
21
Linearity Calibration
22
Digital Calibration
24
Chapter 4 Weight Comparison Procedures
25
Function Configuration Menu
25
Check Weighing Configuration
28
Batching Signal Outputs
31
Normal Batching Flow Chart (SQ-01=1)
32
Loss-In Weight Flow Chart (SQ1=2)
33
Hi, OK, lo Output Flowchart
34
Normal Batching (Built-In Program) Flowchart (SQ-01=4)
35
Loss-In Weight (Built in Program) (SQ-01=5)
36
Hold Mode (SQ-01 = 6)
37
Hold Mode Flow Chart
38
Hi, OK, lo Comparison
39
Totalizing (ACCU.) Auto / Transmit
39
Chapter 5 Interface
40
Serial Input / Output Interface (Default OP-01)
40
BCD Parallel Output Interface (OP-02)
48
Analogue Current / Voltage Output Interface (OP-03)
50
External Parallel Input / Output Interface
52
Parameter Description
54
Chapter 6 Maintenance
57
Restore All Parameters to Their Default Factory Values
57
Maintenance Function Parameters
57
Restore the Function Parameter Back to Its Default Value
58
Clear Zero Compensation and TARE Values
58
Clear Batch Setting
58
Display Zero Voltage (MV/V)
58
Test Mode
59
7-Segment Display Testing
60
Keypad and Calibration SW Testing
60
Display A/D Internal Value Display
60
RS-232 Serial Loop Back Testing
60
EEPROM Memory Testing
60
Option Interface Card Testing
60
Appendix 1 Description of 7-Segment Characters
62
Appendix 2 Function Table
63
Appendix 3 MODBUS Data Address Table I
72
Appendix 4 MODBUS Data Address Table II
73
Appendix 5 Examples for Input and Output of Modbus
74
