4-9 Hold mode (SQ-01 = 6)

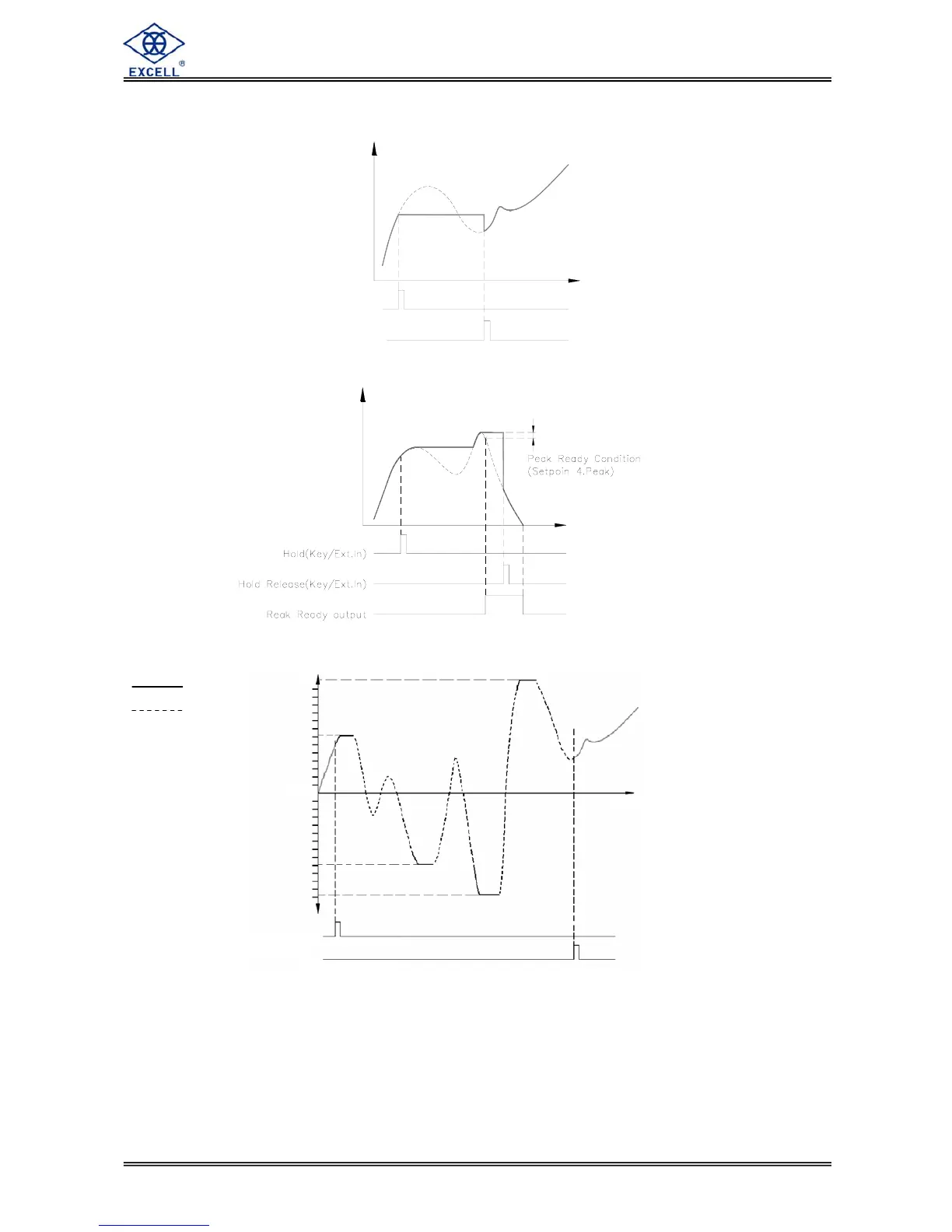

1. General hold mode (FNC-11 = 0)
2. Peak hold mode ( FNC-11 = 1、2 )
3. Peak hold mode ( FNC-11 = 3、4 )
Peak hold mode with four different states ( FNC-11 = 1,2,3,4 ), positive peak weight(1),
negative peak weight, absolute value of peak weight and positive peak weight(2) . The
peak holds of absolute value and positive peak weight (2) both have no peak ready signal
output.
Hold
(
Ke
y
/ Ext.In
)
Hold Release
(
Ke
y
/ Ext.In
)
ZERO
Hold
(
Ke
y
/ Ext.In
)
Hold Release
(
Ke
y
/ Ext.In
)
Normal display
Hold
display
