Excell EX2005 - Analogue Current; Voltage Output Interface (OP-03)

48
04011210
EXCELL PRECISION CO., LTD
ZSME400000003
5-3 Analogue Current / Voltage Output Interface (OP-03)

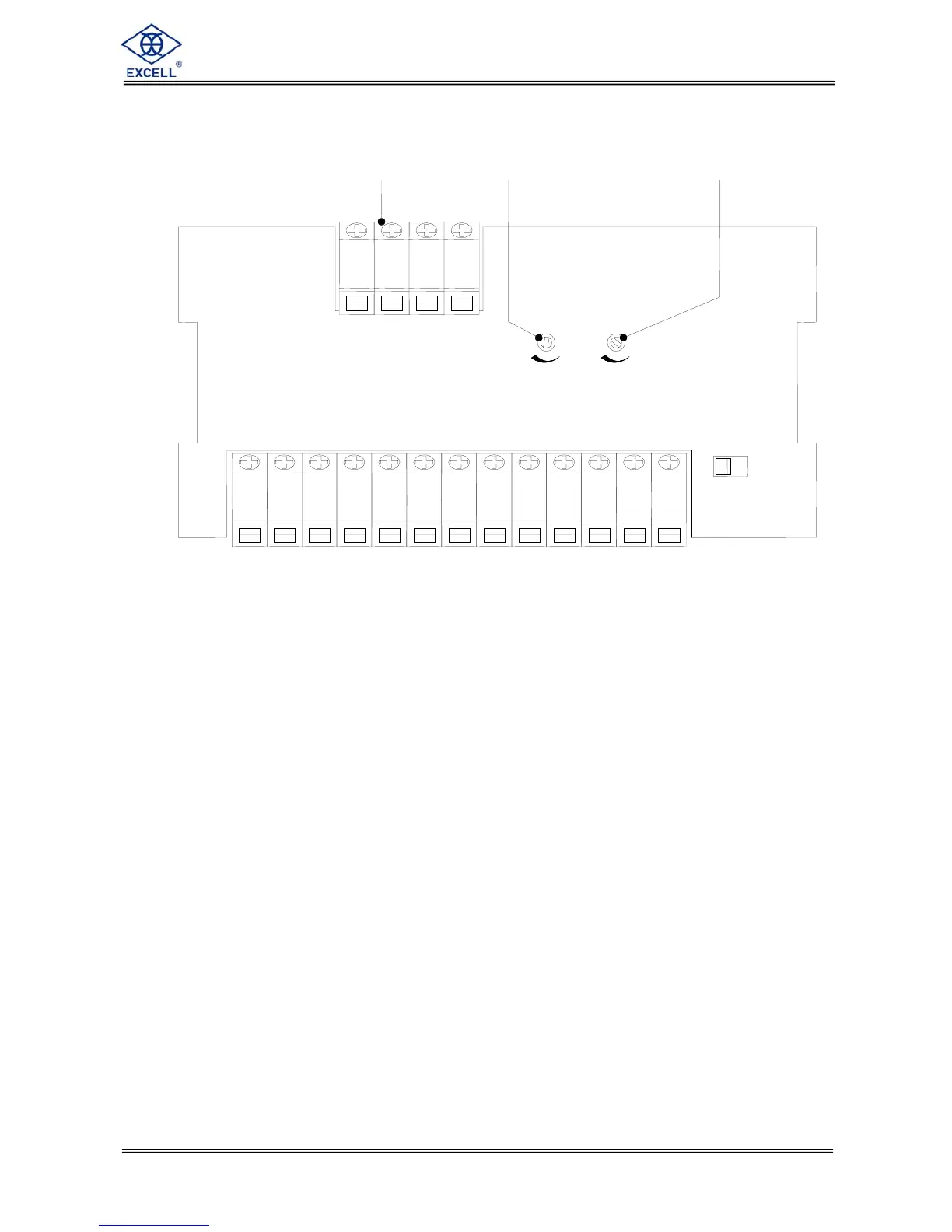

 Location
A B C
A. Terminal (4 way)
1 : 0 ~ 20mA current output, positive
2 : 0 ~ 10V voltage output, positive
3 : Current / voltage signal, negative
4 : Ground / 0V
B. SPAN adjustment
Current / voltage Span adjustment to increase value turn clockwise, decrease value
turn anticlockwise.
C. ZERO adjustment
Current / voltage Zero adjustment to increase value turn clockwise, decrease value
turn anticlockwise.
 Analogue output interface specification
Resolution : 16 bits
Current output :
0 ~ 20mA ( 0 ~ 550 Ω load)
Voltage output : 0 ~ 10V
CAL
2 1 3 4 5 10 6 7 8 9 11 12 13
2 1
2. V (+) 1. A (+)
-
SPAN
3. Com. (
-)
4 3
+
ZERO
+ -
4. FG
ON
