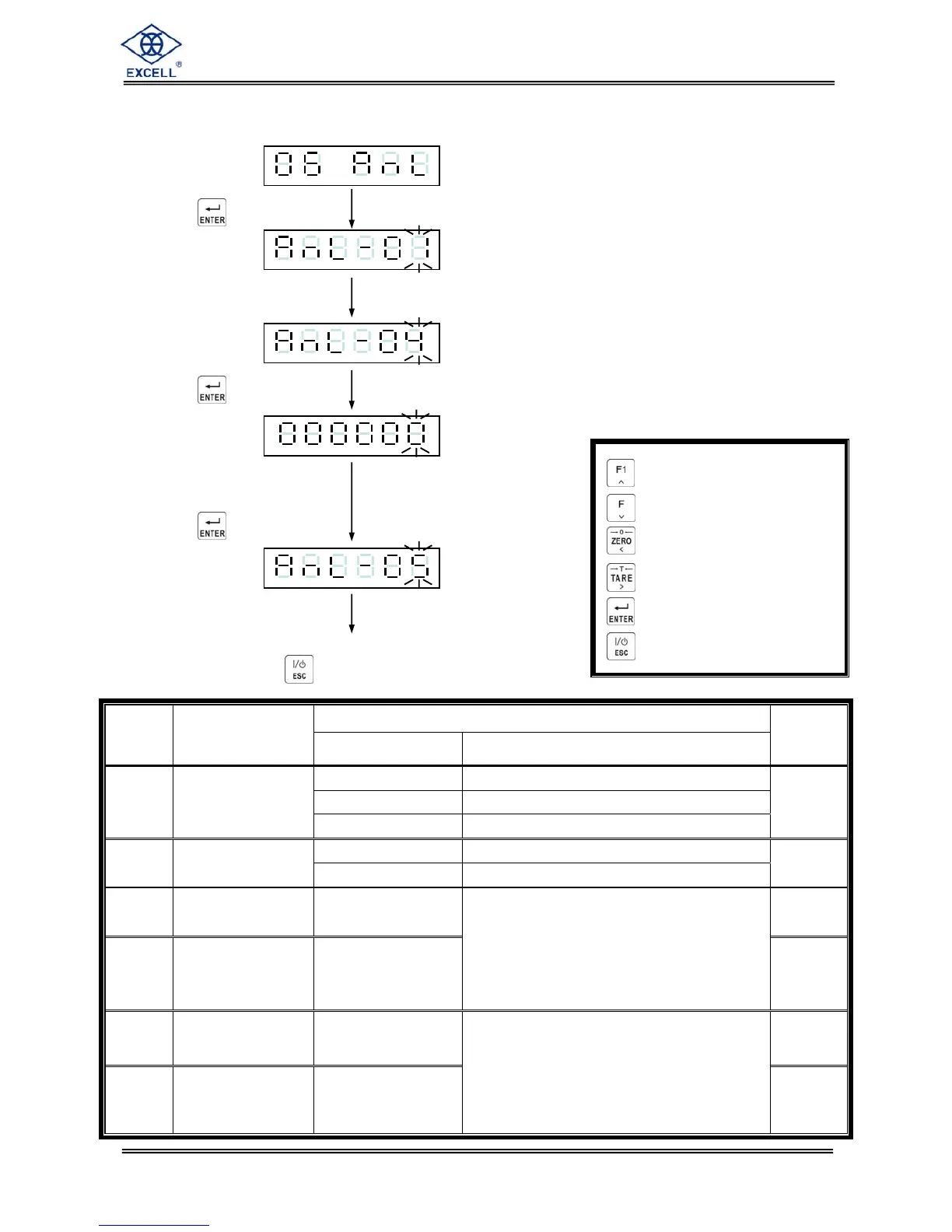

Function setting
Press the key
Input desired
Parameter code
Press the key
Display shows the existing
parameter code. Input
new code as required.
Press the key
Continue to another function setting
or press key to escape
Setting value
Item Function
Parameter Description
Default
0 As display
1 Gross
AnL- 01 Data type
2 Net
0
0 Current output
AnL- 02 Signal output
1 Voltage output
0
AnL- 03 Weight in Lo 000000 ~ 999999 0
AnL- 04
Current / Voltage
in Lo
0.0 mA ~ 20.0 mA
or
0.0 V ~ 10.0 V
When the weight reaches the value of
that in AnL-03(the Max. weight is the
max setting value (refer to CSP-04 ),
the current / voltage(refer to AnL-02)
output is changed to that configured in
AnL-04
4.0
AnL- 05 Weight in Hi 000000 ~ 999999 300000
AnL- 06
Current / Voltage
in Hi
0.0 mA ~ 20.0 mA
or
0.0 V ~ 10.0 V
When the weight reaches the value of
that in AnL-05(the Max. weight is the
max setting value (refer to CSP-04 ),
the current / voltage(refer to AnL-02)
output is changed to that configured in
AnL-06
20.0
⇒ Increment flashing digit
⇒ Decrement flashing digit
⇒ Move flashing point left
⇒ Move flashing point right
⇒ Store data in memory
⇒ Exit / Escape
