EXCELL PRECISION CO., LTD

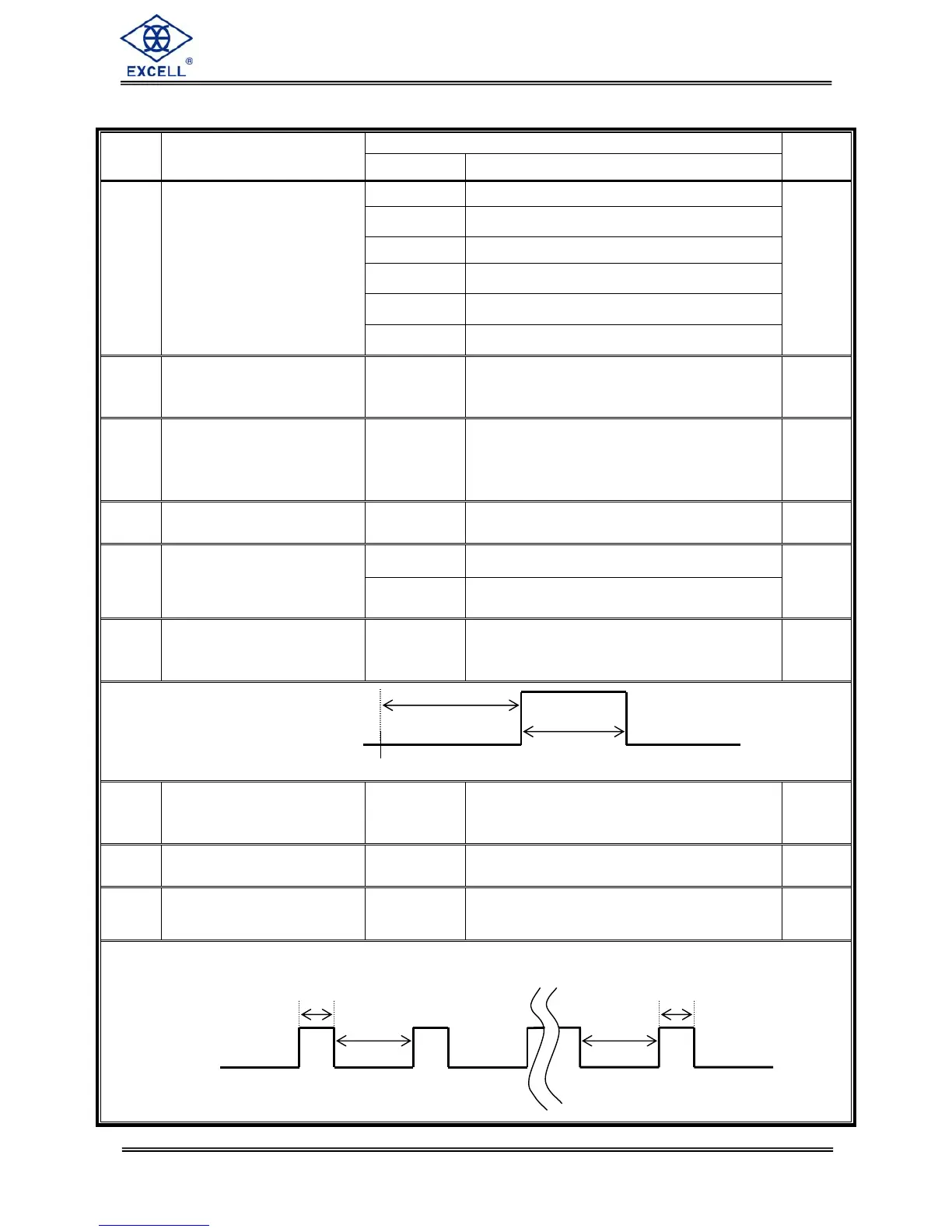

Functional Parameter Instruction
Setting value
Item Function
Parameter Description
Default
1 Normal batch
2 Loss-in weight
3 Comparison mode
4 Normal batch (Built-in program)
5 Loss-in weight (Built-in program)
SQ- 01 Batching mode
6 Hold mode (Built-in program)
1
SQ- 02 Batching start delay time
0.0 ~ 25.5
(sec)
The built-in auto-program starts the
batch comparison procedure after the
input of the batch start signal
0.0
SQ- 03
SP1,SP2
Waiting time comparison
0.0 ~ 25.5
(sec)
No full flow comparison during this
function’s set time period. If the set
value is 0, indicates this function is not
in use
0.0
SQ- 04
Batch finish output signal
delay time
0.0 ~ 25.5
(sec)
Output the batch finished signal after
this delay time
0.5
0 Wait until the weight is stabilized
SQ- 05
Batch finish Condition
1
No need to wait until the weight has
stabilized
0
SQ- 06
Batch finish
Output signal time
0.0 ~ 25.5
(sec)
Batch finished output signal time.
If set to 0, the output signal will be off
until the next batch start
1.0
Batch finish signal ON
SQ 04
OFF SQ 06
Batch finish
SQ- 07
Number of Times the
supplementary loading
function operates
0 ~ 255
If the set value is 0, this function is
not in use
0
SQ- 08
Supplementary loading
gate open time
0.0 ~ 25.5
(sec)
Must be coordinate with times of
supplementary loading, (SQ- 07)
0.1
SQ- 09
Supplementary loading
gate close time
0.0 ~ 25.5
(sec)
Must be coordinate with times of
supplementary loading, (SQ- 07)
1.0
Supplementary loading signal
SQ- 08 SQ- 08
ON SQ- 09
SQ- 09
OFF
SQ- 07 Times of “ON” of the supplementary loading
