E-7
POWERPACK ASSEMBLY
82
83
80
84
88
79
81
85
87
86

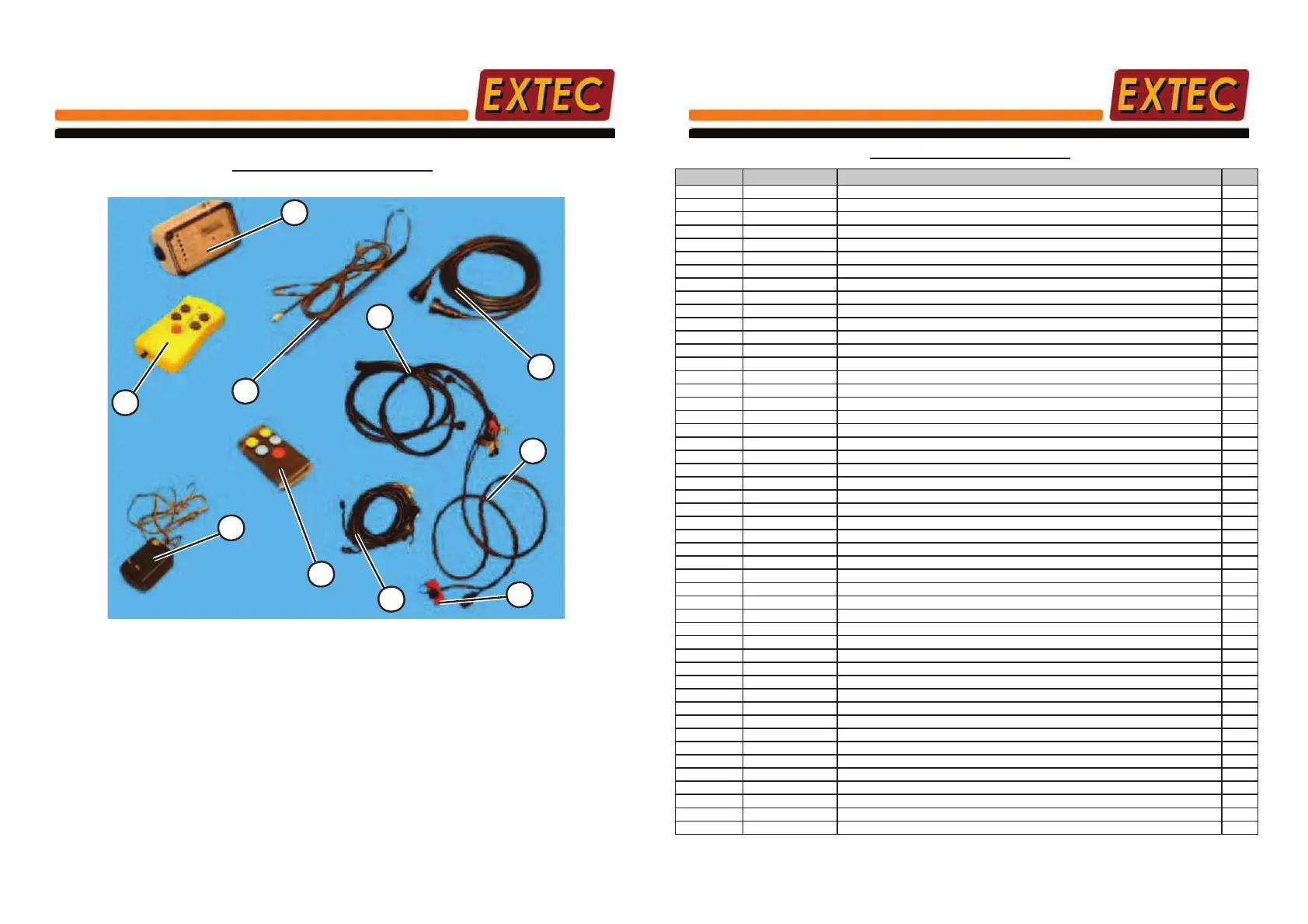

REMOTE CONTROL COMPONENTS
Appendix 2 Page50
E-7
POWERPACK ASSEMBLY
ITEM No. PART No. PART DESCRIPTION QTY
1 B7010000 FINGER SCREEN POWERPACK SIDE PROFILE 1
2 B7020000 FINGER SCREEN POWERPACK SIDE FRONT LH 1
3 B7030000 FINGER SCREEN POWERPACK SIDE REAR LH 1
4 B7040000 FINGER SCREEN POWERPACK REAR PANEL 1
5 B7050000 FINGER SCREEN POWERPACK ROOF PANEL 1
6 B7060000 FINGER SCREEN POWERPACK ROOF REAR PANEL 1
7 B7100000 FINGER SCREEN POWERPACK IGNITION DOOR 1
8 B7110000 FINGER SCREEN POWERPACK SPOOL DOOR 1
9 B7070000 FINGER SCREEN POWERPACK RADIATOR DOOR ASSY 1
10 B7080000 FINGER SCREEN POWERPACK HYD SERVICE PANEL 1
11 B7090000 FINGER SCREEN POWERPACK ENGINE SERVICE PANEL 1
12 FD1002 GAS STRUT 6
13 B6450000 S SERIES POWERPACK 6 SPOOL BRACKET - 2012 1
14 HV3022 6 STATION CONTROL BLOCK 1
15 B7170000 FINGER SCREEN POWERPACK BASE RETURN MANIFOLD 1
16 B6500000 S SERIES POWERPACK IGNITION BOX BRACKET - 2012 1
18 EN7932 THROTTLE KIT 1
19 HV2006 FLOW DIVERTER 3
20 B7130000 FINGER SCREEN POWERPACK HYDRAULIC TANK 1
21 HG1002 SIGHT GUAGE ( HYDRAULIC OIL ) 1
22 B7140000 FINGER SCREEN POWERPACK TRACK VALVE MTG PLATE 1
23 EL3001 BATTERY 1
24 EN1324 AIR FILTER 1
25 B7280000 FINGER SCREEN AIR FILTER MOUNTING BRACKET 1
26 EN1340 PRE CLEANER 1
27 B0270000 5000 THROTTLE CABLE SUPPORT BRACKET 1
28 HP1039 TANDEM PUMP 1
29 HP1044 PTO TANDEM PUMP 1
30 HP1010 SINGLE PUMP 17cc 1
31 HP6012 INLET ELBOW 1
32 HP6013 OUTLET ELBOW 1
33 HAN100006 1 1/2" FLANGE ADAPTOR 1
34 EN7794 DEUTZ ENGINE 1
35 B7220000 FINGER SCREEN POWERPACK SPOOL VALVE MOUNTING PLATE 1
36 HV1052 3 LEVER SPOOL VALVE 1
37 HV3008 CETOP 3 MANIFOLD ASSEMBLY, TIP & TRACK CONTROL 1
38 HV1045 TRACK VALVE 2
39 HF4012 HYDRAULIC OIL FILLER CAP 1
40 HF1018 RETURN FILTER 1
41 EN1504 RETURN FILTER GUAGE 1
42 HF4003 TWIST ON BREATHER 1
43 B7160000 FINGER SCREEN POWERPACK TANK RETURN MANIFOLD 1
44 B5280000 DS FULLTRAC HYDRAULIC TANK LID 1
45 B7180000 FINGER SCREEN 6 LEVER SPOOL BRACKET 2
46 HV1049 6 LEVER SPOOL VALVE 2
47 B7260000 FINGER SCREEN DIESEL TANK 1
48 B7270000 FINGER SCREEN DIESEL TANK STRAP 2
49 EN1609 FUEL FILLER CAP 1
50 HG1003 SIGHT GUAGE (DIESEL) 1
Appendix 2 Page51
