Installation manual
CNC 8035
1.
CNC CONFIGURATION
CNC structure
(SOFT M: V15.3X)
(S
OFT T: V16.3X)
·38·
1.1 CNC structure
The central unit is located on the rear of the monitor.
Keyboard auto-identification
The keyboard has an auto-identification system that updates g.m.p. CUSTOMTY (P92)
automatically.

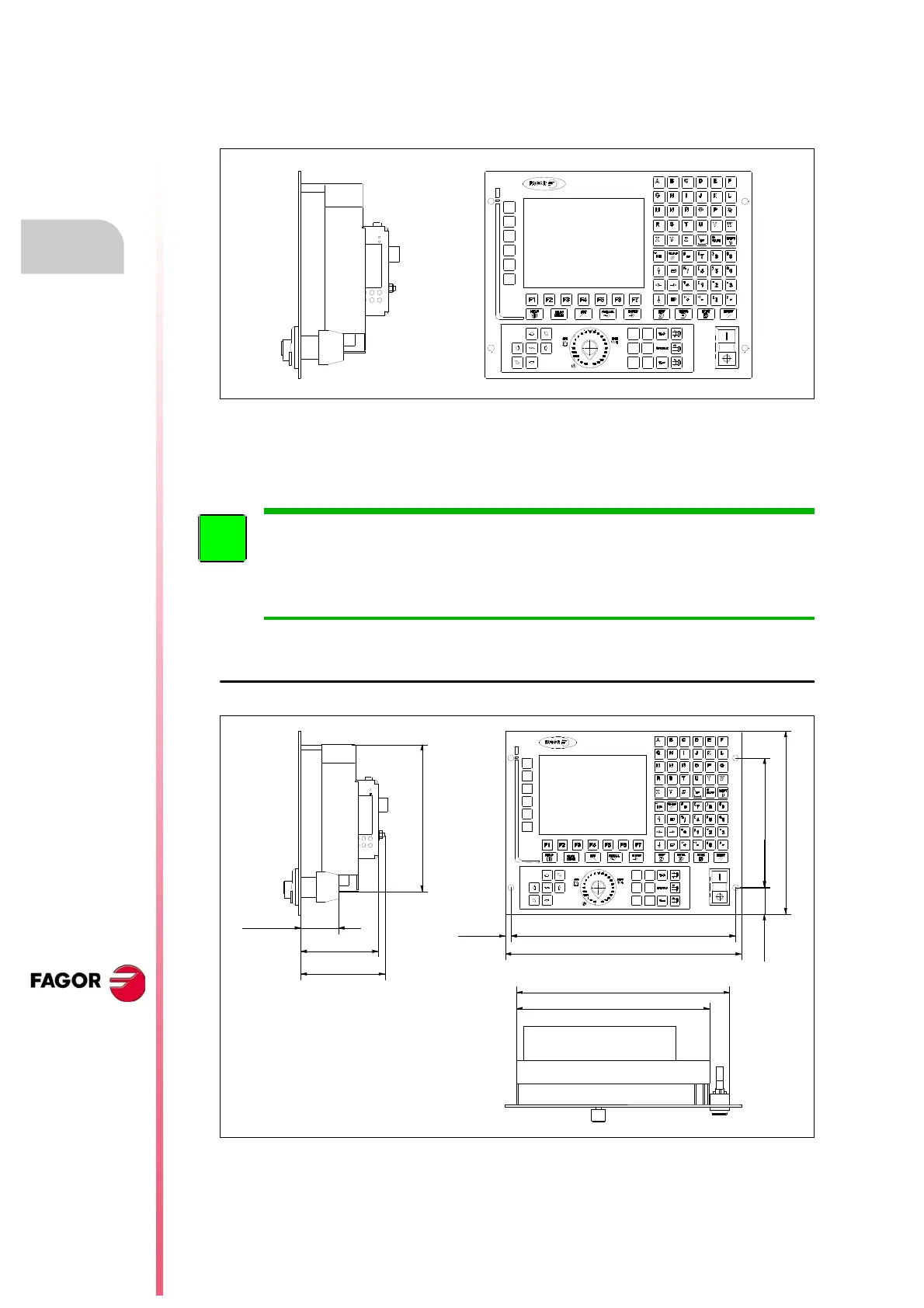

Dimensions
The auto-identification system of the keyboards is recognized from versions V9.11
and V10.11 on.
If an auto-identifying keyboard is connected to a CNC that has an older software
version, the keyboard will beep. In this case, disable the auto-identification hardware
of the keyboard by setting the identification switch to zero.
115.5 [4.54]
222.35 [8.8]
318 [12.51]
287.8 [11.3]
8.5 [0.3]
352 [13.9]
335 [13.2]
40 [1.6] 193 [7.6]
273 [10.7]
56.3 [2.21]
125 [4.92]
