FARADAY, LLC
446066 ISSUE I Rev. C PAGE 2 OF 6

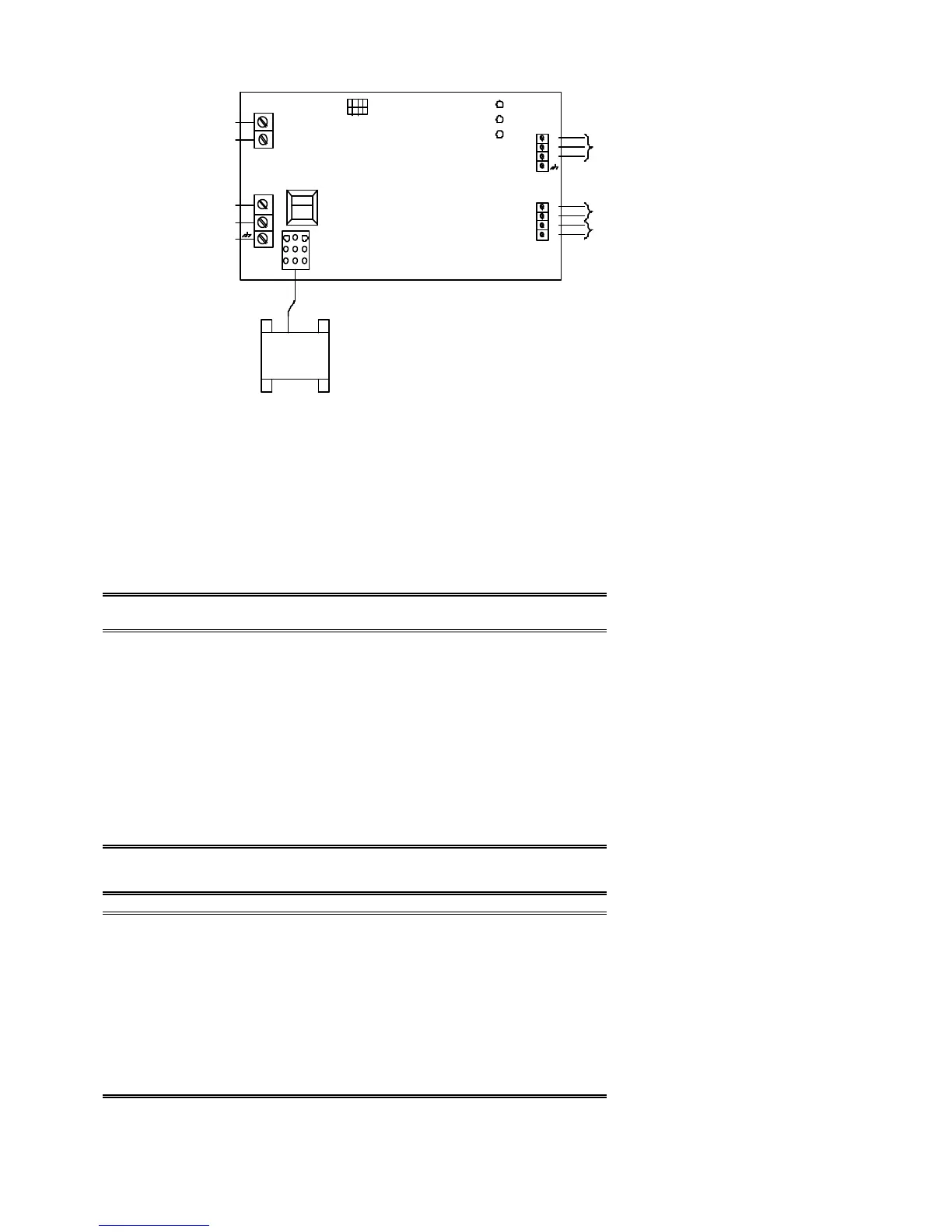

12408 WIRING
24V Battery Set
(7 to 38AH)
Supervised,
Non-Powerlimited
Input Current 6A max.
Charge Voltage 28V max.
120VAC 50/60 Hz
3A max.
or
240VAC 50/60 Hz
1.5A max.
Supervised,
Non-Powerlimited
NOTE: Branch-Current
must be porotected by a
15A overcurrent device.
Trouble Relay Contact
Rated: 3A at 30VDC/AC, resistive
For Powerlimited Source, Not supervised
Non-resettable Auxiliary Power Output, 1.5A max.
24 VDC nominal, Powerlimited, Not supervised
Non-resettable Auxiliary Power Output, 1.5A max.
24 VDC nominal, Powerlimited, Not supervised
See Installation Instructions for U.L. Listed compatible
devices.
Total current available
from all outputs:
Alarm 3A max.
Power
Battery
Ground
All wiring must be in accordance with local codes and
National Electric Code. Use only FPL, FPLR and/or
FPLP as described in Article 760 of N.E.C.
Devices for auxiliary power outputs
The following lists compatible devices for the auxiliary power outputs.
• Door Holders
• Relays
• Four-Wire (Seperately Powered) Heat & Smoke Detectors
• Notification Appliances
Door Holders
Faraday
Cat. No.
Mfg Part Number Description
R.S.G. Inc.
9552 DH-24120FC1 Door Holder
9553 DH-24120SC1 Door Holder
9554 DH-24120GC1 Door Holder
9555 DH-24120GC2 Door Holder
Edwards Co.
1501-002 1501-G1 Door Holder
1502-002 1502-G1 Door Holder
1503-002 1503-G1 Door Holder
1504-002 1504-G1 Door Holder
1505-002 1505-G1 Door Holder
1508-002 1508-G1 Door Holder
1509-002 1509-G1 Door Holder
Relays
Faraday Cat. No. Mfg Part Number Description
Faraday, LLC.
R711-1 711-1 Remote Relay Unit
Air Products &
Controls
R712-1 MR-101/C Remote Relay Unit
R712-2 MR-201/C Remote Relay Unit
R712-4 MR-104/C Remote Relay Unit
R712-8 MR-204/C Remote Relay Unit
9273 PAM-4 E.O.L. Relay
System Sensor
PM6849 A77-716B E.O.L. Relay
Notes:
1. For specific wiring and installation information, read the instructions provided with each device.
To Next Page
