12530/12540 OWNER'S MANUAL
P/N 447203 Issue I IV-8

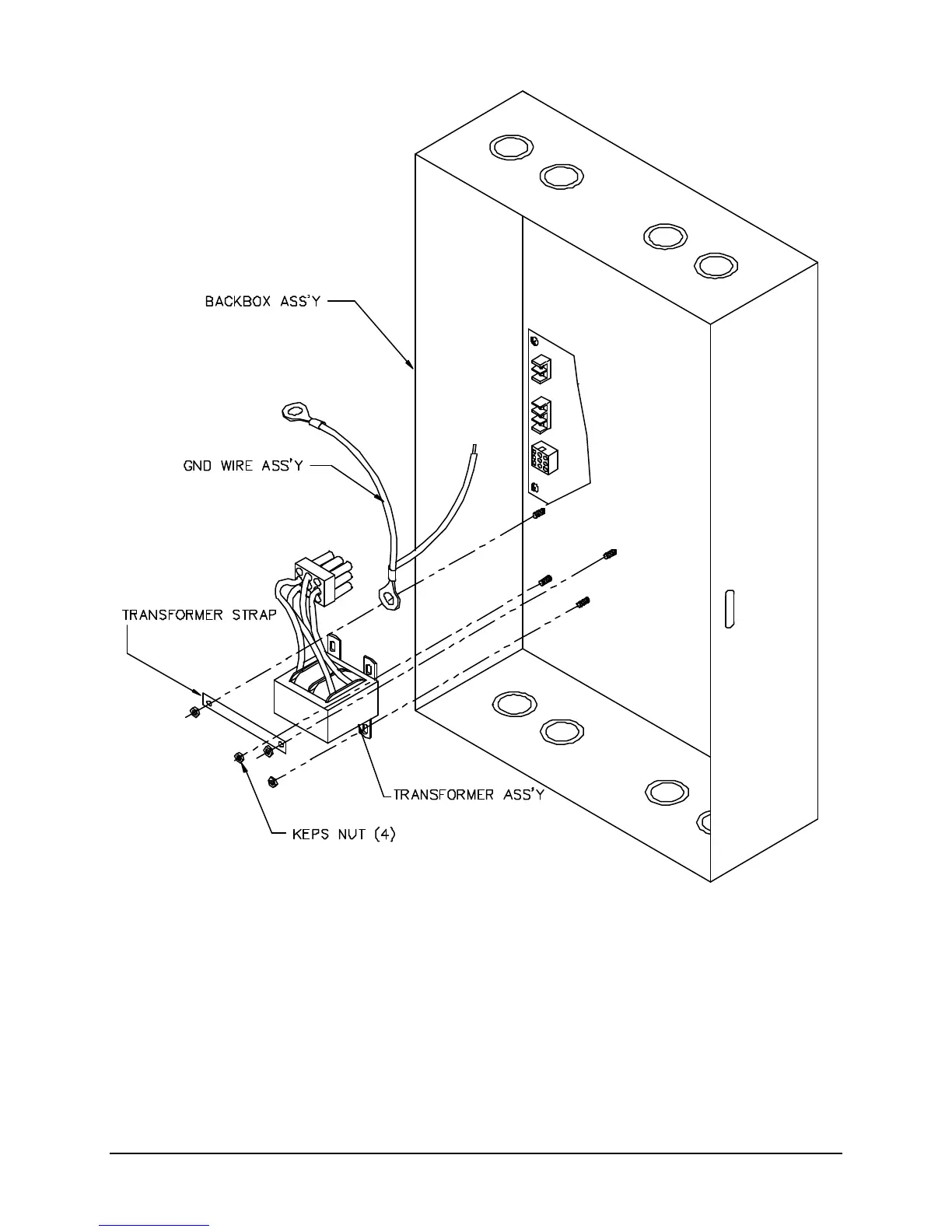

H. Transformer Mounting
1. Place Ground Wire Assembly (P/N 413394) on top left transformer mounting stud as shown.
2. Place Transformer Strap (P/N 444818) across the top transformer mounting studs and loosely place
keps nuts (P/N 18965) to secure.
3. Slide the top mounting brackets of the Transformer Assembly (P/N 413649 or 413650) under the
transformer strap with the bottom mounting brackets over the bottom studs.
4. Place keps nuts (P/N 18965) on the bottom studs. Tighten all keps nuts.
5. Plug the transformer assembly into connector P9 on the Main Termination Board.
6. Place the stripped ground wire into the ground terminal of TB4 and secure.
