12530/12540 OWNER'S MANUAL
P/N 447203 Issue I VI-4

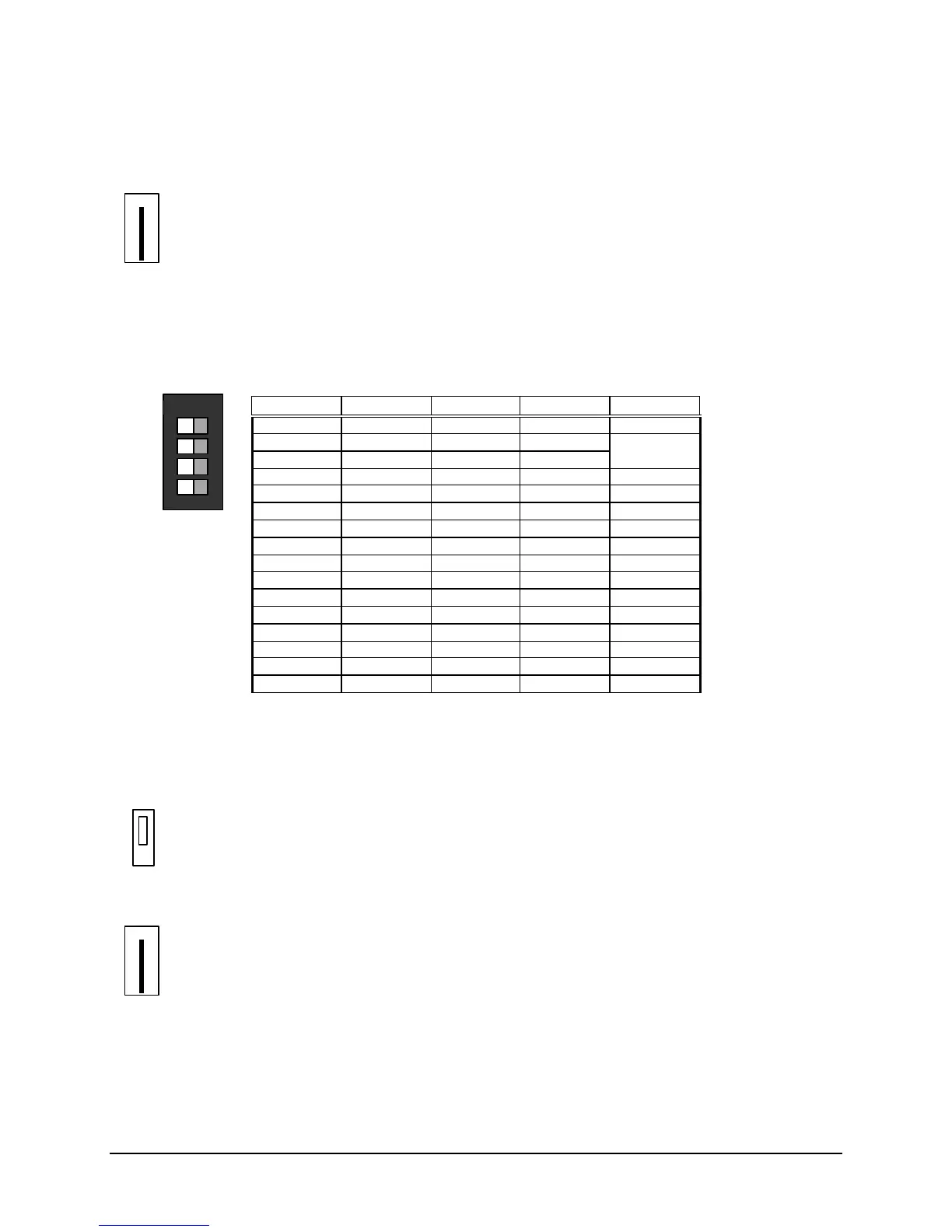

REMOTE LCD ANNUNCIATOR JUMPER
WJ1 – External Power Input (cut jumper if auxiliary power supply is used)
WJ1
REMOTE LCD ANNUNCIATOR SWITCHES
Switches are standard 4-position DIP switches. Slide the switches to the left for Off and to the right for
On. All DIP switches are factory set for off, verify proper settings for proper system operation.
SW1 – Address Selection
Address SW1-1 SW1-2 SW1-3 SW1-4
1 ON ON ON ON
2 OFF ON ON ON
3 ON OFF ON ON
4 OFF OFF ON ON
5 ON ON OFF ON
6 OFF ON OFF ON
7 ON OFF OFF ON
8 OFF OFF OFF ON
9 ON ON ON OFF
10 OFF ON ON OFF
11 ON OFF ON OFF
12 OFF OFF ON OFF
13 ON ON OFF OFF
14 OFF ON OFF OFF
15 ON OFF OFF OFF
16 OFF OFF OFF OFF
SERIAL RELAY UNIT JUMPERS
Factory setting is shown.
P6 – Buzzer Selection (Remote Processor Board)
• Local
•
• Remote
WJ1 – External Power Input (cut jumper if auxiliary power supply is used) (Remote Processor Board)
WJ1
