12530/12540 OWNER'S MANUAL
P/N 447203 Issue I IV-10

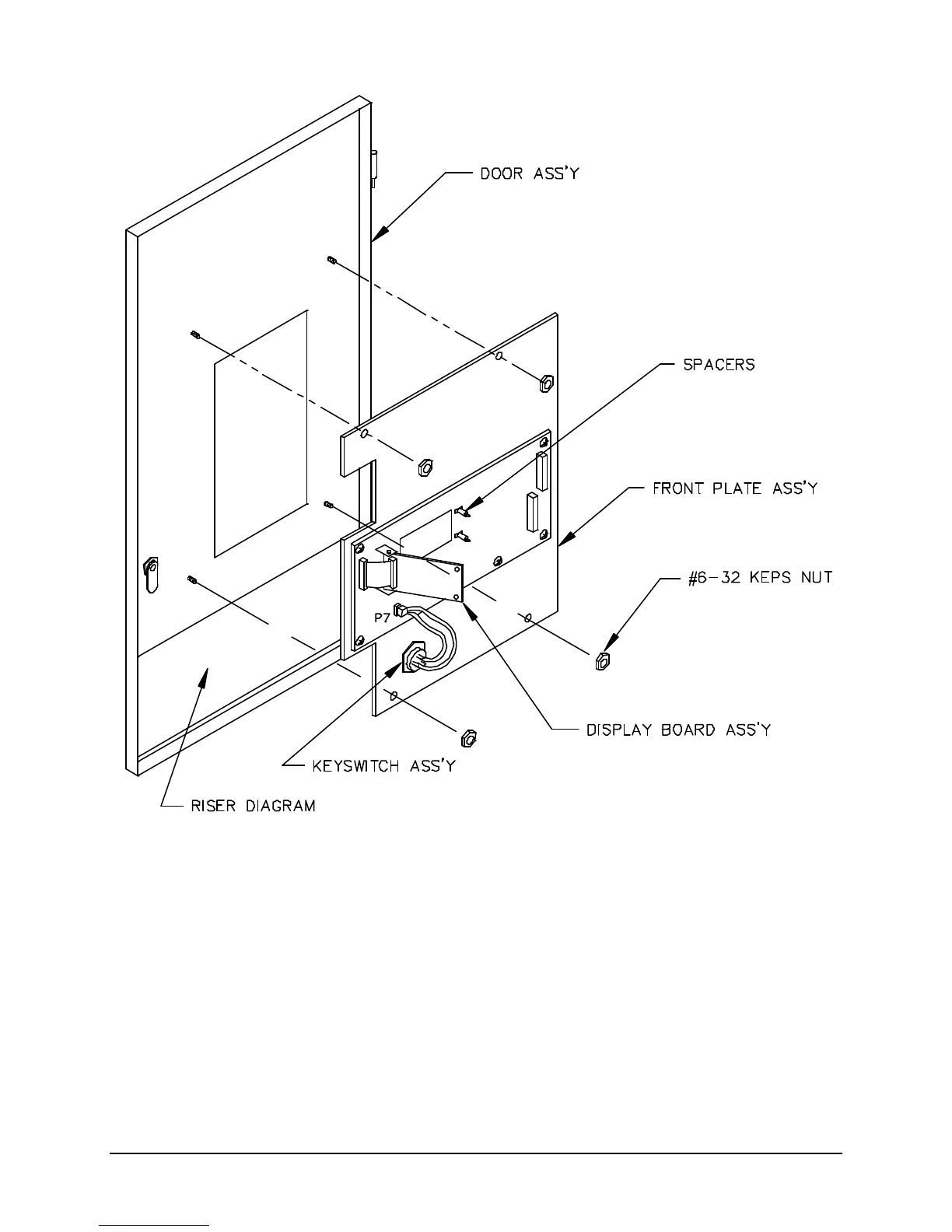

J. Front Plate Mounting
1. Secure the Front Plate Assembly to Door Assembly using four #6-32 keps nuts (P/N 18965).
2. Place the Keyswitch Assembly (P/N 413751) into the hole in the lower right corner of the Front Plate
Assembly. Secure with the attached nut and plug connector into P7 on the Main Logic Board.
3. Plug two Plastic Spacers (P/N 944023) into the holes at the right side of the display opening.
To Next Page
