12530/12540 OWNER'S MANUAL
P/N 447203 Issue I IV-6
E. Knock-Outs
1. Prepare the enclosure for electrical wiring, break out the appropriate conduit entry points. Note the
wiring diagram requirements for non-power limited and power limited wiring separation.
2. Attach conduit (if required) and run wires as required. Label each field cable for future reference.

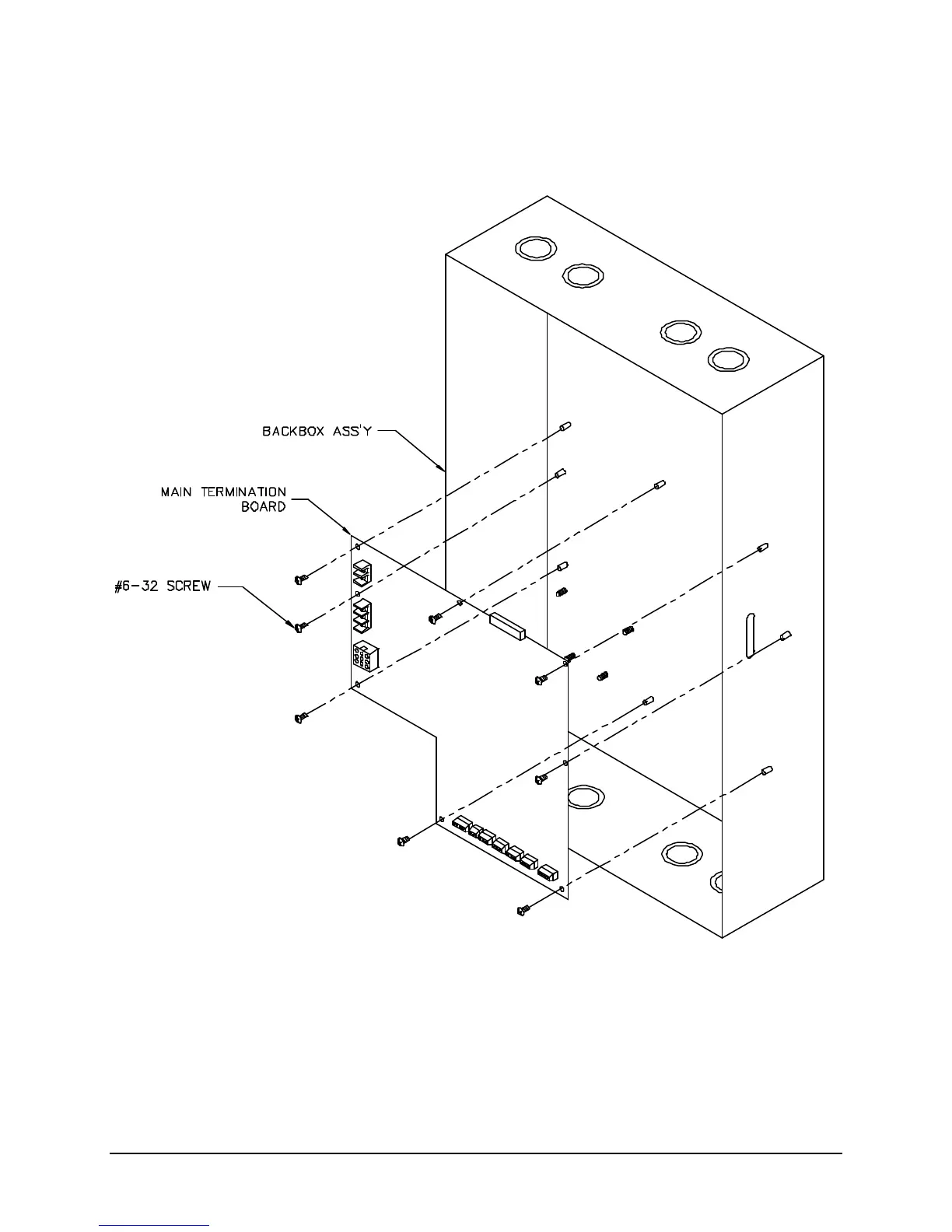

F. Main Termination Board Installation
1. Secure the board to the back of enclosure using eight of the provided #6-32 x 1/4 screws (P/N 29529-
11).
