DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 52
.
Step
Procedure
7

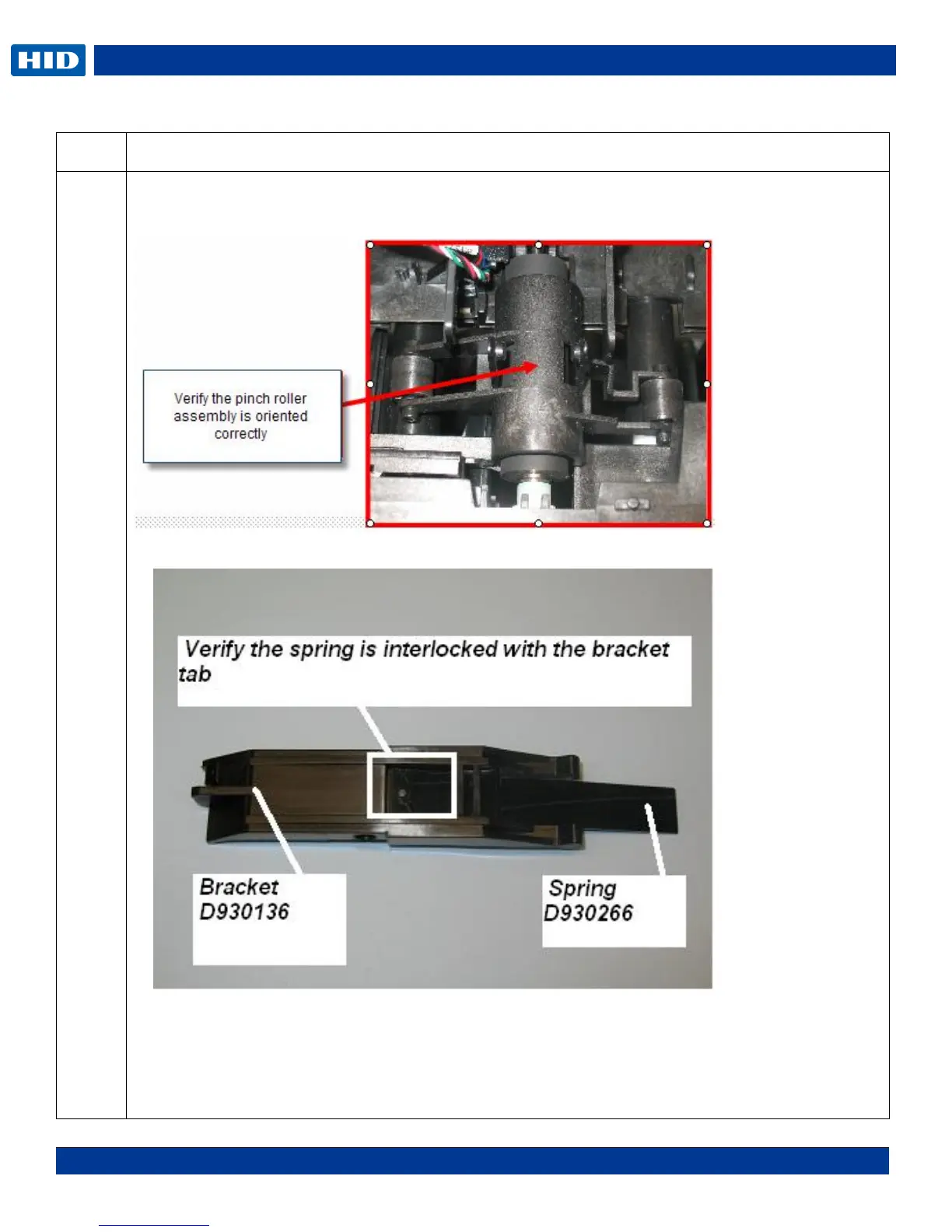

To reinstall the Pinch Roller Assembly:
a. Verify orientation of the Pinch Roller Assembly
b. Connect the spring to the bracket.
Continued next page
c. Insert the Bracket tabs into the holes provided in the sideplate frame.
(continued on next page)
