REAR CONNECTIONS (CONTROL VERSION & SPRAY)
The Jackal Spray Controller harness comes pre-terminated for ease of install and convenience.
The following table outlines the pre-termination of this cable.
A
BOTTOM ROW (GREEN PLUG)
B
TOP ROW (GREY PLUG)
A1
INPUT 1 / NOT USED
B1
GROUND / GPS PIN 5
A2
INPUT 2 / FLOW SENSOR
B2
INPUT 7 / NOT USED
A3
INPUT 3 / TANK LEVEL SENSOR
B3
INPUT 8 / NOT USED
A4
INPUT 4 / WHEEL SENSOR
B4
INPUT 9 / NOT USED
A5
INPUT 5 / NOT USED
B5
+12v OUT / COMMON SENSOR POWER
A6
INPUT 6 / PRESSURE SENSOR
B6
OUT 6 / DUMP VALVE
A7
COMMON SENSOR GROUND
B7
OUT 5 / SECTION 3
A8
OUT 2 / MASTER MOTOR -
B8
OUT 4 / SECTION 2
A9
OUT 1 / MASTER MOTOR +
B9
OUT 3 / SECTION 1
A10
+12v IN / +12V BATTERY
B10
RS232 TX
A11
-Ve IN / BATTERY GROUND
B11
RS232 RX
Notes as below:
• The Jackal sprayer harness is wired to suit the Farmscan control valve bank (see below)
• The Jackal Harness comes pre-terminated with Packard plugs & Pins
o Adapter cables maybe purchased or included with some kits (Page7)
• This cable can be modified for different valve bank assemblies.
• Please refer to your implement supplier or auto electrician to determine the current requirement and wiring
if you are not using a Farmscan control valve bank.
• The Jackal controller should only be connected directly to 3-wire motorised valves.
• If you are connecting to a 2 Wire section valve (E.g., Arag or Hardi) you will require a 2-3 Wire Converter
(Farmscan Part Number A-2091) These are available to order at an additional cost.

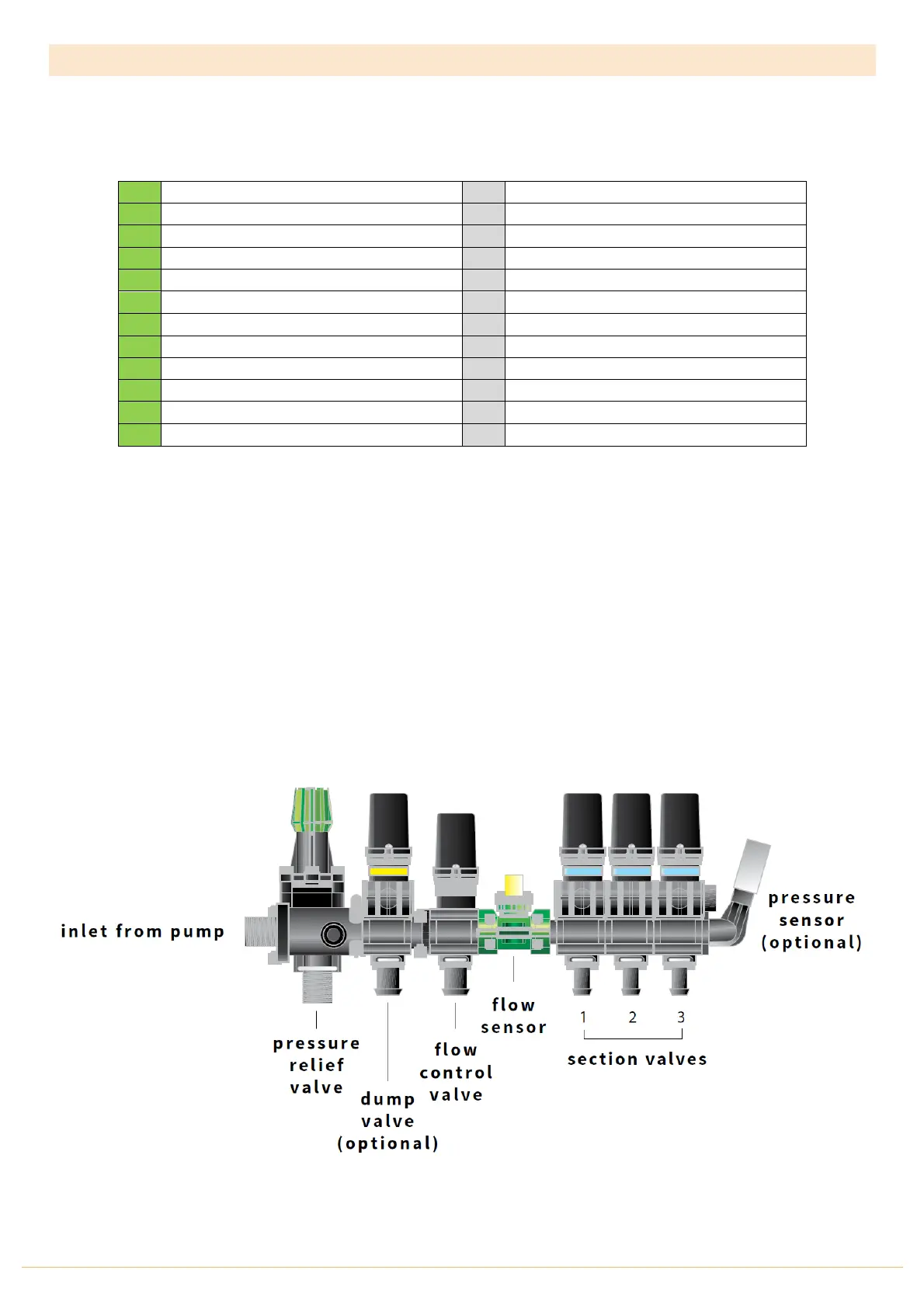

Example – Farmscan 3 Section Valve Bank
(Farmscan Part Number AA-AF-CONTROL/3 or /3-D with Dump)
