AM-JACKAL-35 / JULY 2020
IMPLEMENT/SECTION HARNESS (CONTROL VERSION & SPRAY)

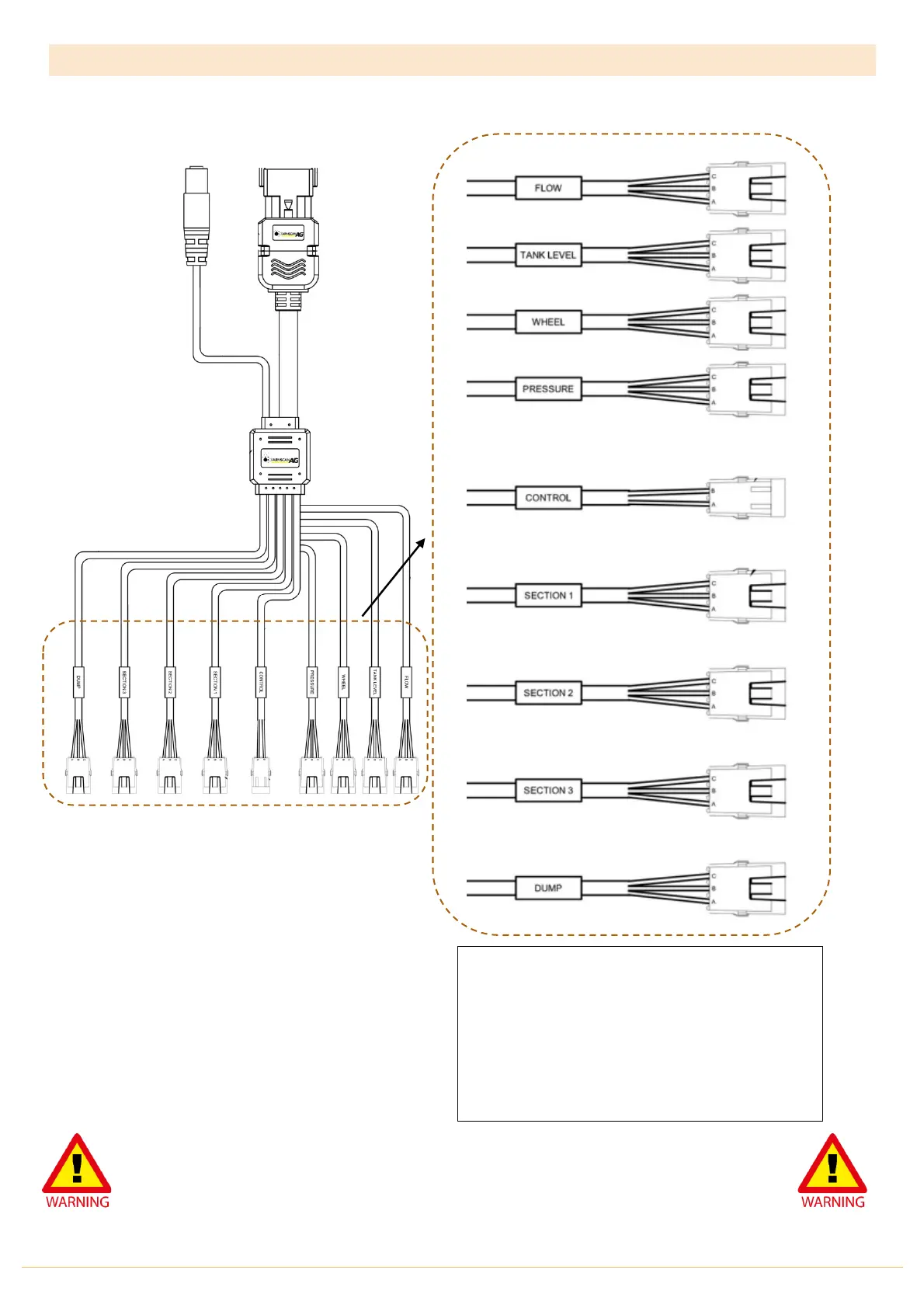

Overview of Implement/Section Harness as below
Connect to implement as required. Unused connectors and wires should be taped back to
avoid weather corrosion or accidental shorting and damage.
NB: All Red Wires are +12v (live when Jackal is on) – DO NOT SHORT
Jackal Implement
& Sectional
Harness
Part #
AC-4501/S
The Jackal Implement Harness allows for the
following connections
• Sections 1-3 (3 Wire)
• Flow Control Valve (2 Wire)
• Dump (Optional)
• Pressure
• Wheel Input (Speed)
• Tank Level Sensor
• Flow Meter (3 Wire)
NB: The Jackal harness comes pre-terminated
with Packard’s. Kits purchased directly may
include adapters as below.
Packard Adapters are as follows:
• AC-7722 – Packard to Flow Control
• AC-7721 – Packard to Section Valves
