Proteus A3/125 Technical Service Manual Revised 09.15.11
11

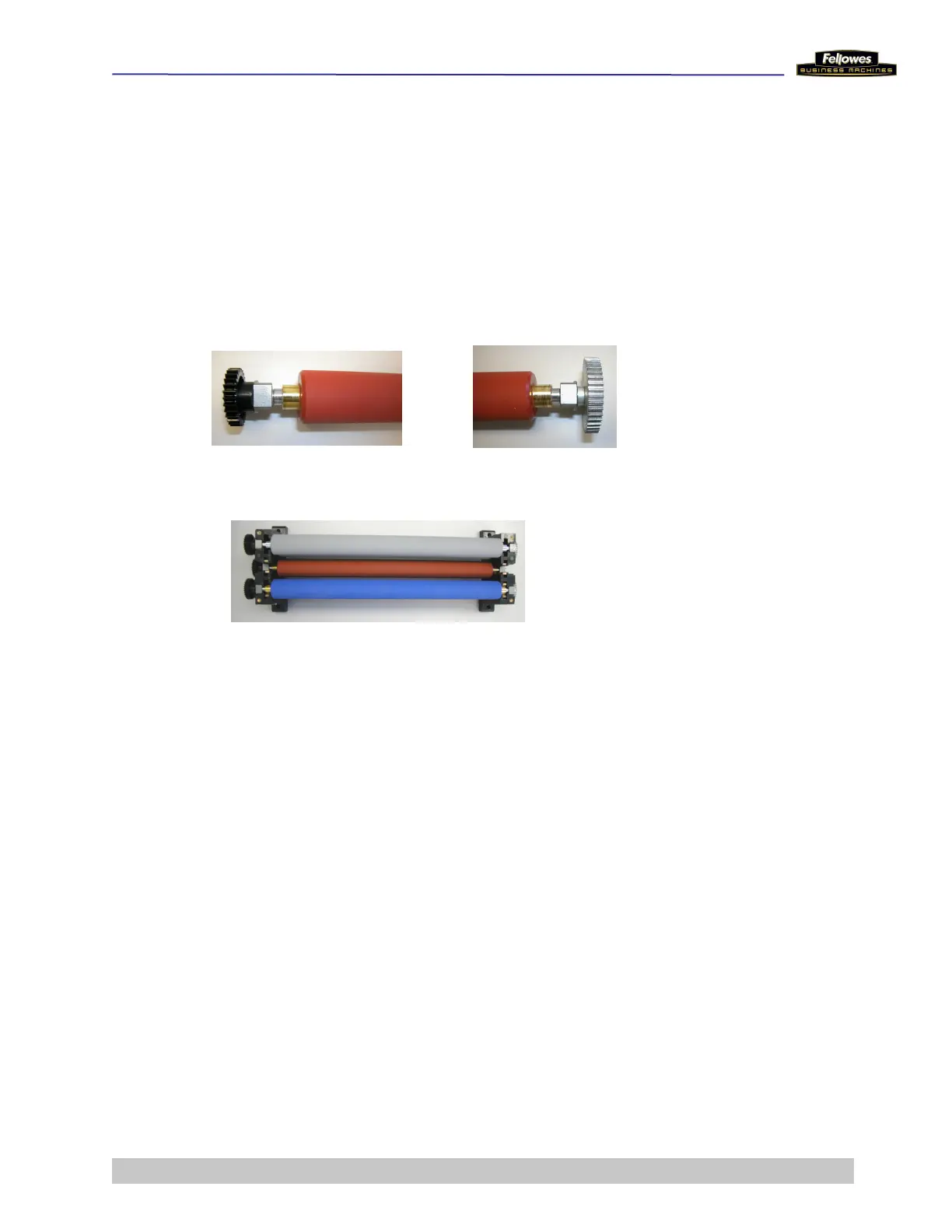

4 Remove the E-clip on the ends of each Roller.
Note: The upper red Roller has 2 bushings, 1 metal gear,
and 1 PVC Gear. The lower red Roller has 2 bushings and
1 PVC gear.
5 Replace lower red Roller.
Note: Make sure the PVC gear is on the left end (away
from the motor) and that the at side of the Roller bushings
is facing up.
6 Replace the upper red Roller.
Note: Make sure the PVC gear is on the left end (away
from the motor) and that the at side of the Roller bushings
is facing up.
7 Replace the Side Panel Covers and secure with
2 screws each.
