Fellowes Proteus A3/125 - Remove;Replace Motor Gear with Wrench Bolt

Revised 09.15.11 Proteus A3/125 Technical Service Manual
24

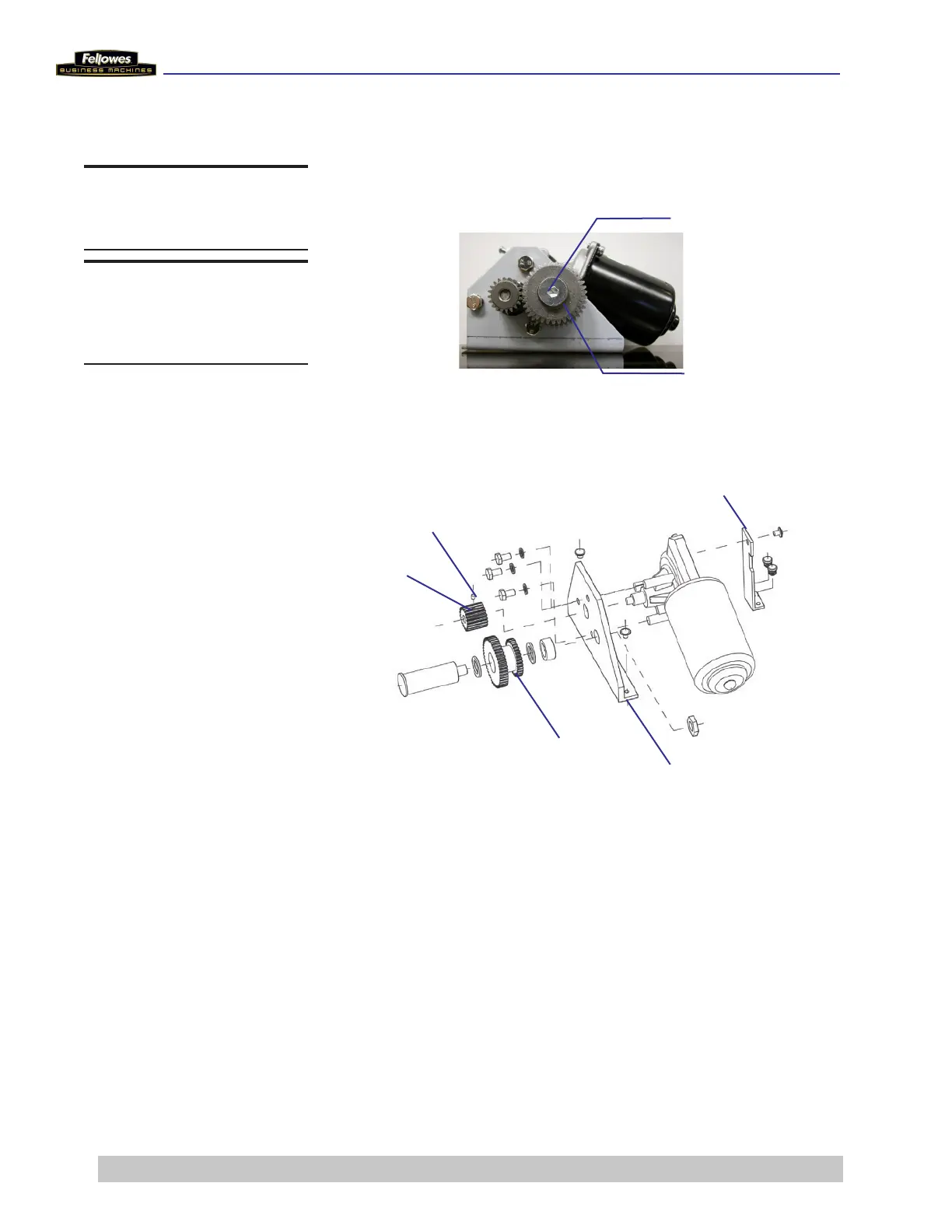

Remove/Replace Motor Gear with
Wrench Bolt
1 Remove the Allen-head screw from the Motor
Double Gear.
2 Loosen the Wrench Bolt and remove the Motor
Gear.
Allen Head Screw
Motor Double Gear
Wrench Bolt
Motor Fixing Mat
Motor/Gear Fixing Mat
Motor Double Gear
Motor Gear
DO THIS FIRST
Remove Roller Assembly
TOOLS
Phillips screwdriver
Allen wrench
