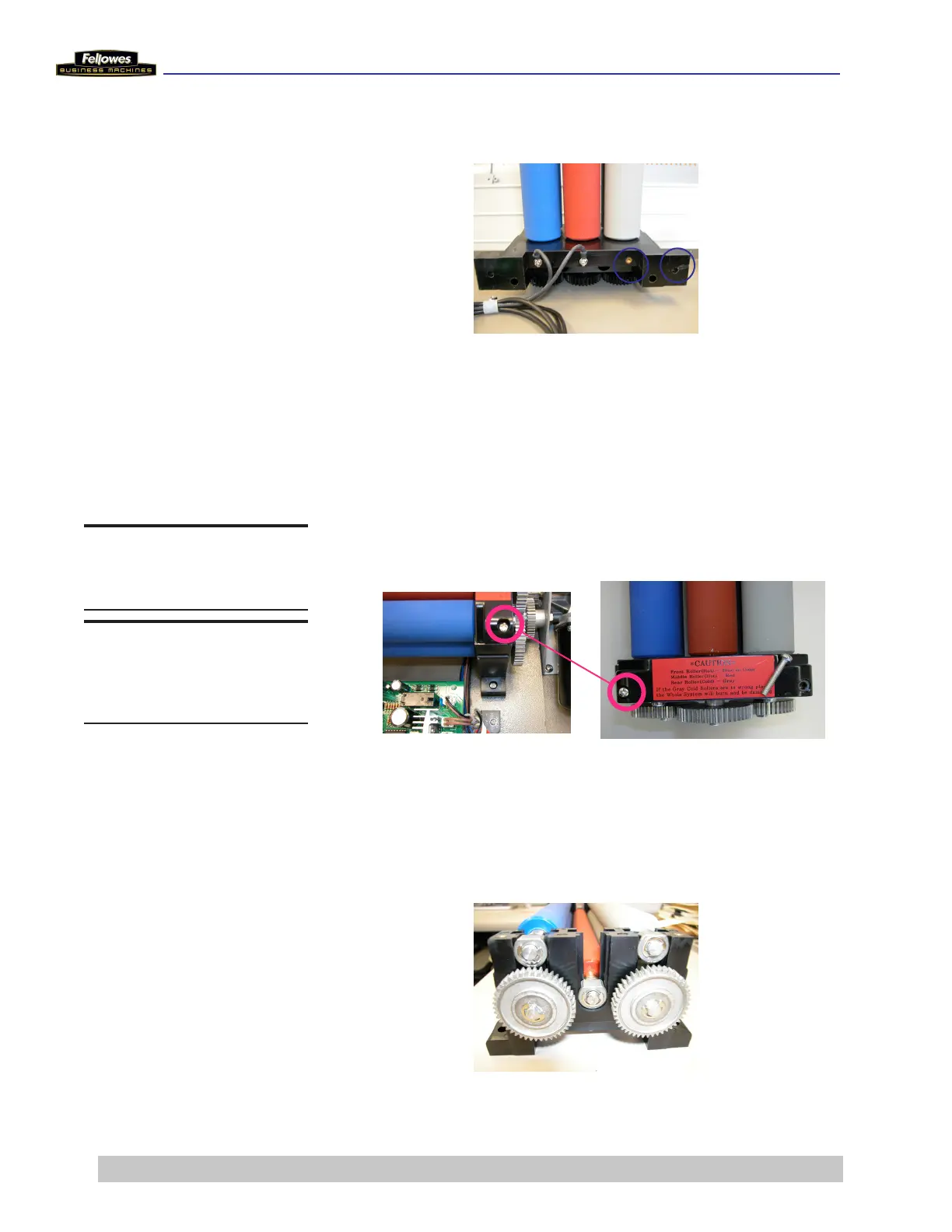

4 Remove the 2 screws that hold the power wires to the
assembly.
Note: Wires are connected only to blue and red rollers. No
wire is connected to the gray roller
Remove/Replace Hot Rollers (Red)
Caution: The Hot Rollers (Red) must be in the middle position.
1 Remove the 2 screws each from the right and left Roller
Press Side Panel Covers.
2 Carefully remove Side Panel Covers.
Note: The Covers are spring loaded.
3 Lift the upper red Hot Roller up and out, then lift the
lower red Roller.
DO THIS FIRST
Remove Housing Covers
TOOLS
Phillips screwdriver
E-clip pliers
To Next Page
