Fellowes Proteus A3/125 - Remove;Replace Cold Roller (Gray)

Proteus A3/125 Technical Service Manual Revised 09.15.11
13
DO THIS FIRST
Remove Housing Cover
TOOLS
Phillips screwdriver
E-clip pliers
7 Replace the upper blue Roller.
Note: Make sure the PVC gear is on the left end (away
from the motor) and that the at side of the Roller bushings
is facing up.
8 Replace the upper red Roller.
9 Replace the Side Panel Covers and secure with
2 screws each.
Note: Make sure the Rollers are level. The Panel Covers
are spring loaded and can push the Rollers out of
alignment.
Remove/Replace Cold Roller (Gray)
Caution: The Cold Rollers (Gray) must be in the rear
position. If the gray Cold Rollers are in the wrong
position, the system will burn and be damaged.

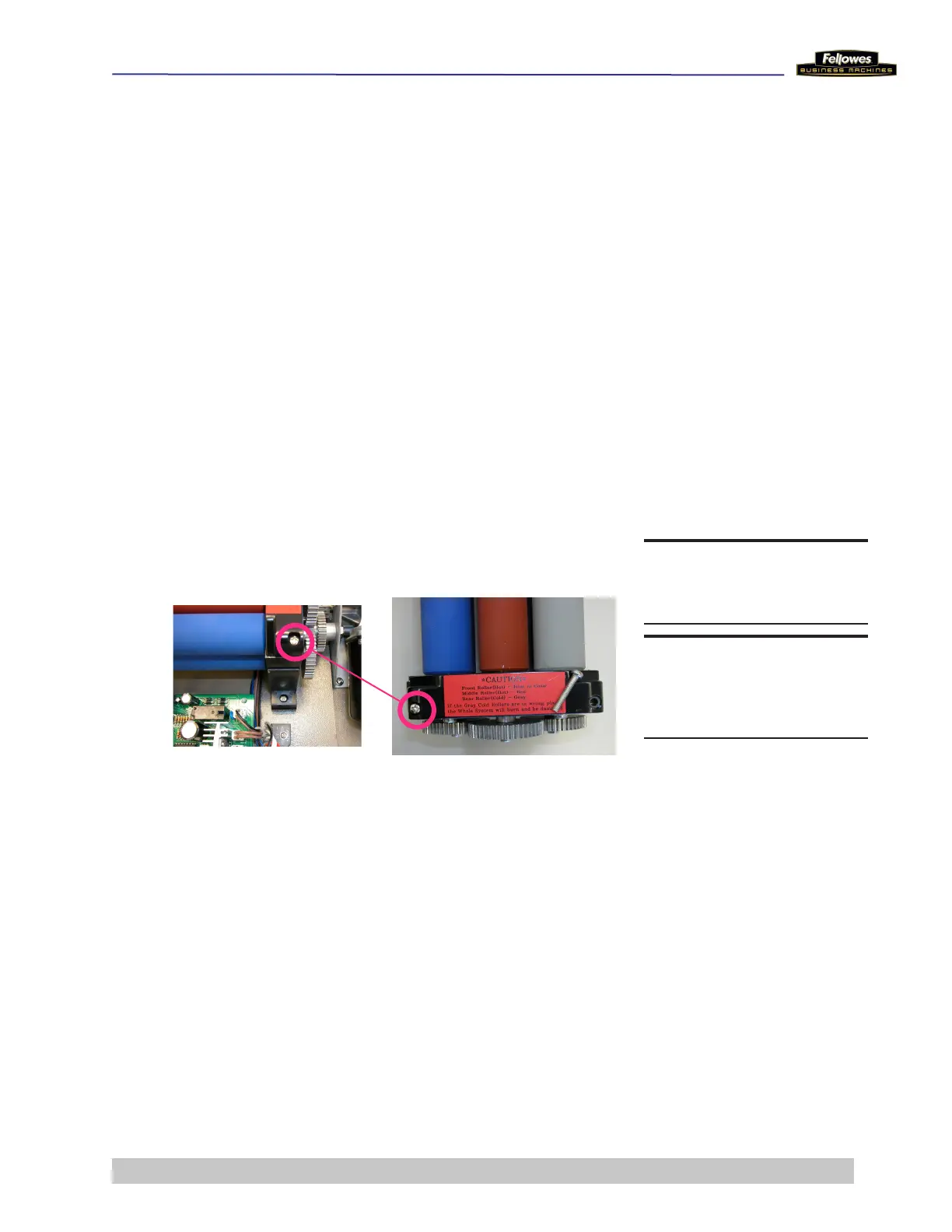

1 Remove the 2 screws each from the right and left Roller
Press Side Panel Covers.
2 Carefully remove Side Panel Covers.
Note: The Covers are spring loaded.
3 Remove the upper red Hot Roller up and out.
4 Lift the upper gray Cold Roller up and out, and then lift
the lower gray Roller.
5 Remove the E-clip on the ends of each gray Roller.
Note: The upper gray Roller has 2 bushings and 1 PVC
gear. The lower gray Roller has 2 bushings, 1 metal gear,
and 1 PVC gear.
