Proteus A3/125 Technical Service Manual Revised 09.15.11
19

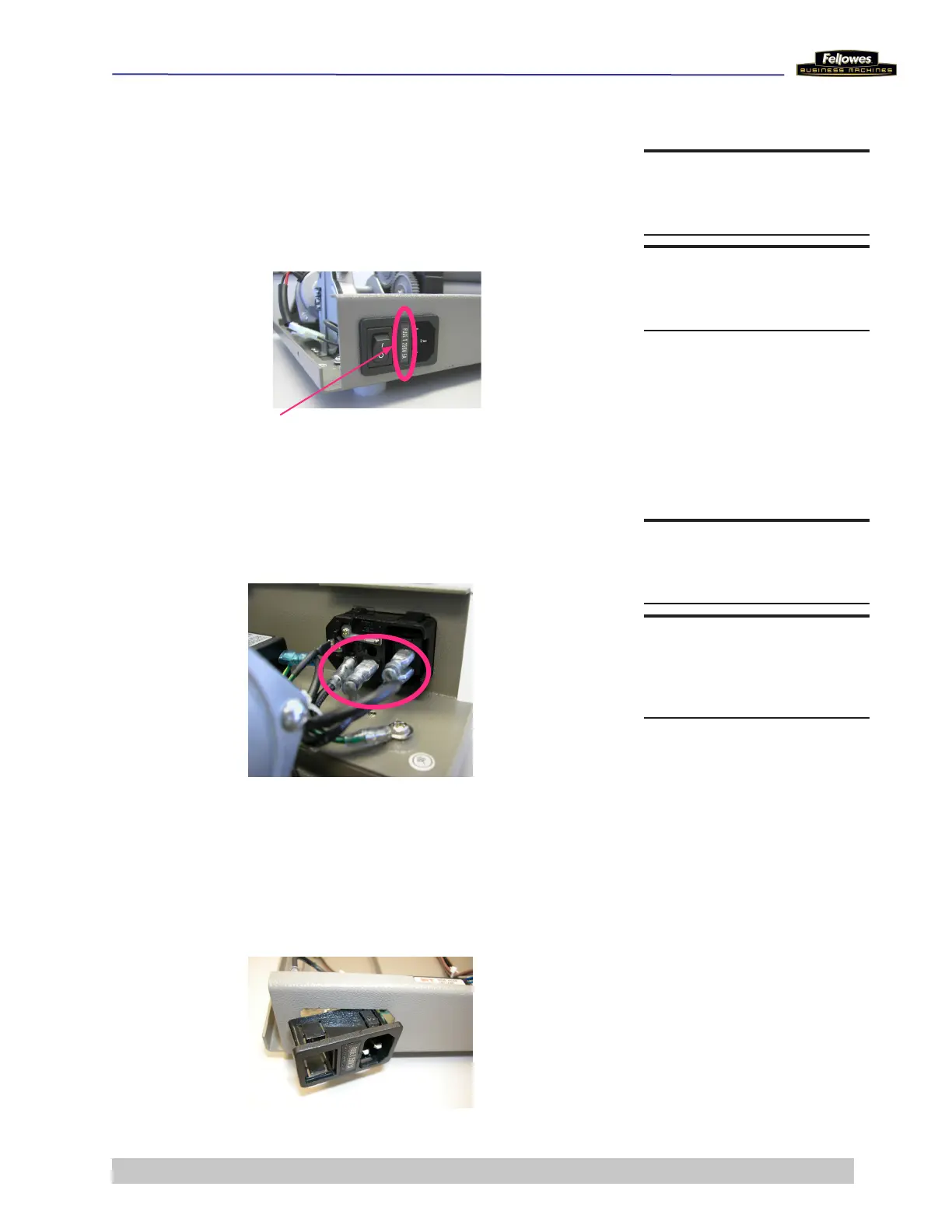

Replace Fuse
1 Open the fuse holder with the screwdriver blade
2 Insert a new fuse
3 Replace the holder into the laminator
Remove/Replace Cord Socket
1 Disconnect 2 power wires from the Power Switch.
2 Disconnect 2 power wires from the Cord Socket.
3 Disconnect the grounding wire from Noise Filter (center
connector).
4 Remove the screw from the grounding wire.
5 Press down on 4 locking tabs on the Cord Socket and
push the Socket out.
DO THIS FIRST
Unplug the Laminator
TOOLS
Flathead screwdriver
DO THIS FIRST
Remove Housing Cover
TOOLS
Long nose pliers
Phillips screwdriver
To Next Page
