1 Introduction to the CV-6SLX
1.1 Product Description
The Temescal Model CV-6SLX is a 6-kW, constant voltage, high-frequency, switching electron
beam power supply. The CV-6SLX is compatible with sources featuring either permanent-magnet
or electromagnetic deflection. The power supply delivers up to 10 kV at 600 mA, making it
possible to achieve substantial deposition rates in production environments. The CV-6SLX
provides stable output at all voltage levels, rapid arc recovery, ease of integration, and safety
and convenience for operating as well as service personnel.
The main components of CV-6SLX units are the HVPS (see Figure 1-1), the filament power
supply (see Figure 1-2), and the control and high-voltage cables required to connect these
components to each other and to the system’s control computer.
NOTE
In systems without a PLC-based system controller, a TemEBeam
TM
Controller (see Figure 1-3 is a
required accessory for the CV-6SLX. For additional information about the EBC, see section 1.5.
1.2 CV-6SLX HVPS Description and Specifications
Figure 1-1 shows the front panel of the CV-6SLX power module, or HVPS. For a description of its
control and display features, see sections 3.2 and 5.2. For installation instructions, see section
2.3.

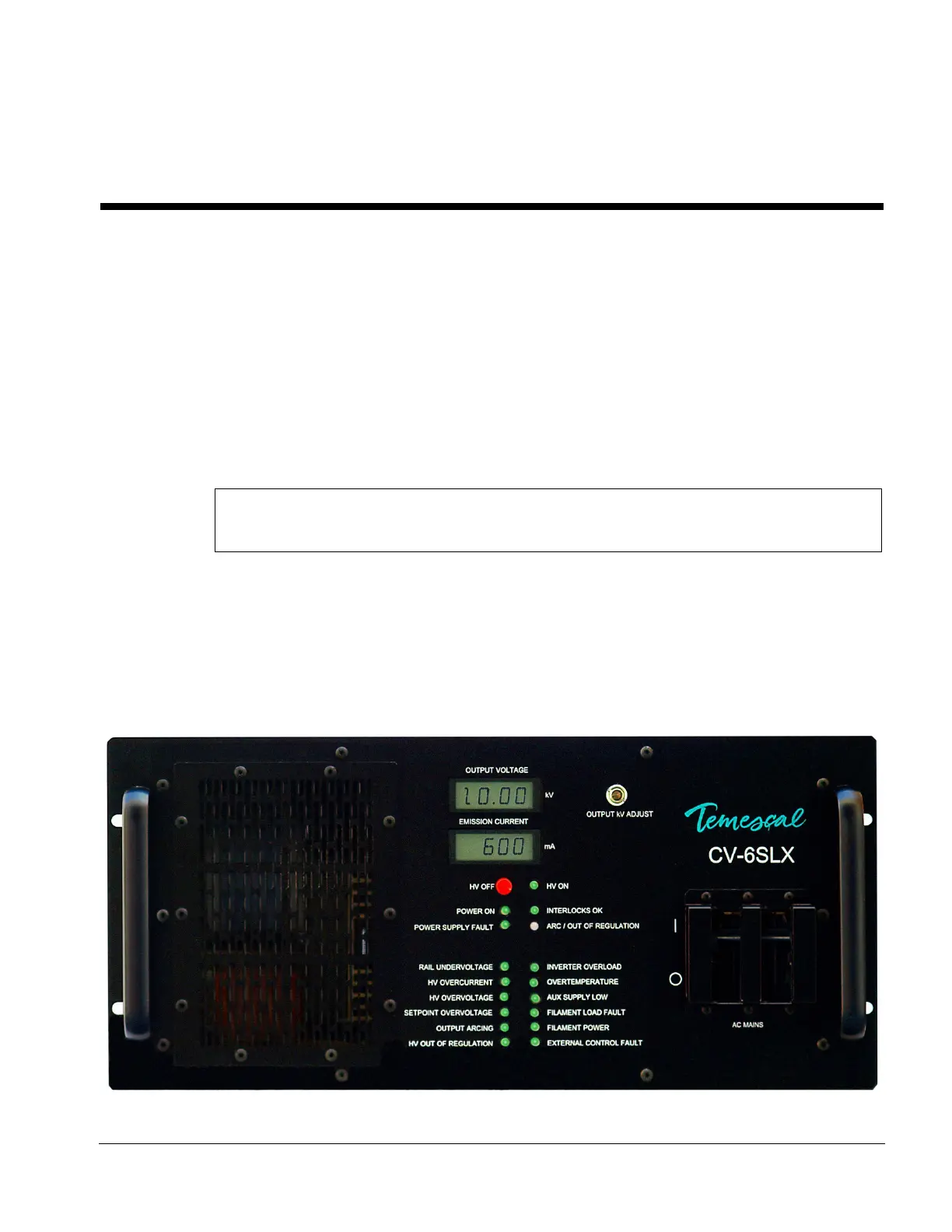

Figure 1-1 CV-6SLX HVPS Front Panel
