Section 2: Installation 2.6 Cable Installation
0101-8242-0, Rev. C 2-9 CV-6SLX User Manual
Connecting the FPS Input Power Cable(s) (PN 6622-0100-20)
An FPS power cable (PN 6622-0100-20) is provided for each FPS. Plug one end of this cable
into HVPS rear panel connector J1 (see Figure 2-4) and the other end into the power
receptacle on the FPS front panel (see Figure Figure 2-8).
CAUTION
Make sure that the ON/OFF switch on the FPS front panel (see Figure 2-8)
remains in the OFF position throughout the installation procedure.

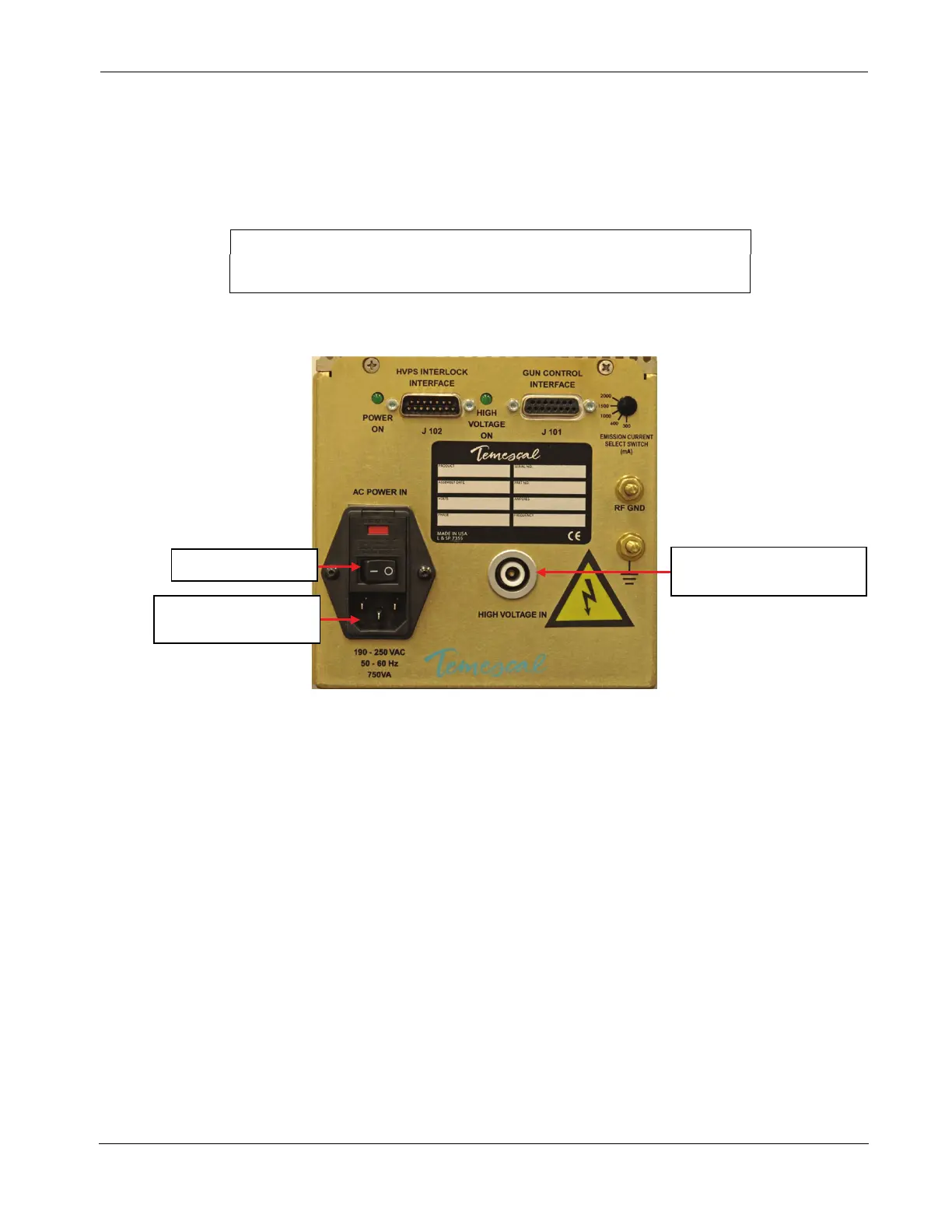

Figure 2-8 Input Power and HV Connections on FPS Front Panel
2.6.2 Connecting the HV Coaxial Cable(s) (PN 0620-8684-1)
The HV coaxial cable (PN 0620-8684-1) conducts the high voltage output of the power module
to the FPS module(s). Plug one end of this HV cable into HVPS rear panel connector J7 (see
Figure 2-4). Connect the other end of the HV cable to the HIGH VOLTAGE IN connector on the
FPS front panel (see Figure 2-8).
2.6.3 Connecting the HV Output Conduit(s) (PN 0620-9654-1)
The cables that conduct the high voltage from the FPS to the source tray are contained in a
length of flexible conduit. The part number of the HV cable/conduit assembly is 0620-9654-1.
Connecting the HV Output Cables and Conduit to the FPS
Connect the HV cable/conduit assembly to the FPS rear panel (see Figure 2-9), following the
procedure described below.
Plug 208-V power cable
(PN 6622-0100-20) in here.
Plug one end of HV coaxial
cable (PN 0620-8684-1) in here.
FPS ON/OFF Switch
