Section 1: Introduction to the CV-6SLX 1.5 Miscellaneous Hardware and Interconnection Cables
0101-8242-0, Rev. C 1-3 CV-6SLX User Manual
For FPS installation instructions, see section 2.4. For a description of the switches and LEDs on
the FPS front panel, see section 3.3.
FPS Specifications
Dimensions: 6.5 in. H × 6.5 in. W × 11 in. D
Weight: 14 lbs.
Input Power: 208 V ac ±10%, 3.5 A, 50/60 Hz, single-phase
Power Output: 10 V ac, 50 A, 28.5 kHz (max.), single-phase
1.4 Miscellaneous Hardware and Interconnection Cables
For a complete list of the components and cables included with the CV-6SLX, see section 2.2.
1.5 TemEBeam Controller (EBC)
In systems without a PLC-based system controller, the TemEBeam Controller (see Figure 1-3)
provides the sole means of controlling the e-beam power supply. An EBC is therefore a required
accessory for the CV-6SLX in such systems. For detailed information about controlling the CV-
6SLX from the EBC, see section 3.5 of this manual. For complete information about installing
and operating the EBC see the EBC manual (PN 101-9028-0).

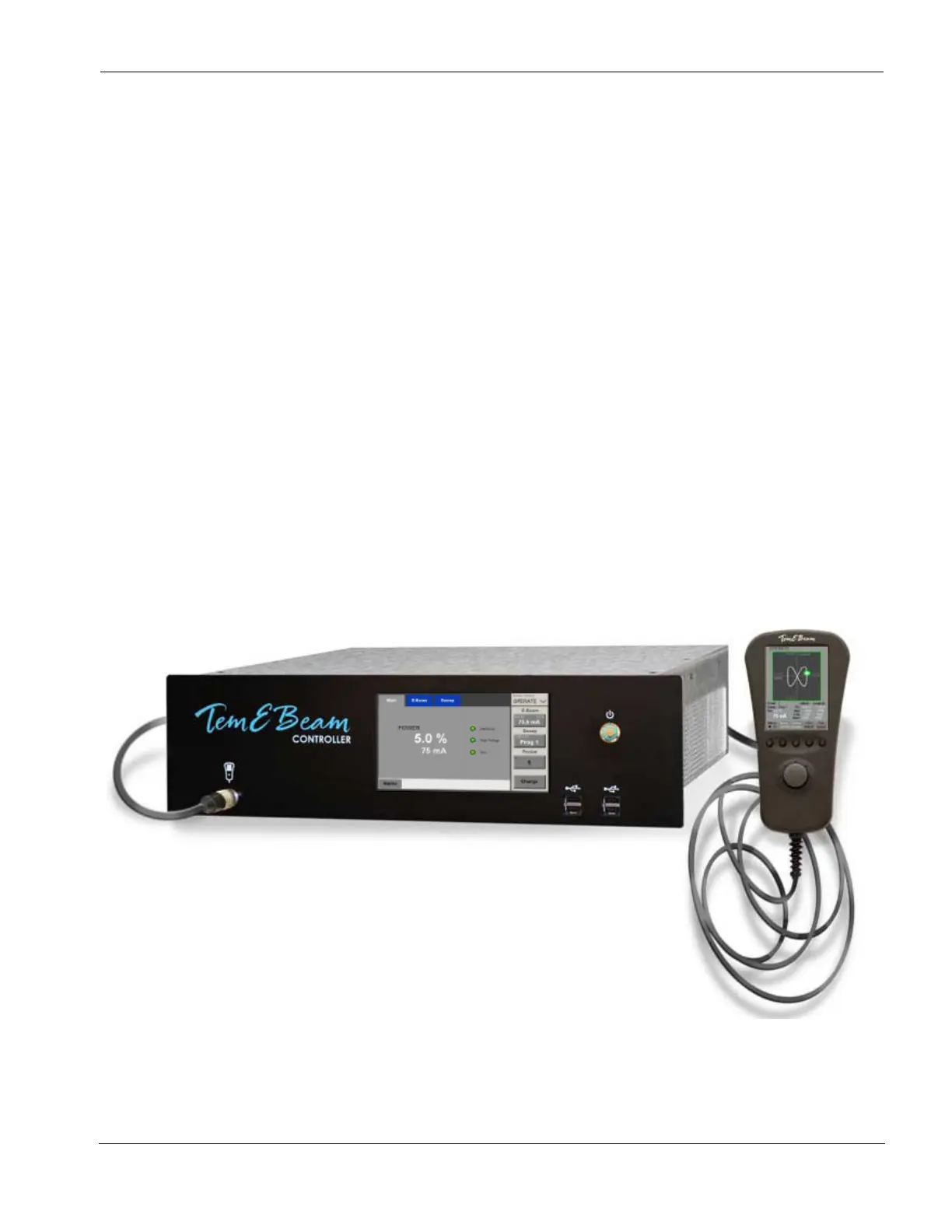

Figure 1-3 EBC Main Control Unit and Hand-Held Controller
