ferrotec Temescal CV-6SLX User Manual

3.3 Switches and LEDs on the FPS Front Panel Section 3: Power Supply Operation
CV-6SLX User Manual 0101-8242-0, Rev. C
3-2
3.2.2 HVPS Front Panel Indicators
Display Meters
• Output Voltage meter (0–10 kV)
• Emission Current meter (0–600 mA)
Status LEDs
• Power ON LED. Turns green to indicate that the HVPS is powered up.
• HV ON LED. Lights yellow when HVPS is powered up but HV is OFF. Turns green when the
HV is switched on.
Fault Indicator LEDs
For detailed information about fault indicator LEDs, see sections 5.2.2 and 5.2.3.
3.3 Switches and LEDs on the FPS Front Panel
Figure 3-2 shows the switches and LEDs on the FPS front panel.

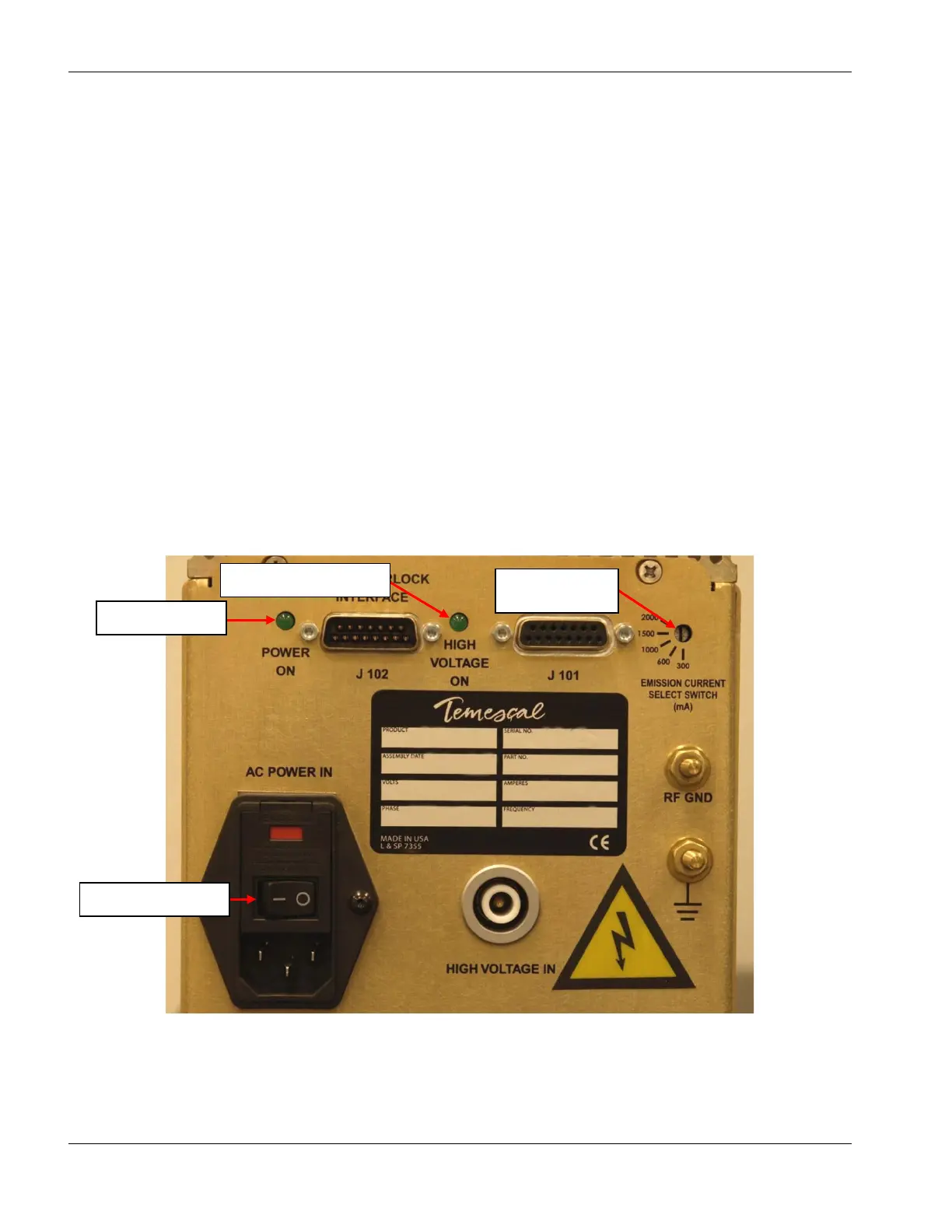

Figure 3-2 Filament Power Supply Front Panel
The switches and indicators on the FPS front panel are:
• Power ON/Off switch: Must be switched ON in order for unit to operate.
• POWER ON LED: When lit, indicates that the HVPS and the FPS are both powered up.
Power ON/OFF Switch
HIGH VOLTAGE ON LED
Emission Current
Selection Switch
POWER ON LED
