5.5 FPS Fuse Replacement Procedure Section 5: Troubleshooting
CV-6SLX User Manual 5-30 0101-8242-0, Rev. C

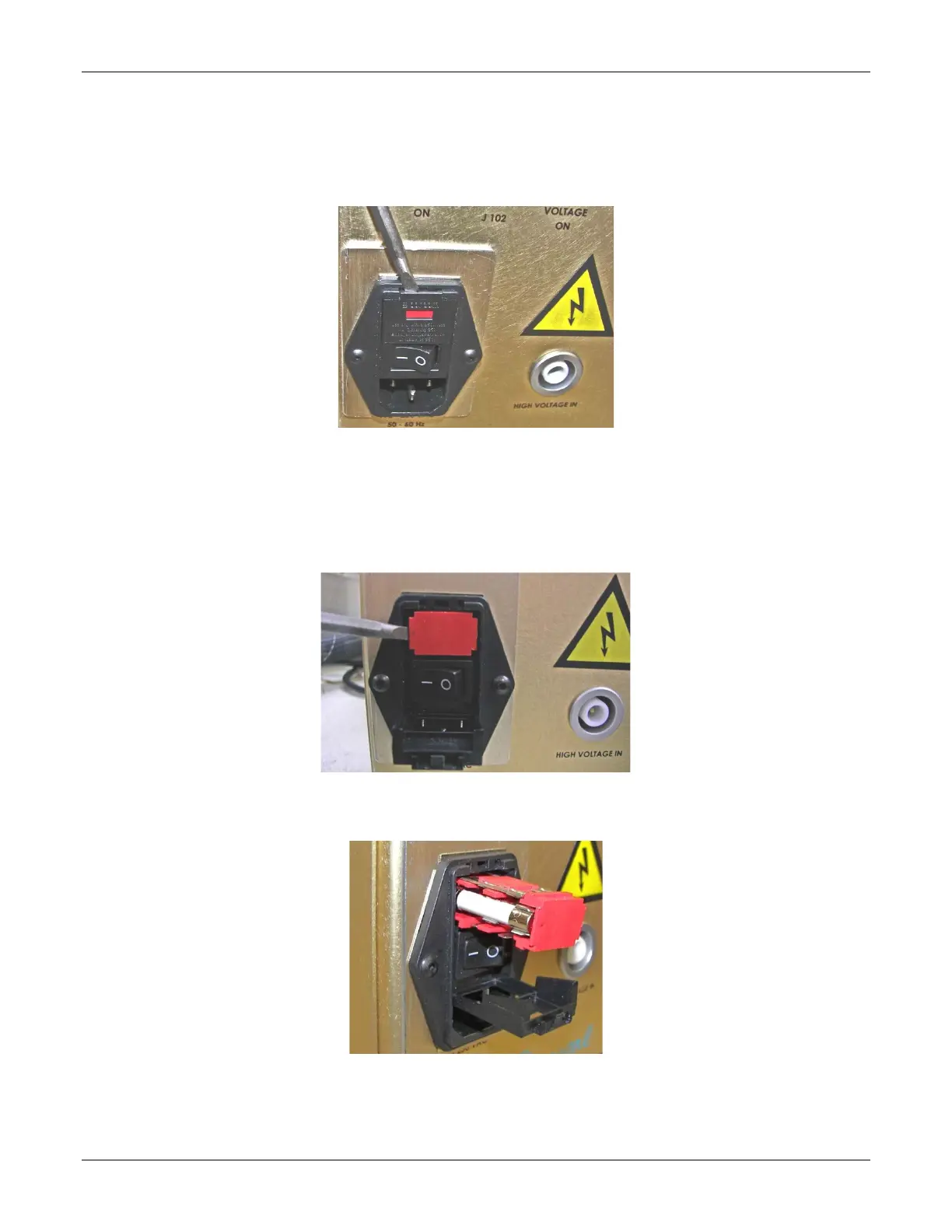

9 Using a flat-bladed screwdriver, pry open the fuse block’s cover as
shown in Figure 5-11.
Figure 5-11 Prying Open the Fuse Block Cover on FPS Front Panel
10 Using the same screwdriver, pry the fuse block out of its
holder, as shown in Figure 5-12. Figure 5-13 shows the fuse
block extracted from its holder.
Figure 5-12 Extracting the Fuse Block from the FPS
Figure 5-13 Fuse Block Removed from FPS
11 Check the fuses and replace them as necessary.
