2.6 Cable Installation Section 2: Installation
CV-6SLX User Manual 0101-8242-0, Rev. C
2-14

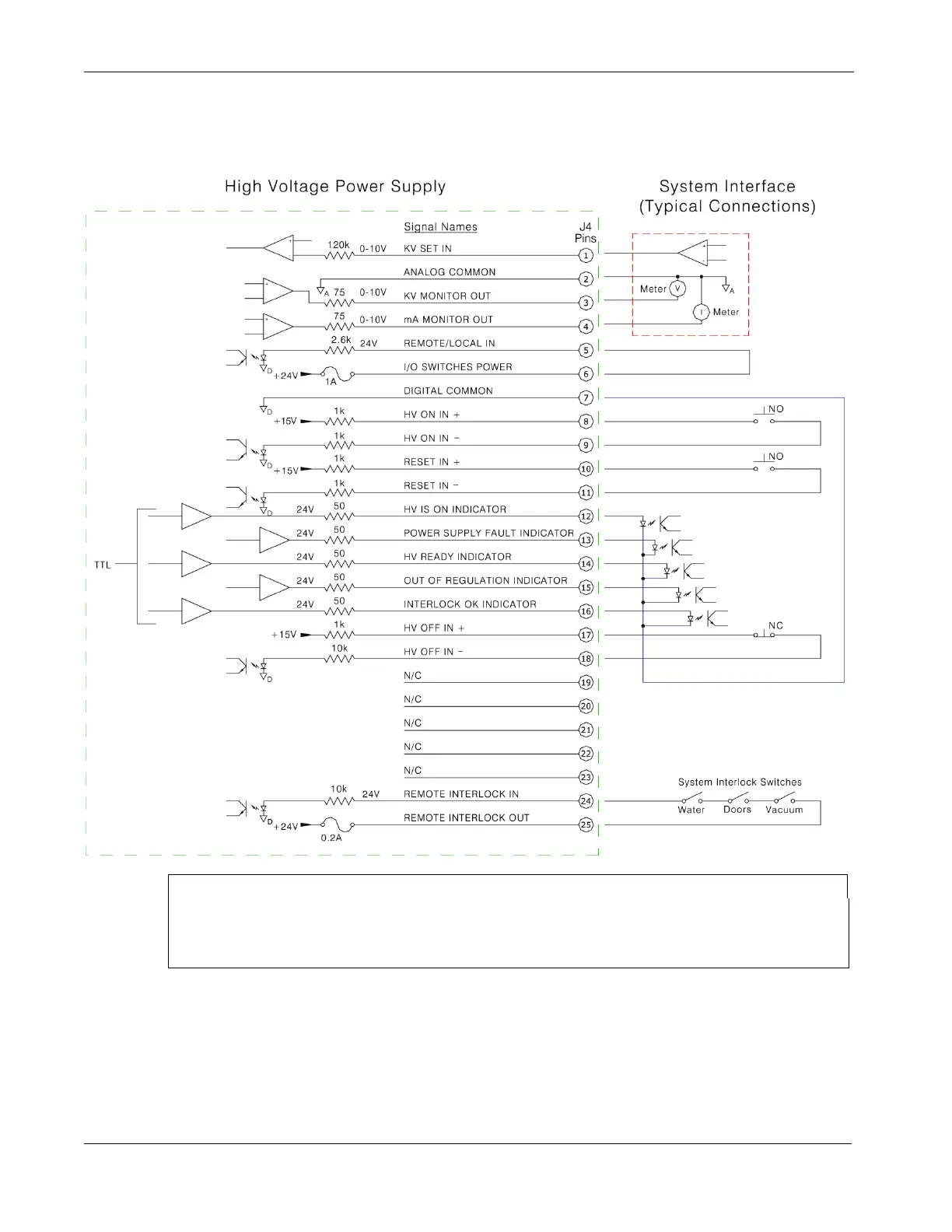

Figure 2-15 System I/Os Exchanged via HVPS Rear Panel Connector J4
and the HVPS I/O Cable (PN 0620-6682-0)
NOTE
Because the interlock string is internally supplied with 24 V dc, only contact closure must be supplied by the
vacuum system. Care must be taken not to allow voltages from other sources to affect the external interlock
loop, as safety could thereby be compromised. In addition, the application of additional voltage sources to
the interlock circuit will damage it.
