Section 4: Theory of Operation 4.3 FPS Theory of Operation

0101-8242-0, Rev. C 4-7 CV-6SLX User Manual

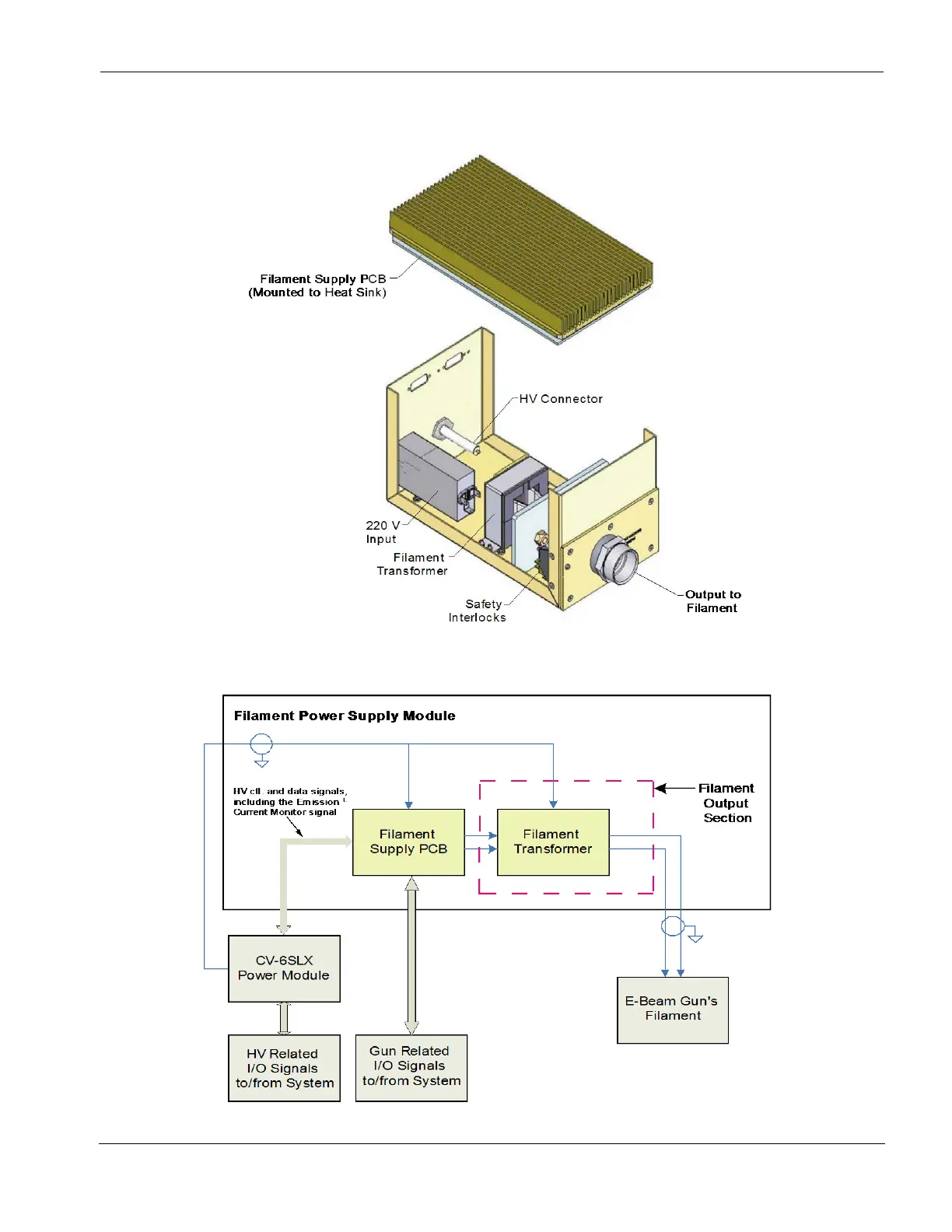

Figure 4-6 Component Location in FPS Units with PN 0620-6604-2

Figure 4-7 Top Level Block Diagram for FPS Units with PN 0620-6604-2
