3. Product description
Festo.P.BE-CMMS-ST-G2-HW-EN 1008NH 57

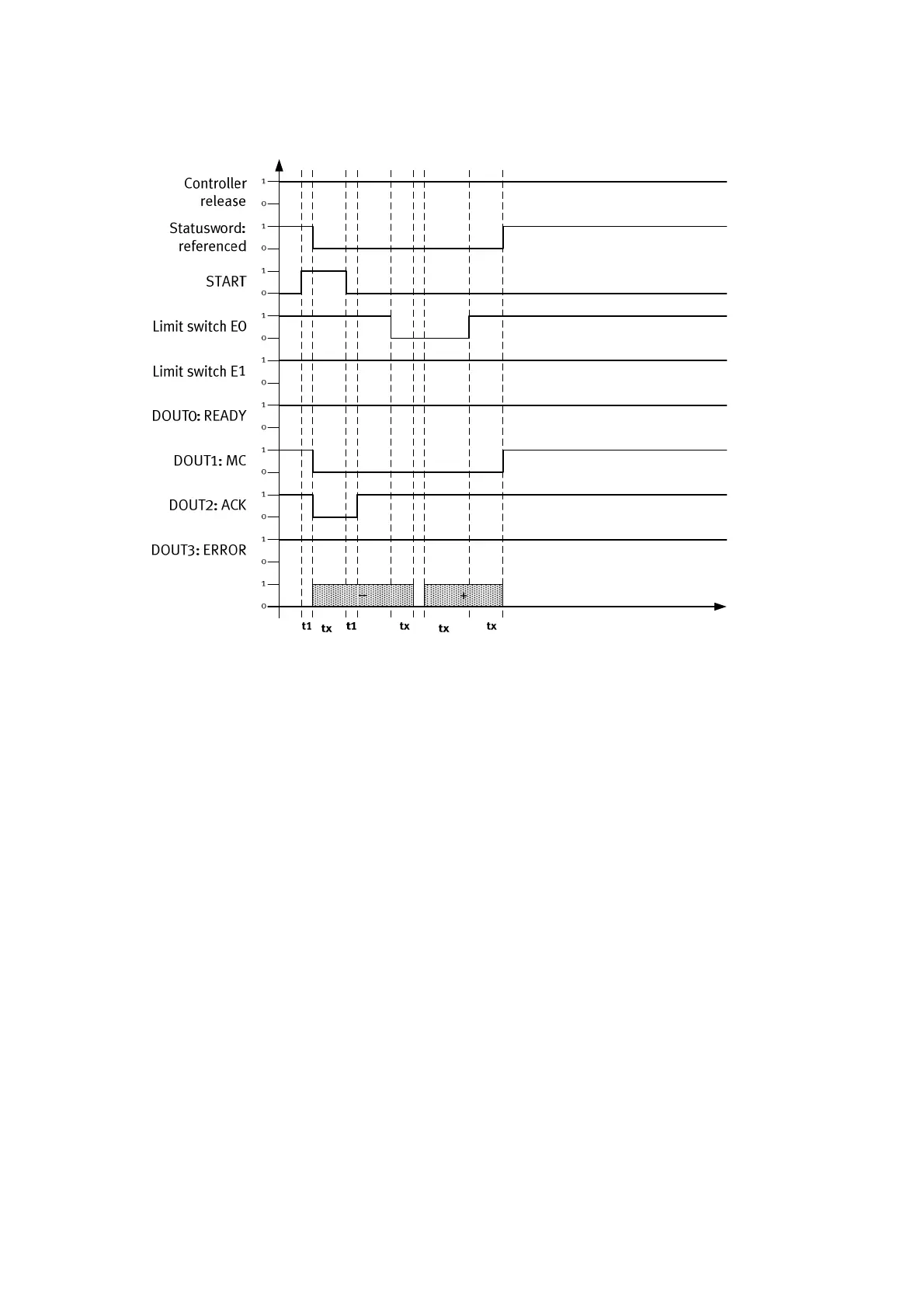

3.5.8 Timing diagrams for homing run
t1 = 1.6 ms
tx = x ms (dependent on ramps)
Fig. 3.4 Signal sequence with start of the homing run and with positive design
