3. Product description
78 Festo.P.BE-CMMS-ST-G2-HW-EN 1008NH

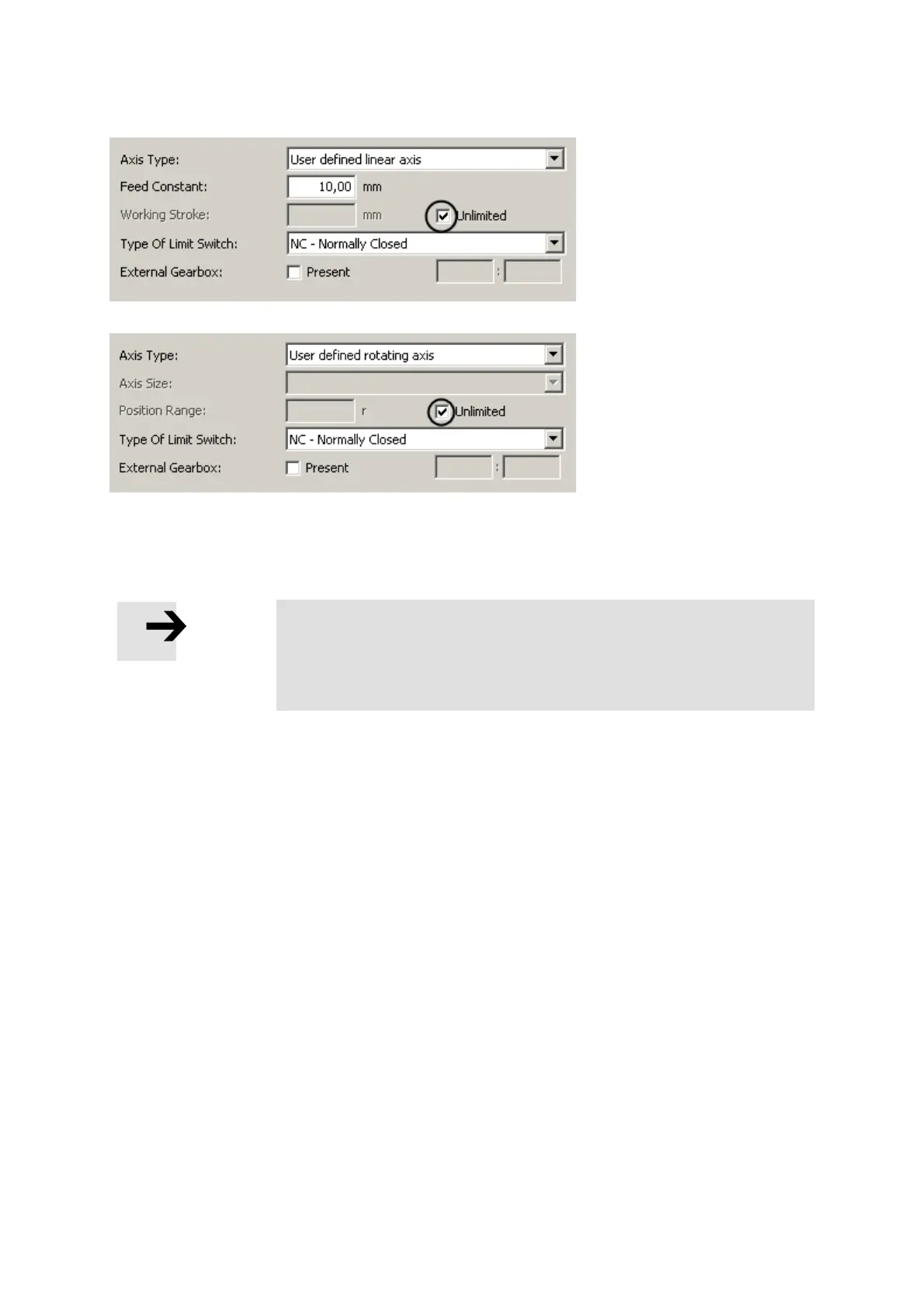

For linear axes:
For rotational axes:
The function Endless Positioning is selected by checking “Work stroke / positioning range
unlimited”. The selection is currently supported only for user-defined linear and rotating
axes.
Note
Hardware limit switches can be used with unlimited axes only
for the homing run.
Software limit stops are deactivated.
3.5.18 Relative positioning records
When using relative positioning records, observe the following.
The controller is a 16-bit controller. That means, the controller calculates internally with
65536 increments per revolution. The controller calculates with whole numbers (integers).
For positioning records that do not have a whole number as the result, the controller
rounds up to the next whole number. This can result in deviations with endless
positioning.
Example: rotary indexing table
4 positions. (90°) 65536:4= 16384 ----> Integer
6 positions. (60°) 65536:6= 10922,666 ----> The controller positions at 10923.
