Festo CMMS-ST-C8-7-G2 Assembly And Installation

3. Product description
Festo.P.BE-CMMS-ST-G2-HW-EN 1008NH 75
I/O timing diagrams
ENABLE
START
STOP
Positioning
record
Drive is moving
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
1
0
DOUT0: READY
DOUT1: MC
DOUT2: ACK
DOUT3: ERROR
t1 t1 t1 t1 t1 tx
(1)
t
1 = 1.6 ms
tx = x ms (dependent on positioning)
(1) Applies for positioning records with end speed = 0

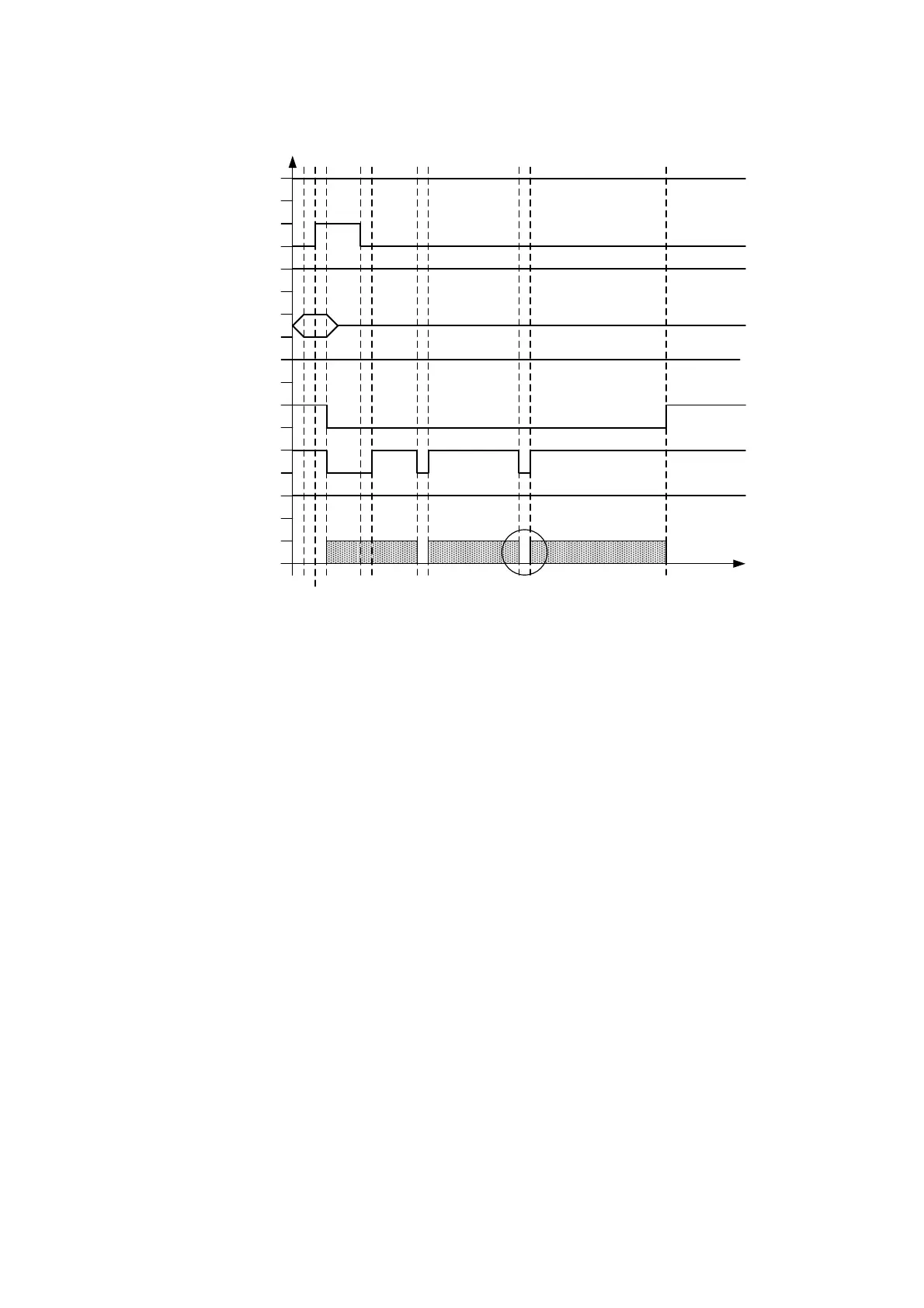

Fig. 3.13 Signal sequence at the start of a sequence with DIN0 ... DIN2 (positioning
record 1 ... 7)
