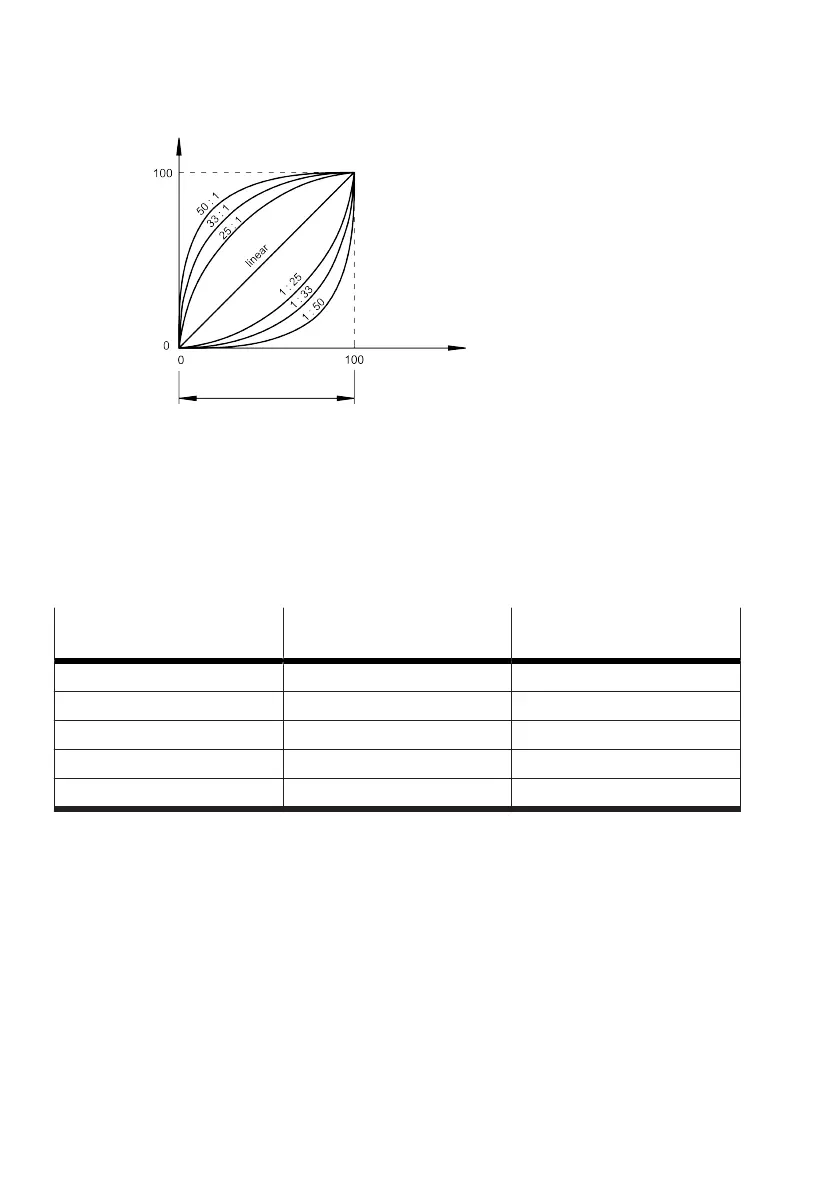

Fig. 26: Setpoint value characteristic curves
User curve
The user-defined characteristic curve can be configured in this area. The parameters named in the
following table are used to define a user-defined characteristic curve over 21 support points distrib-
uted at fixed intervals over the setpoint value range of … 100%. The distance between the individual
interpolation points is 5%. Every sampling point can be assigned a setpoint position. Only strictly
monotone rising values may be entered, that is the entered setpoint position must be greater than the
previous setpoint position value.
Interpolation point with stand-
ardised setpoint value
Value range Description
0.0% 0.0 … 98.0% Factory setting: 0.0%
5.0% 0.1 … 98.1% Factory setting: 5.0%
... … ...
95.0% 1.9 … 99.9% Factory setting: 98.0%
100.0% 2.0 … 100.0% Factory setting: 100.0%
Tab. 30: Interpolation points
