1. Installation
1-9
Festo P.BE-CPX-FB32-EN en 1111a
Setting the operating mode with DIL switch
1
You can set the operating mode of the fieldbus node with
switch element 1 of DIL switch 1:
Operating mode
Setting DIL switch 1
Remote I/O operating mode
All functions of the CPX terminal are controlled
directly by the master. An FEC integrated in the
CPX terminal works as a passive function module
without controller.
DI L 1.1: OFF
DI L 1.2: OFF
(factory setting)
Operating mode Remote Controller
An FEC integrated in the CPX terminal takes
control of the I/Os. This operating mode is only
useful if an FEC is integrated in the CPX terminal.
DI L 1.1: ON
DI L 1.2: OFF

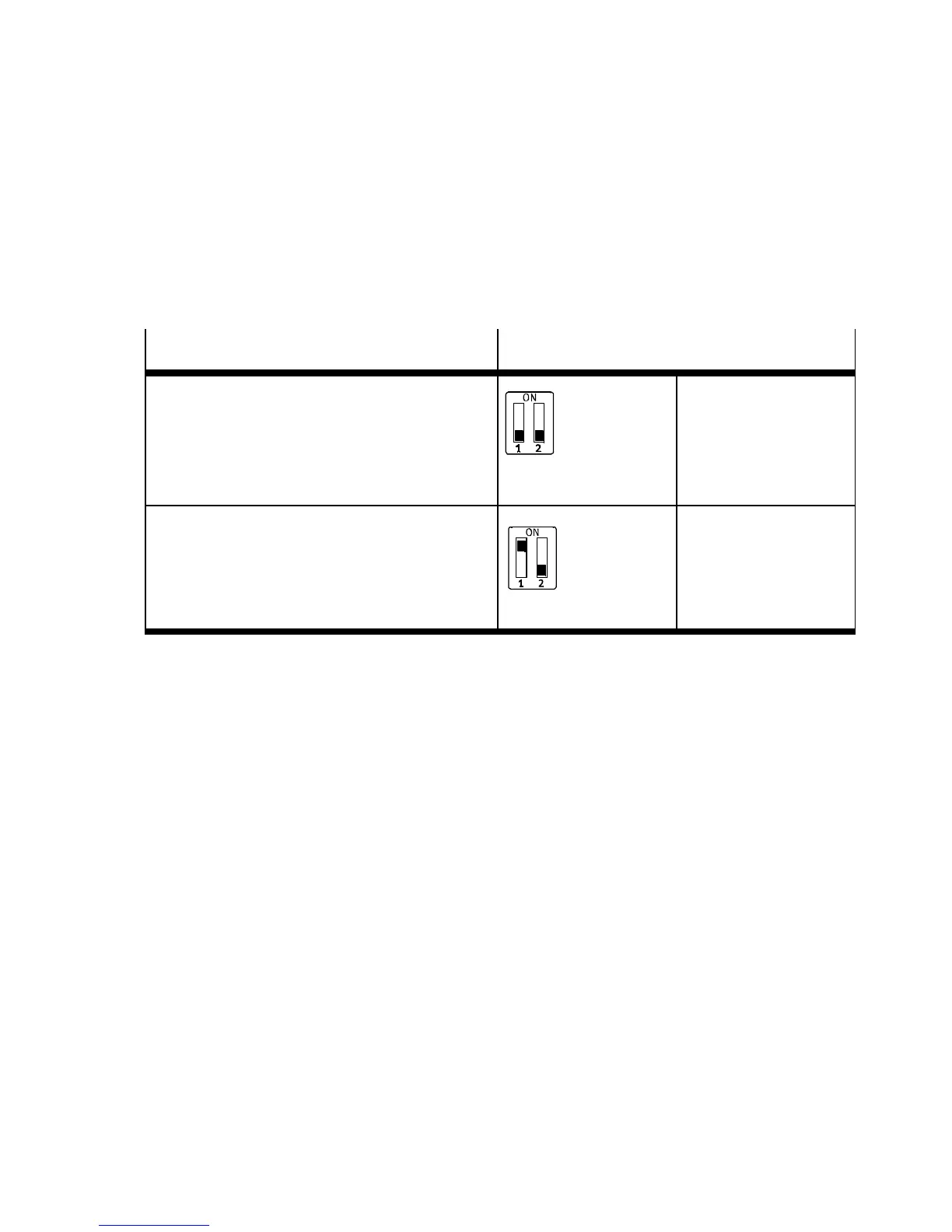

Tab . 1/1: S etting the operating mode with DIL switch 1
