1. Installation
1-10
Festo P.BE-CPX-FB32-EN en 1111a
Setting the diagnostic mode or the data size for Remote
Controller with DIL switch
2
The function of this DIL switch is dependent on the set
operating mode of the CPX terminal (see Tab. 1/1):
ThediagnosticmodeissetIntheRemoteI/Ooperating
mode; the number of I/O bytes is set in the Remote Controller
operating mode.
Diagnostic mode
(Remote I/O operating mode)
Setting
DIL switch 2
The I/O diagnostic interface and the
status bits are switched off
(+ 0 I/O bits)
2.1: OFF
2.2: OFF
(default)
The I/O diagnos tic interface is switched
on
1)
(+ 16 I/O bits)
2.1: ON
2.2: OFF
Status bits are switched on
(+ +16 E-bits (8 used))
2.1: OFF
2.2: ON
Reserved for future extensions 2.1: ON
2.2: ON
1)
The I/O diagnostic interface occupies an additional 16 I/O bits.

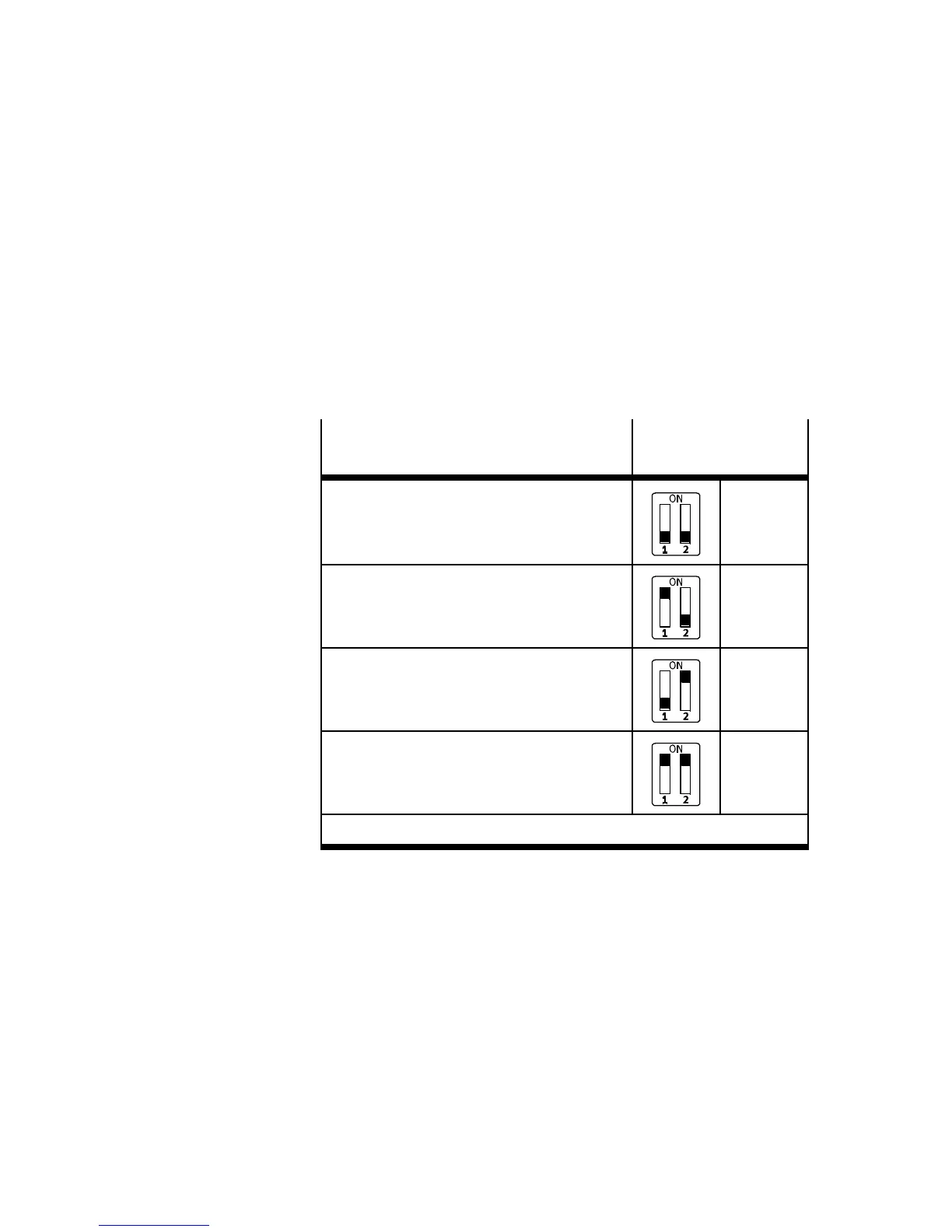

Tab . 1/2: S etting the diagnostic mode with DIL switch 2
(Remote I/O operating mode)
