1. Installation
1-11
Festo P.BE-CPX-FB32-EN en 1111a
Number of I/O bytes
(Remote Controller operating mode)
Setting
DIL switch 2
8byteI/8byteOfor communication of the
fieldbus node with the CPX-FEC or
CPX-CEC.
2.1: OFF
2.2: OFF
(default)
Reserved 2.1: ON
2.2: OFF
16 byte I/16 byte O for communication of
the fieldbus node with t he CPX-FEC or
CPX-CEC.
2.1: OFF
2.2: ON
Reserved 2.1: ON
2.2: ON

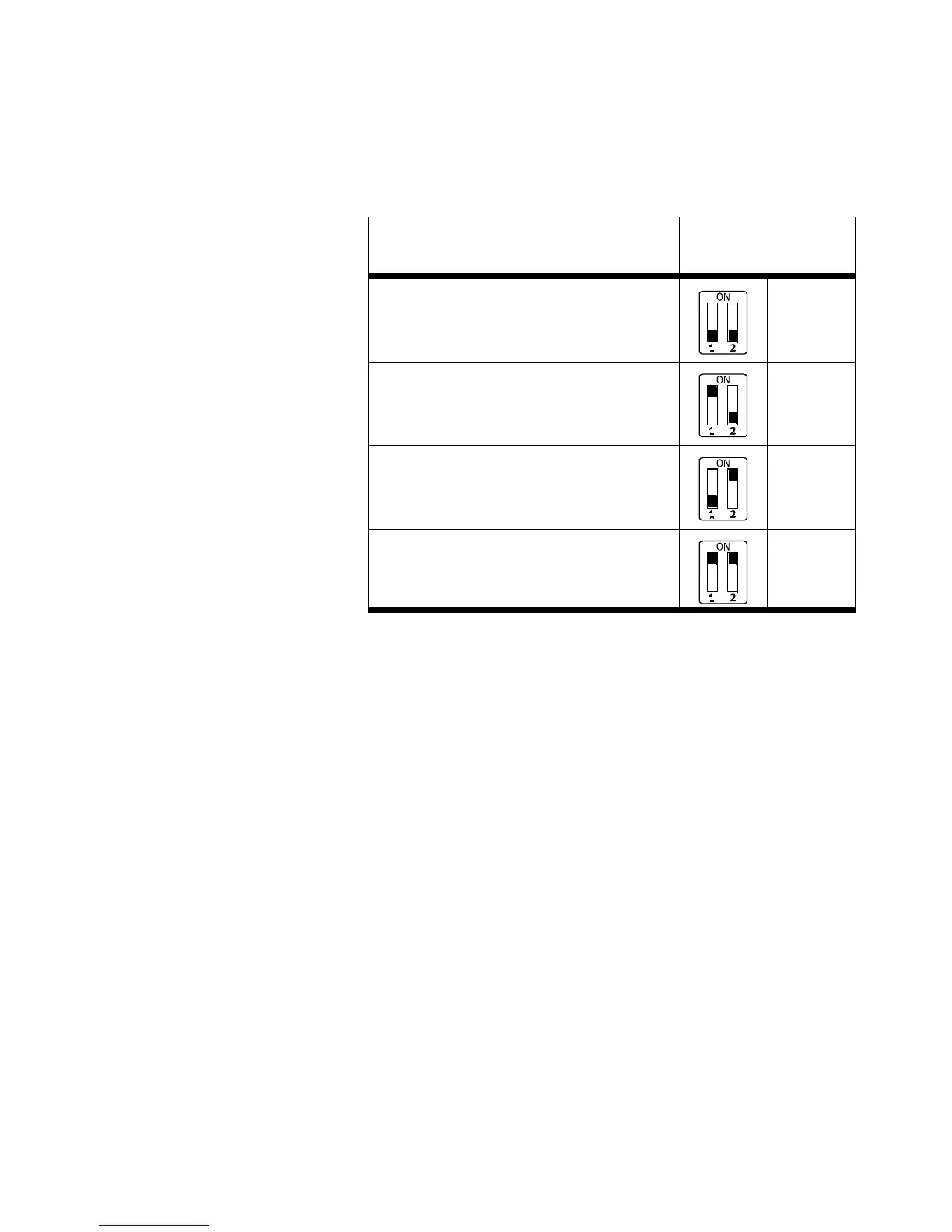

Tab. 1/3: Setting the number of I/O bytes with DIL switch 2
(operating mode Remote Controller)
