1. Installation
1-12
Festo P.BE-CPX-FB32-EN en 1111a
Setting the IP addressing with DIL switch
3
With DIL switch 3 you can set the type of addressing or the IP
address of the fieldbus node.
Dynamic addressing via
BOOTP/DHCP or saved
addressing
Fixed addressing via DIL
switch
12 34 56 78
Setting:
All switches OF F
(factory setting)
12 34 56 78
Setting:
Host ID of the
IP address

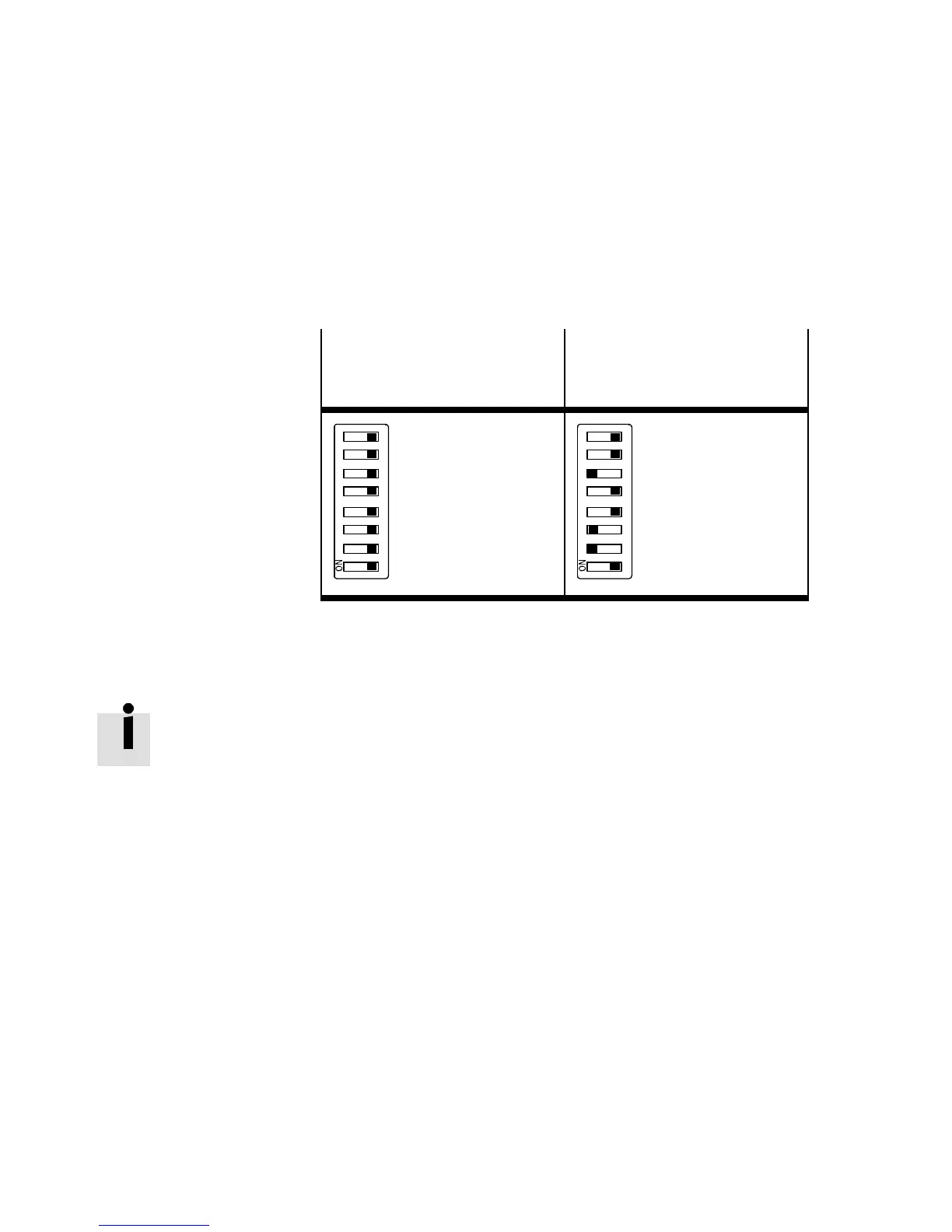

Tab . 1/4: Settings of DIL switch 3 for different types of
addressing
The factory setting is the dynamic addressing.
Observe the detailed information on addressing in
section 1.3.3.
