B. Supplementary summary of components
B−10
Festo P.BE−VTSA−44−EN en 0509NH
2
1
3
4

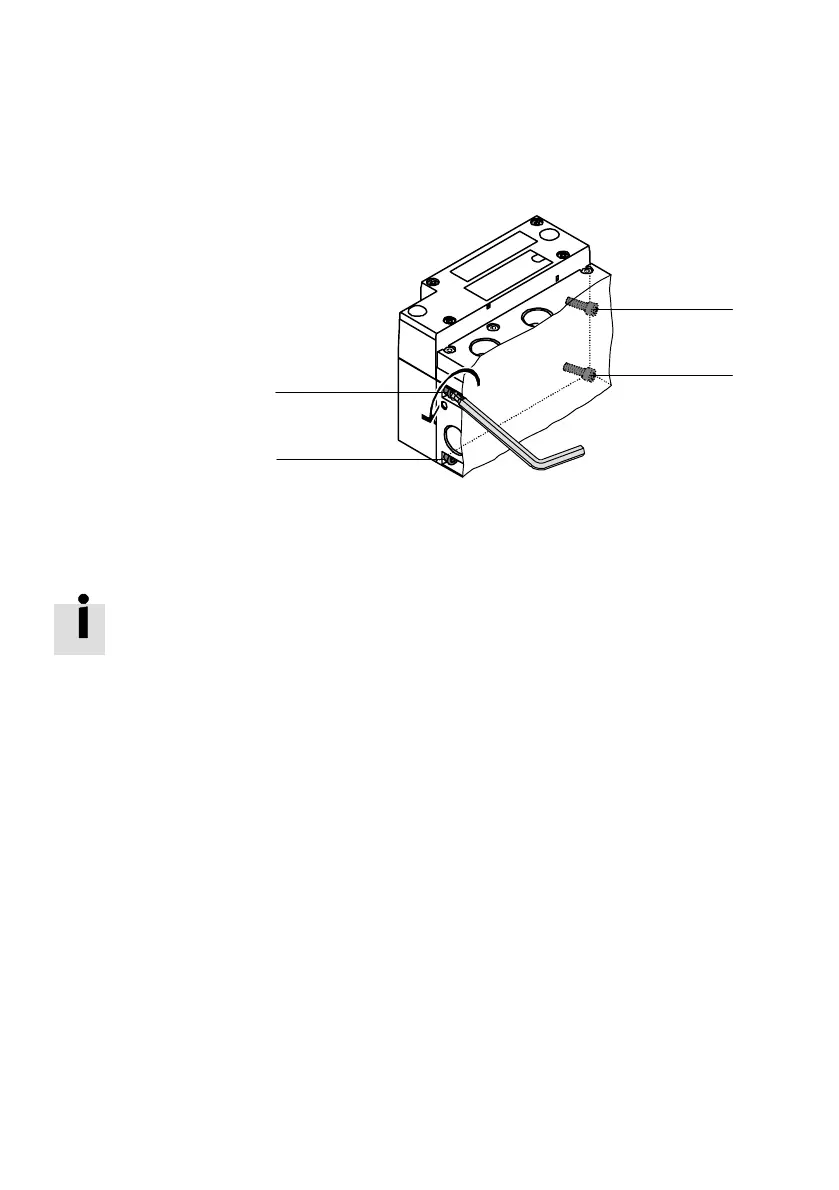

Fig.B/2: Removing the VTSA valve terminal from the
pneumatic interface
Information on replacing the pneumatic interface can be
found in the CPX system manual.
Fitting Proceed as follows:
1. Make sure the seals are not damaged. Replace the seals if
they are damaged.
2. Place the seal onto the guide pin of the pneumatic
interface.
