1. Summary of components
1−22
Festo P.BE−VTSA−44−EN en 0509NH
On the components for vertical stacking you will find the
following connecting and operatingelements:
Pressure regulator plate
Throttle plate
Vertical pressure
blocking plate
Vertical supply plate
4
4
5
6
1
2
2
3
1
3
1 Connection for manometer
(can be turned 90°)
2 Manometer (optional)
3 Adjusting knob with free−wheeling
and snap−in locking
4 Adjusting screw for flow restriction
5 Operating pressure blocking screw for
one valve location
6 Connection 1 (individual operating
pressure for one valve location)

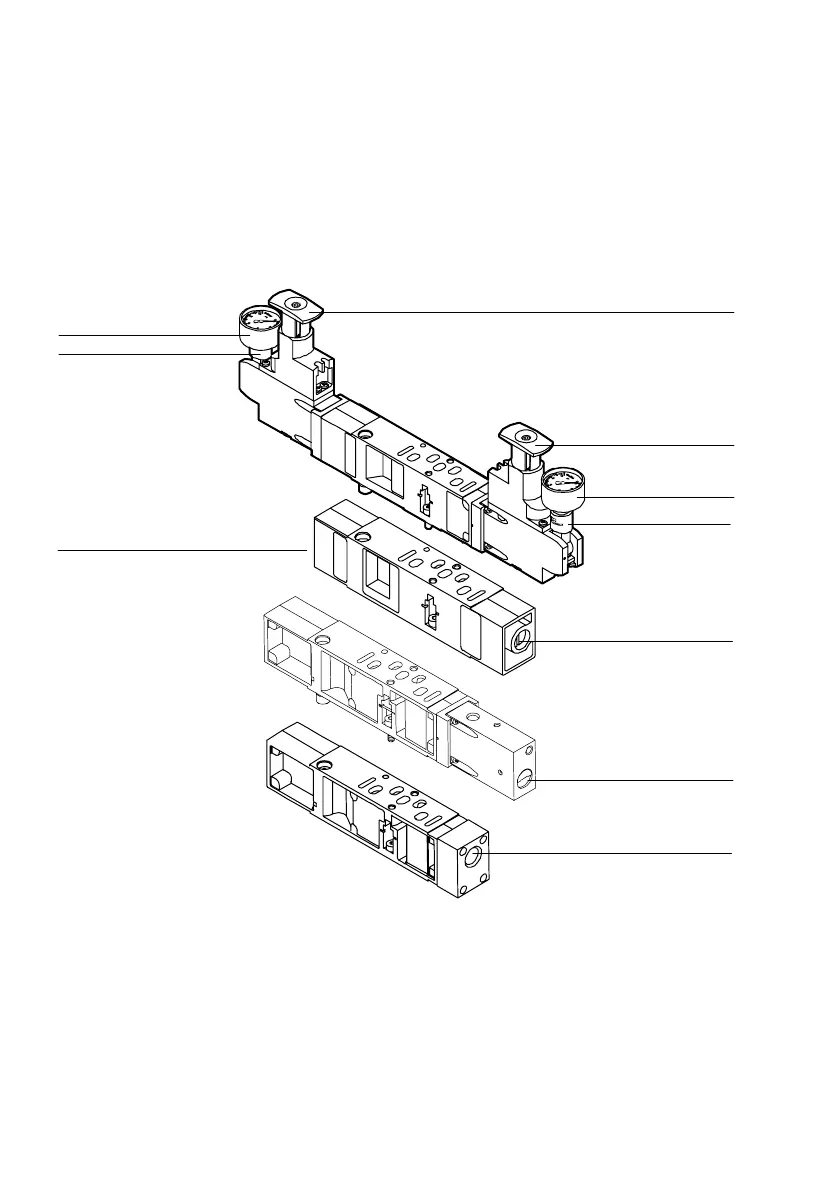

Fig.1/8: Operating and connecting elements of the components for vertical linking
