Fike ECS Series - 7: SBUS Wiring

54 ECS Series Manual — P/N LS10262-001FK-E:A 3/3/2021
Device Installation Installing the FIK-DUAL50W
4.7.7 SBUS Wiring
This section contains information on how to connect FIK-DUAL50Ws (up to 8 for FCP-300ECS or up to 16 for the FCP-2100ECS) onto the
main control SBUS. Refer to Section 4 of the FACPs Installation manual for SBUS specifications. Wire the SBUS as shown in Figure 4.50
or Figure 4.51 using the FIK-NVCM.

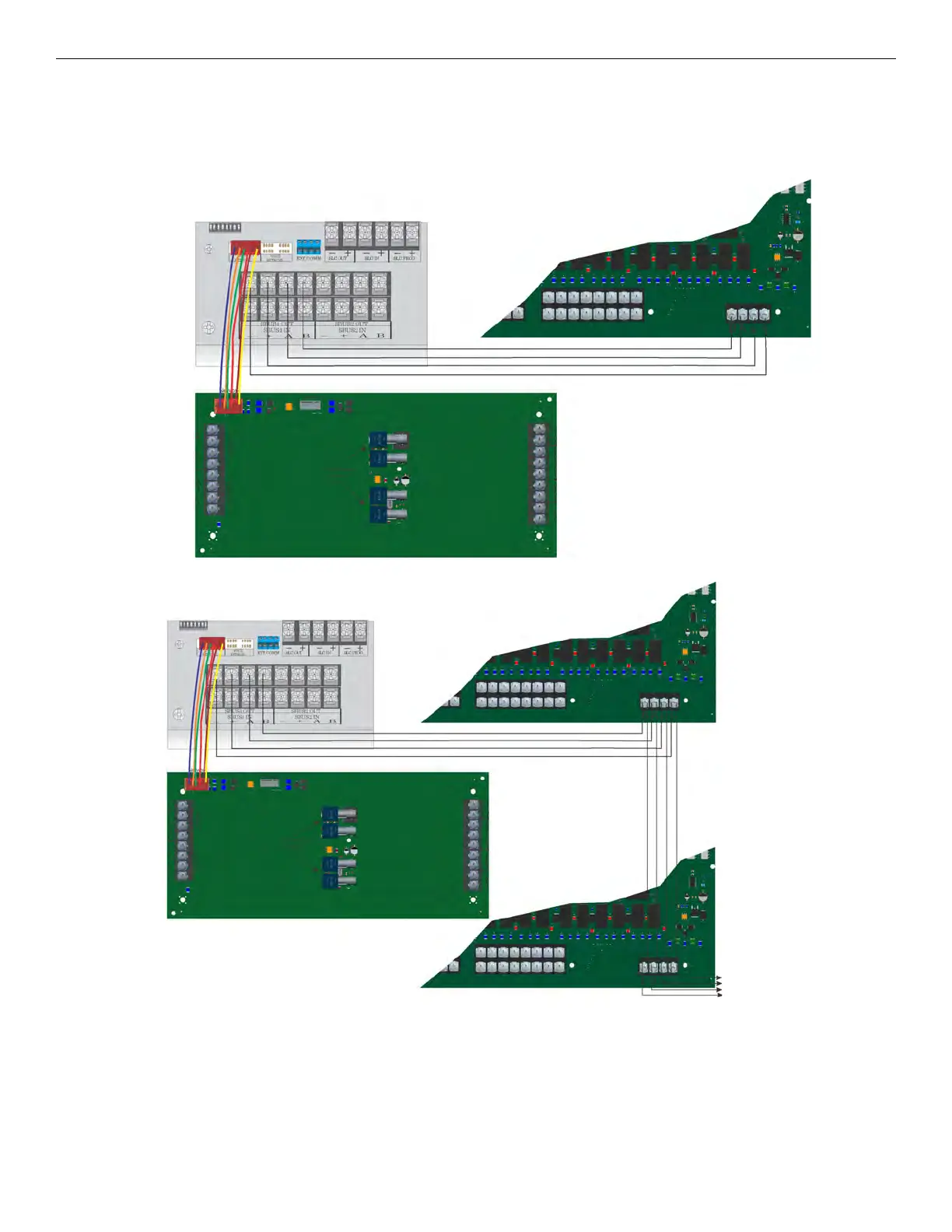

Figure 4.50 SBUS Connections to the FIK-DUAL50W
Figure 4.51 SBUS Connections to Multi FIK-DUAL50Ws
See Section 4.11 for information on setting SBUS addresses.
FACP
FACP
FIK-DUAL50W
To next
FIK-DUAL50W
FIK-NVCM
