Device Installation Installing the FIK-NVCM

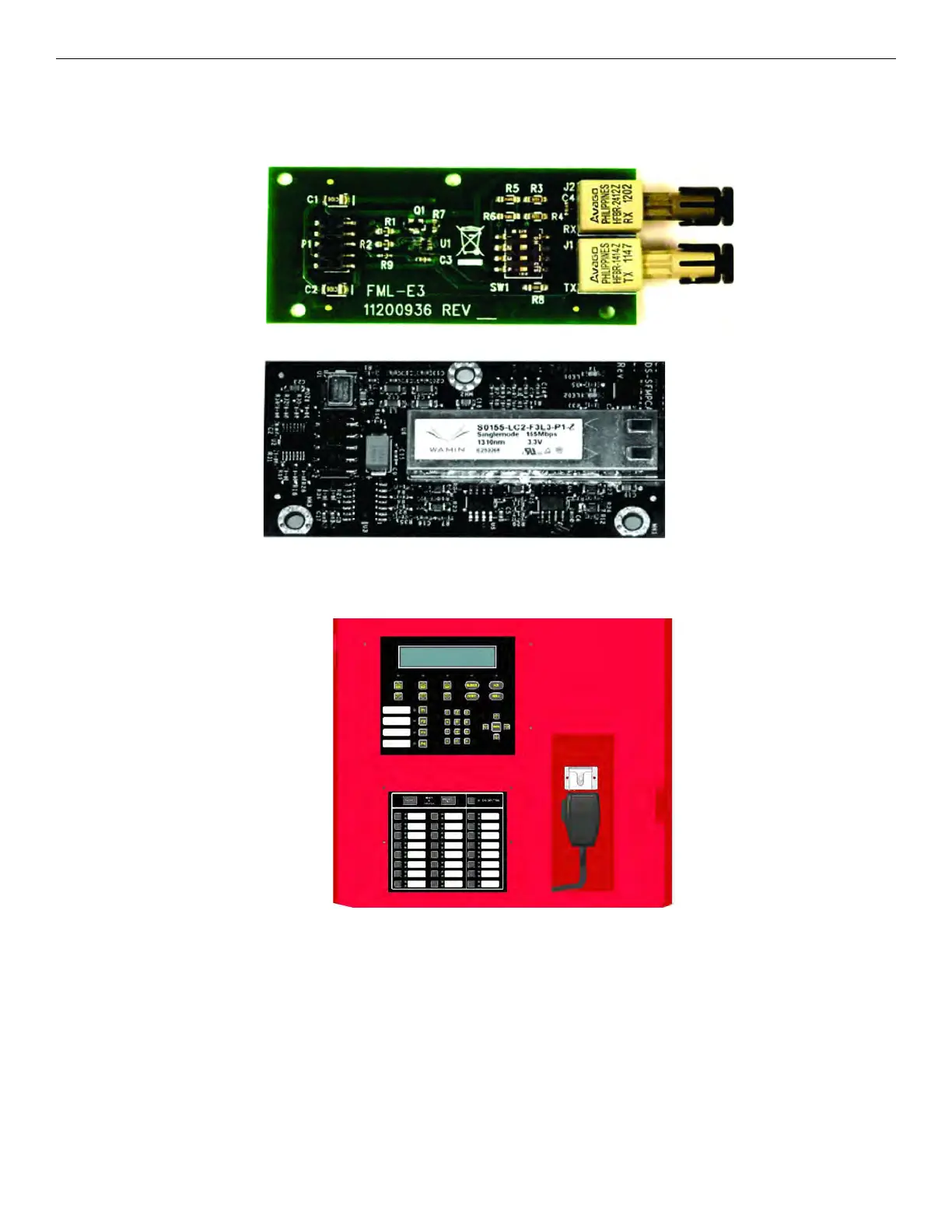

4.2.3 FIK-NVCM Fiber Modules
The FIK-NVCM supports two types of fiber-option modules to convert wire to fiber. For more information see Installation sheet PN
LS10178-002FK-E.
• FIK-FML (Fiber-Optic Multi-Mode, Receiver)
• FIK-FSL (Fiber-Optic Single-Mode, Transmitter)
4.2.4 Installing the Microphone
To install the microphone follow these steps:
1. Clip the microphone into the micro phone clip. See Figure 4.8.
Figure 4.8 Hang Microphone on to Microphone Clip
