Fike ECS Series - 2: Wiring the FIK-RVM

60 ECS Series Manual — P/N LS10262-001FK-E:A 3/3/2021
Device Installation Installing the FIK-RVM
.

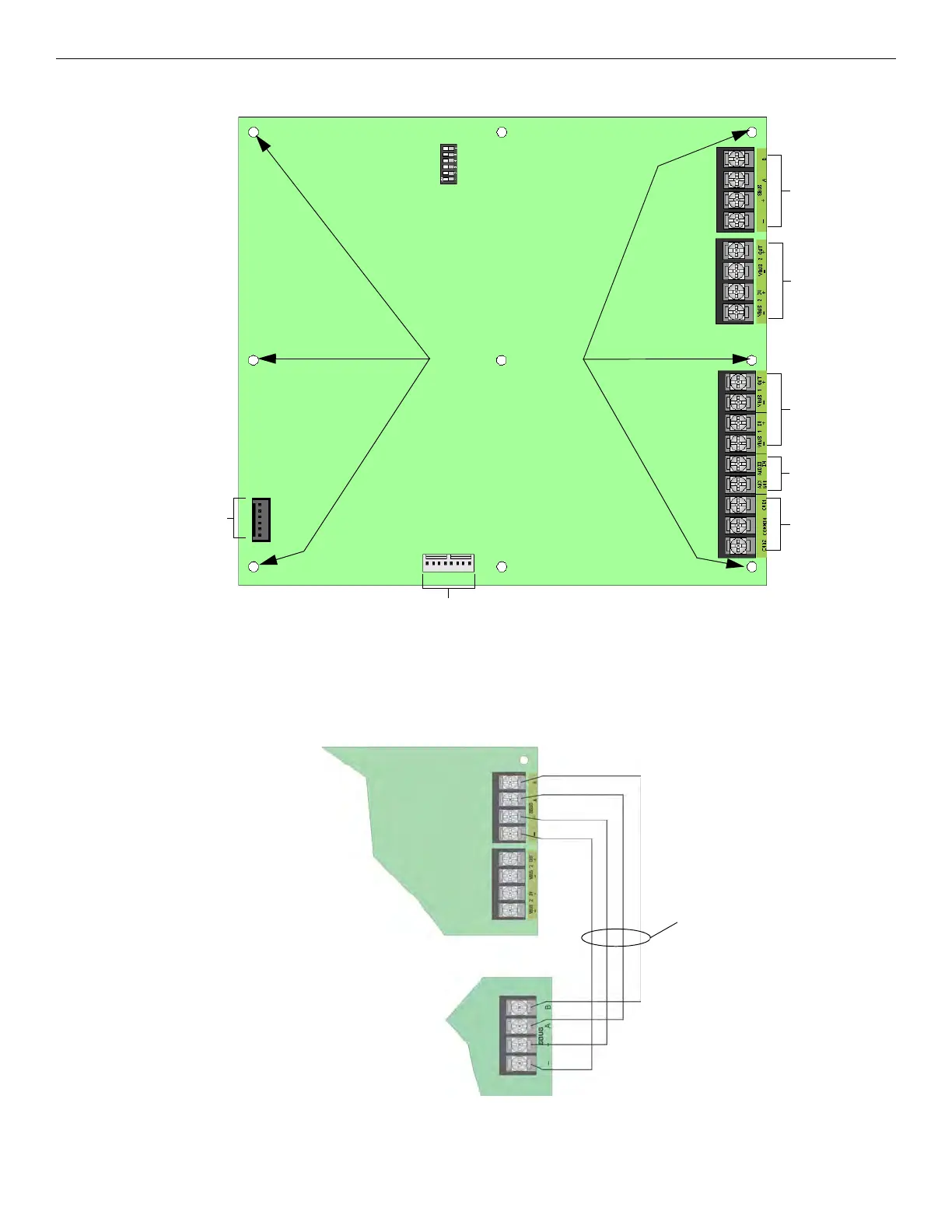

Figure 4.59 Back View of FIK-RVM
4.10.2 Wiring the FIK-RVM
1. Refer to Figure 4.60 to properly connect the FIK-RVM to the FACP’s SBUS.
Figure 4.60 SBUS Connections
VBUS
Microphone
connector
SBUS Address
DIPs
AUX
Dead front panel
SBUS
Audio
Input
AUX
Audio
Trigger
mounting holes
Not
Used
FIK-SW24
connector
Supervised
power limited
FIK-RVM
FACP
