ECS Series Manual — P/N LS10262-001FK-E:A 3/3/2021 61
Installing the FIK-RVM Device Installation
2. See Section 4.11 to set SBUS addressing.
3. Connect the SBUS to the annunciator and FIK-RVM. See Figure 4.61.

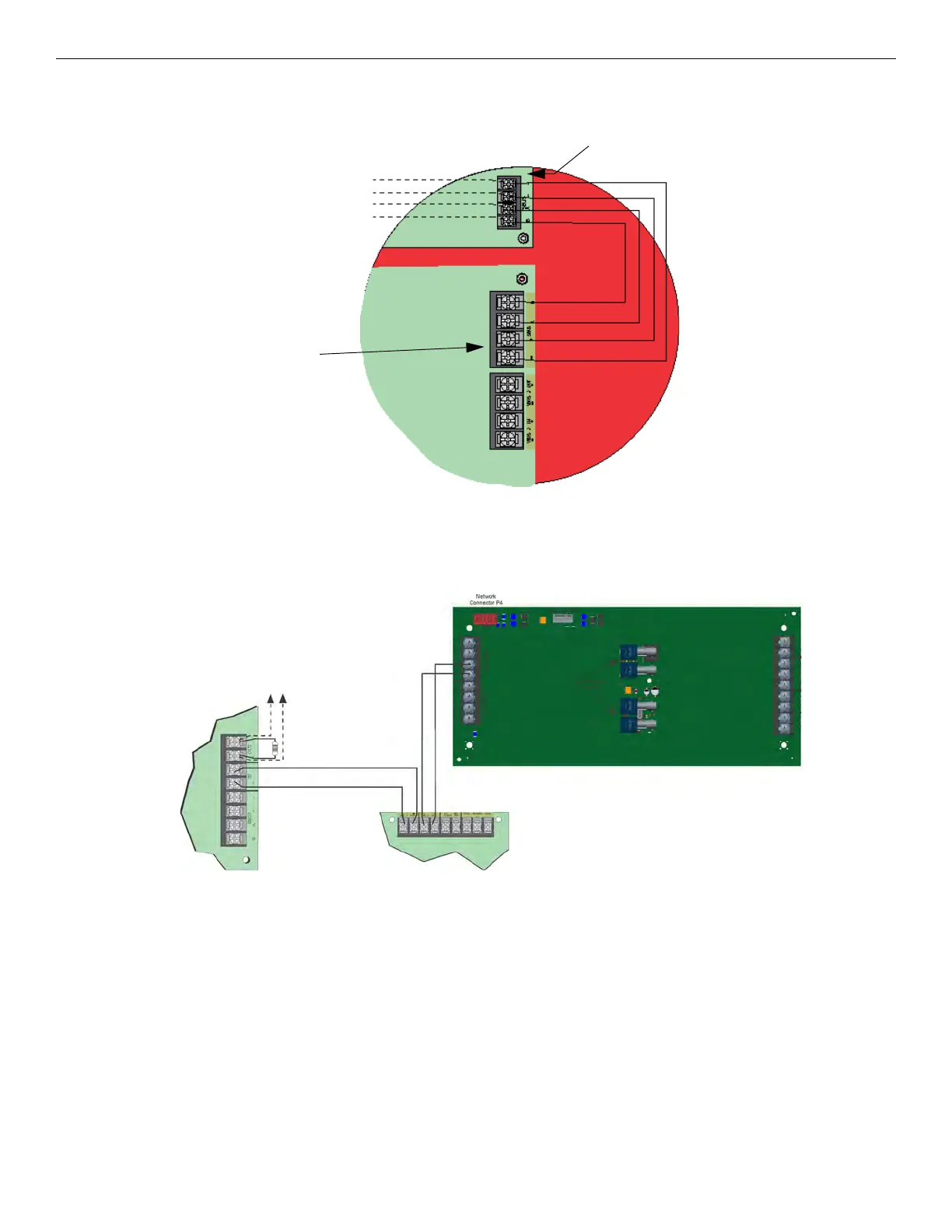

Figure 4.61 SBUS wiring for FIK-RVM
4. Set the SBUS address on the annunciator and the FIK-RVM board. See Section 4.11.
5. Connect the FIK-RVM to the VBUS, FIK-125W, and FIK-NVCM. See Figure 4.62.
Figure 4.62 VBUS and FIK-125W Wiring for FIK-RVM using the FIK-NVCM
From Previous
SBUS Device
Annu
nciator
FIK-RVM
To Next Page
