Fike ECS Series - 2: Wiring to a FACP

36 ECS Series Manual — P/N LS10262-001FK-E:A 3/3/2021
Device Installation Installing the FIK-INT50W

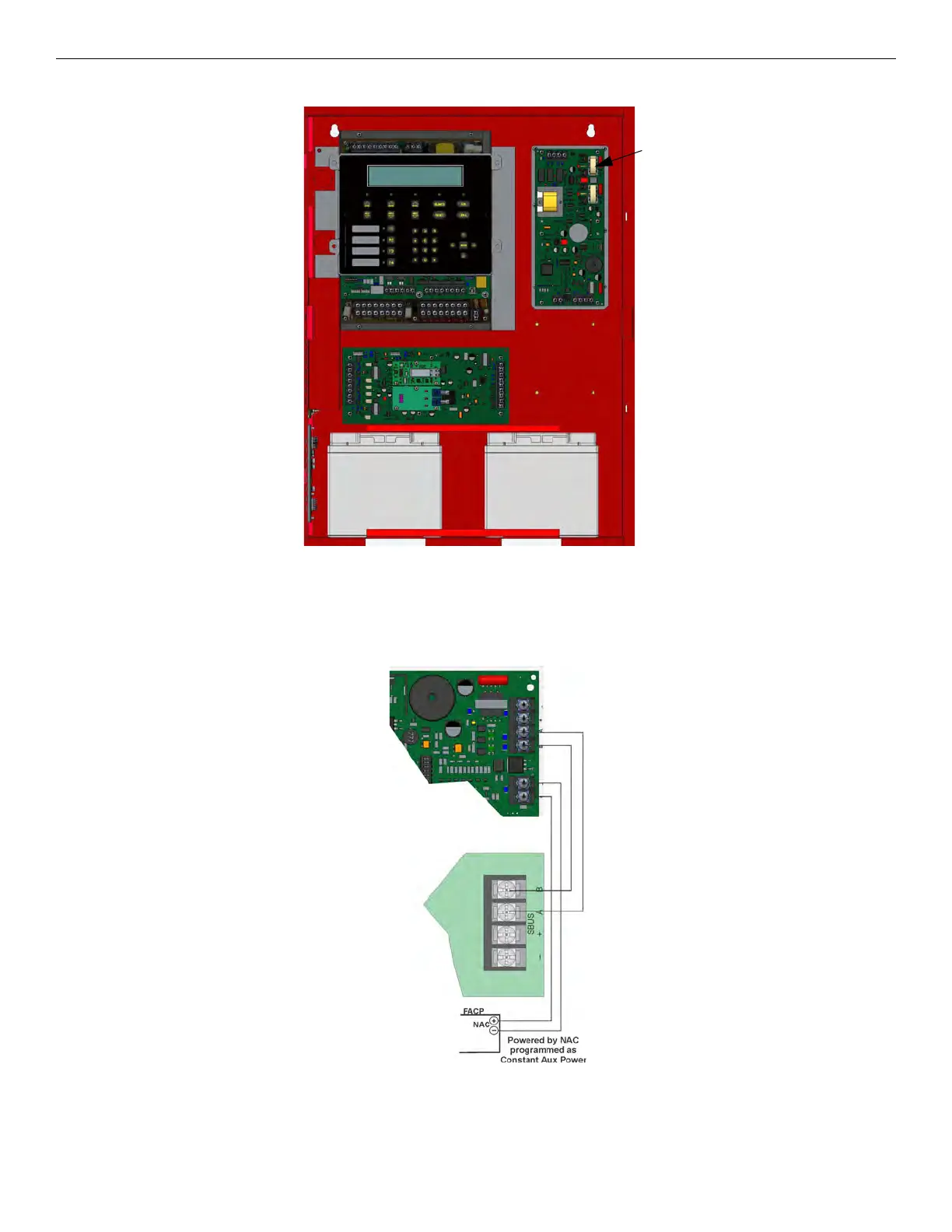

Figure 4.26 FIK-INT50W installed in FCP-2100ECS Cabinet
4.4.2 Wiring to a FACP
See Figure 4.27 to properly wire the FIK-INT50W to the FACP.
The Internal Amplifier must be powered by a NAC programmed as Constant Auxiliary Power. Refer to the FACP installation manual.
Figure 4.27 Wiring the FIK-INT50W to the FACP
Install with
coils to the
top, right
FACP
FIK-INT50W
