ECS Series Manual — P/N LS10262-001FK-E:A 3/3/2021 35
Installing the FIK-INT50W Device Installation
4. Mount the FIK-AMPMT plate into the cabinet using the six supplied screws. Orientate with “Top” side up. (see Figure 4.24). Secure the
FIK-INT50W onto the six standoffs, making sure the two coil parts are at the top, and on the right side of the FIK-AMPMT. See Figure
4.25 and Figure 4.25 for coil position.

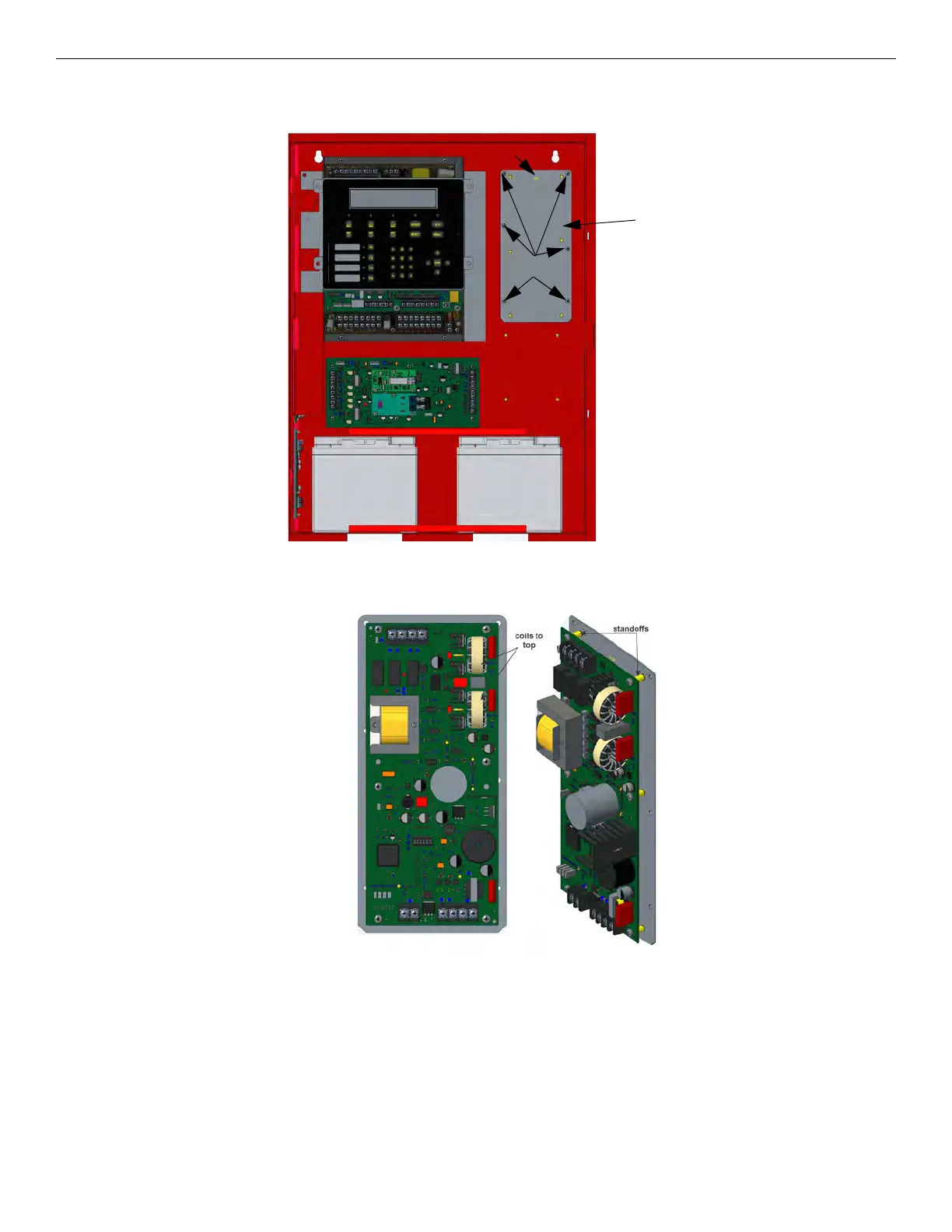

Figure 4.24 FIK-AMPMT installed in Cabinet
Figure 4.25 FIK-INT50W Installed using the FIK-AMPMT
"Top"
Mounting
Holes
FIK-AMPMT
