Device Installation Installing the FIK-CE4
3. Using the 4 supplied screws, mount the FIK-50WBU to the standoff's as shown in Figure 4.56.

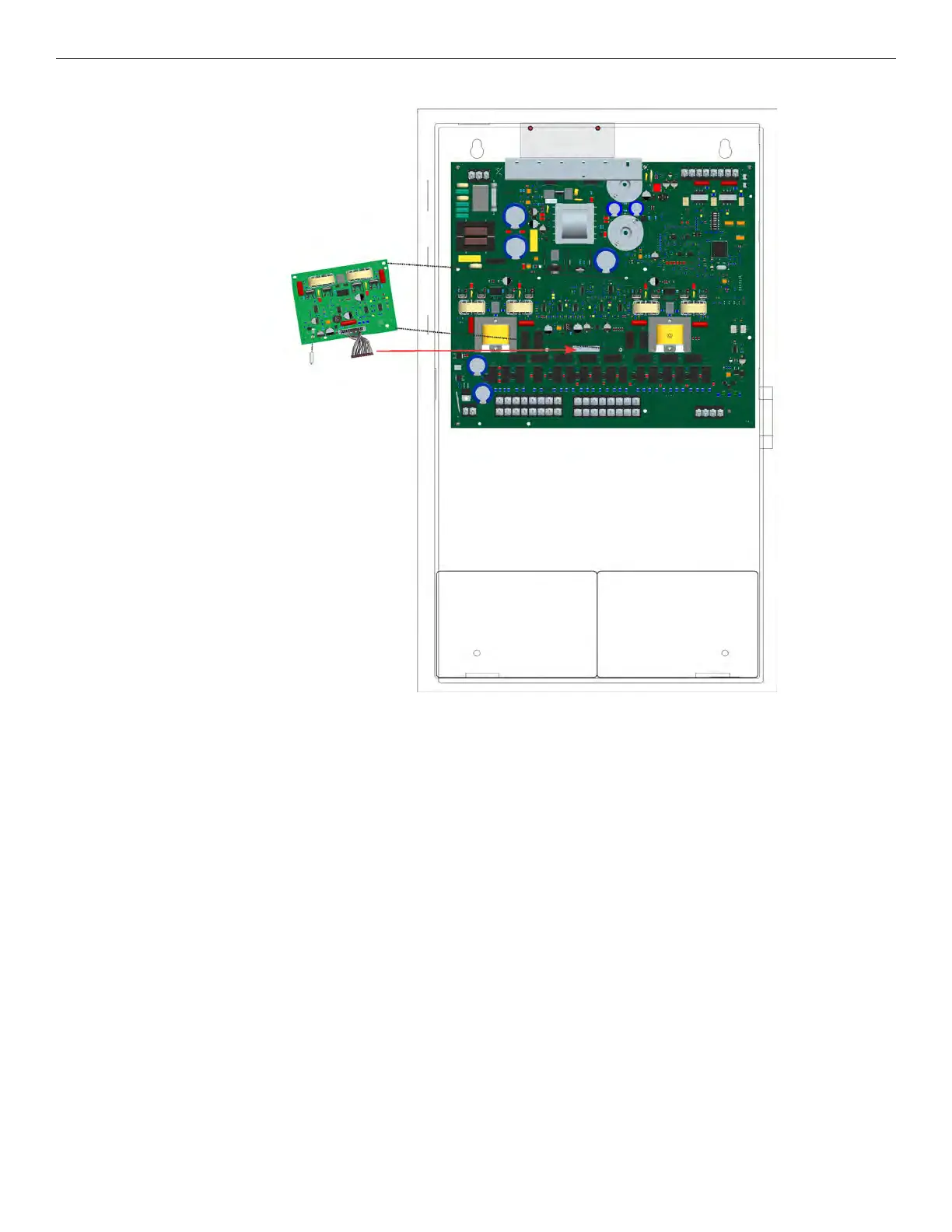

Figure 4.56 Mounting the FIK-50WBU
4.9 Installing the FIK-CE4
The FIK-CE4 adds four audio circuits to the FIK-50W and FIK-125W. The FIK-CE4 mounts inside the FIK-50W or FIK-125W cabinet.
FIK-50WBU
Standoff
cable
harness
