Filtec FT-170 - FT-170;CI X-Ray Radiation Exposure Profiles

Safety Information 1-7
Document 40275-0913
1.4 Model FT-170/CI X-Ray Radiation
Exposure Profiles
1.4.1 Diagram
Use this diagram to determine the radiation exposure profiles for
the FT-170/CI

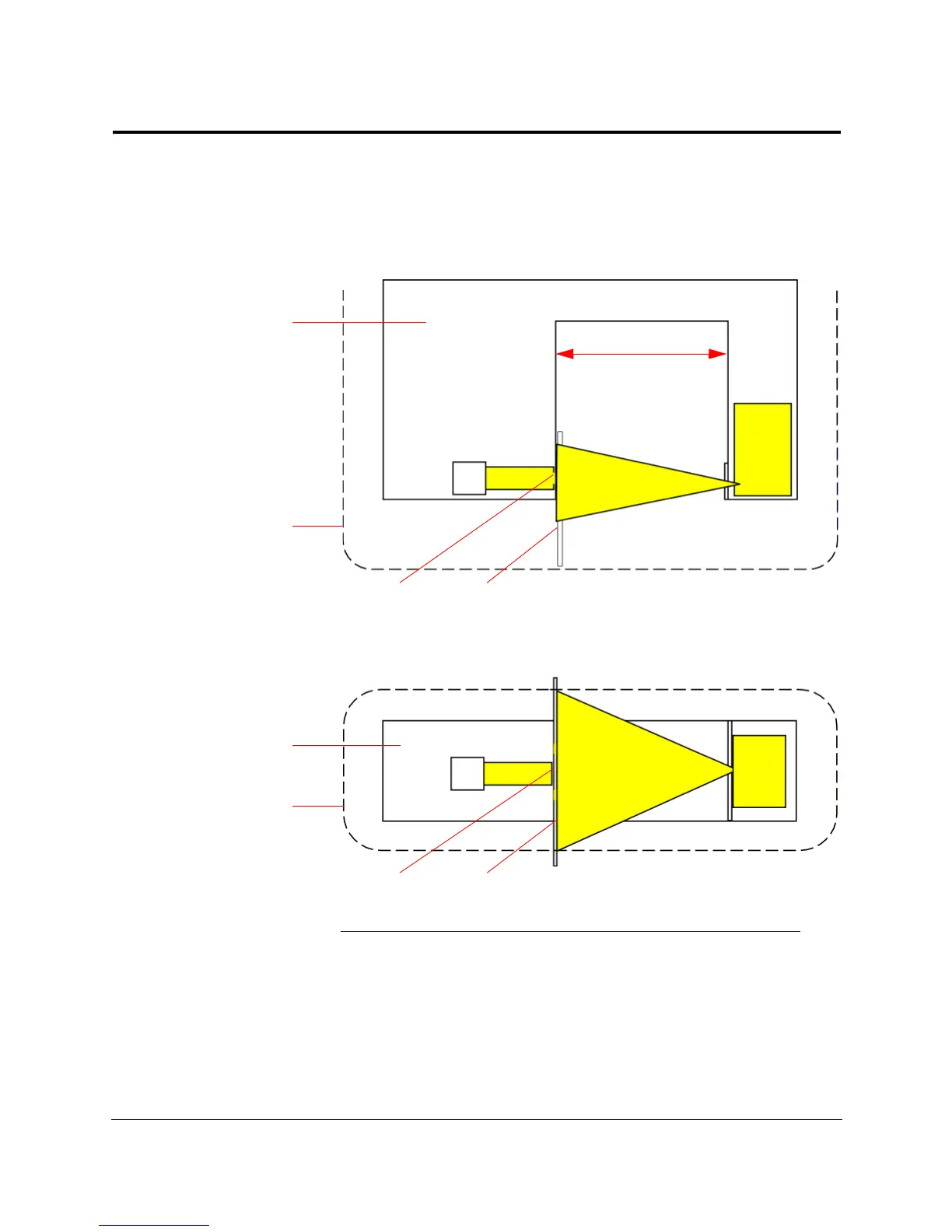

Figure 1-2. FT-170/CI Radiation Profile Schematic
No. Description No. Description
1 Inspection head 5 Radiation detector
2 Inspection tunnel 6 5 cm isodistance contour
3 Sealed X-ray source 7 Shielding bar (1/4” steel plate)
4 Limits of main beam 8 Detector window
8
1
2
3
4
5
6
1
5
6
4
3
7
8 7
X-ray Gauge equals 45 KV @ 50 mA with 2 (.015 inch) BeCu Filters
