1.7 Model FT-100/CI Radiation Exposure
Profiles
1.7.1 Diagram
Use this diagram to determine the radiation exposure profiles for
the FT-100/CI

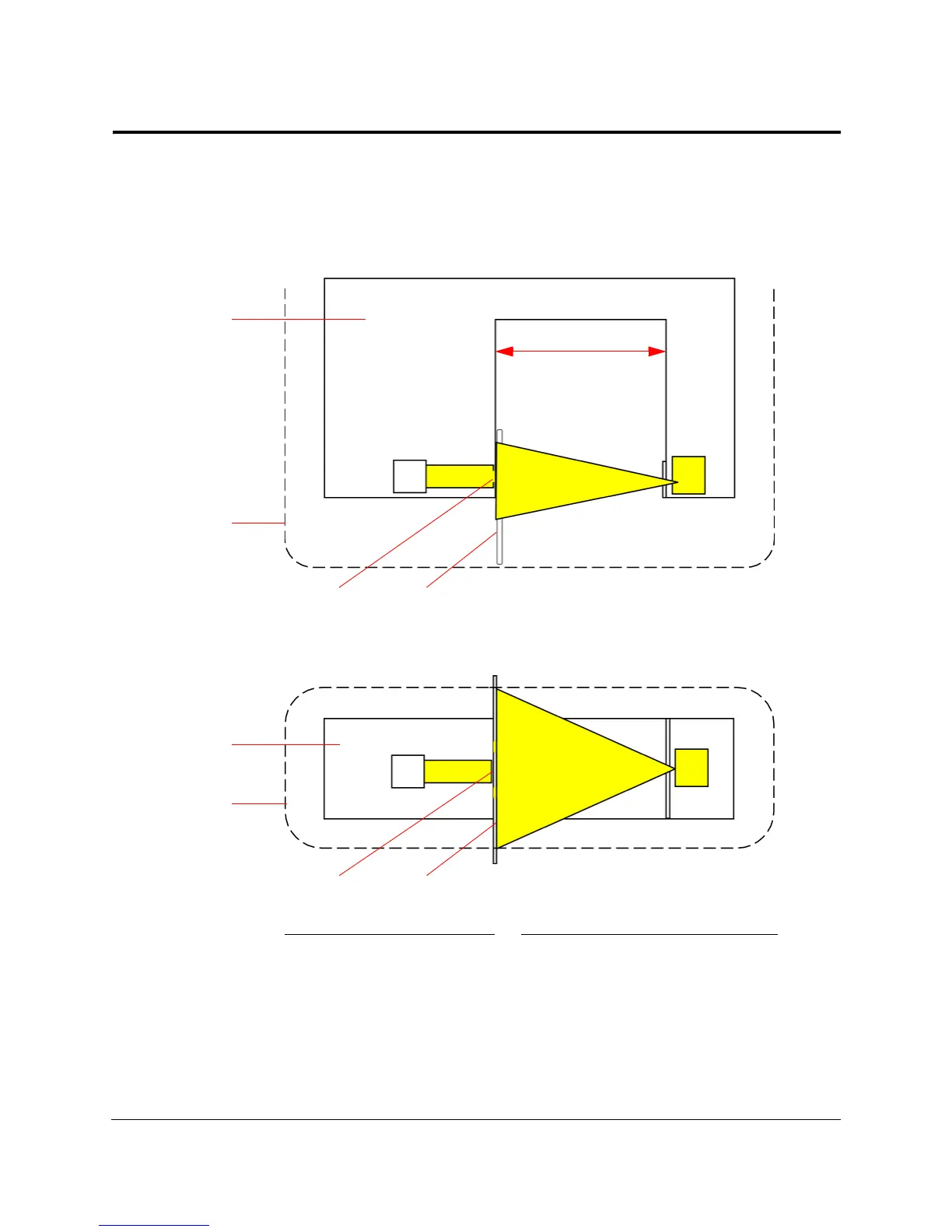

Figure 1-5. FT-100/CI Radiation Profile Schematic
No. Description No. Description
1 Inspection head 5 Radiation detector
2 Inspection tunnel 6 5 cm isodistance contour
3 Sealed Americium-241 7 Shielding bar (1/4” thick steel)
4 Limits of main beam 8 Detector window
