WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

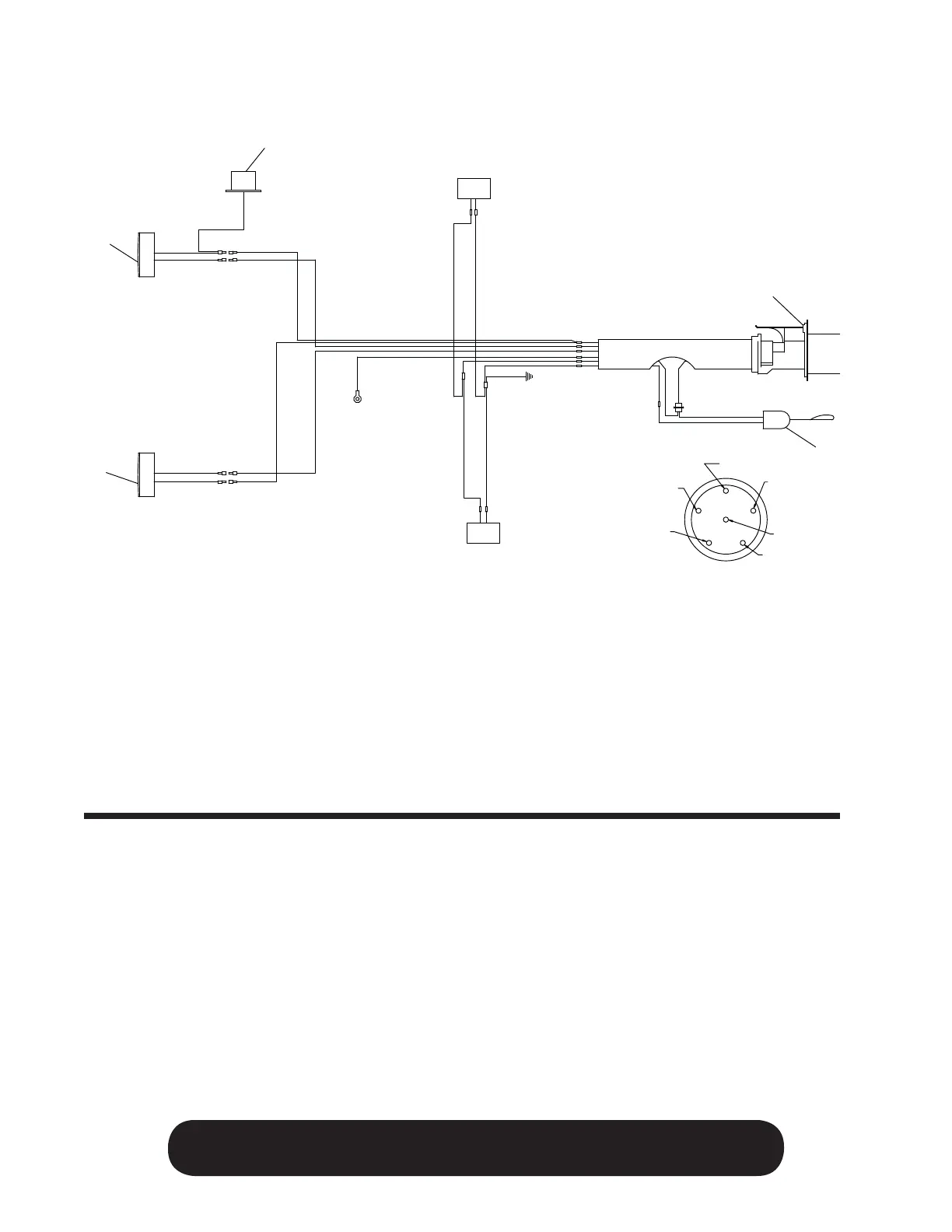

TRAILER WIRING
Ref. No. Part Number Description No. Req’d
031210 Trailer Wiring Harness 1
1 075592 Trailer Plug 1
2 023424 Breakaway Switch 1
3 005138 Right Tail Light 1
4 005137 Left Tail Light 1
005137-A Lens 1
5 005436 License Light 1
004720 License Plate Bracket 1
TM
GD
A
LT
RT
S
GROUND
(WHITE)
LEFT TURN
(YELLOW)
RIGHT TURN
(GREEN)
NOT USED
BRAKES
(BLACK)
RUNNING
LIGHTS
(BROWN)
Female Coupler Looking at Terminal End
RED
RED
BLACK
BROWN
WHITE
GREEN
YELLOW
STARTER
BLACK
BROWN
BROWN
1
2
BROWN
BROWN
RED
RED
BLACK
WHITE
WHITE
BLACK
4
3
5
To Next Page
