Finn B70 - Trailer Frame Assembly (Standard Trailer Model)

44
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

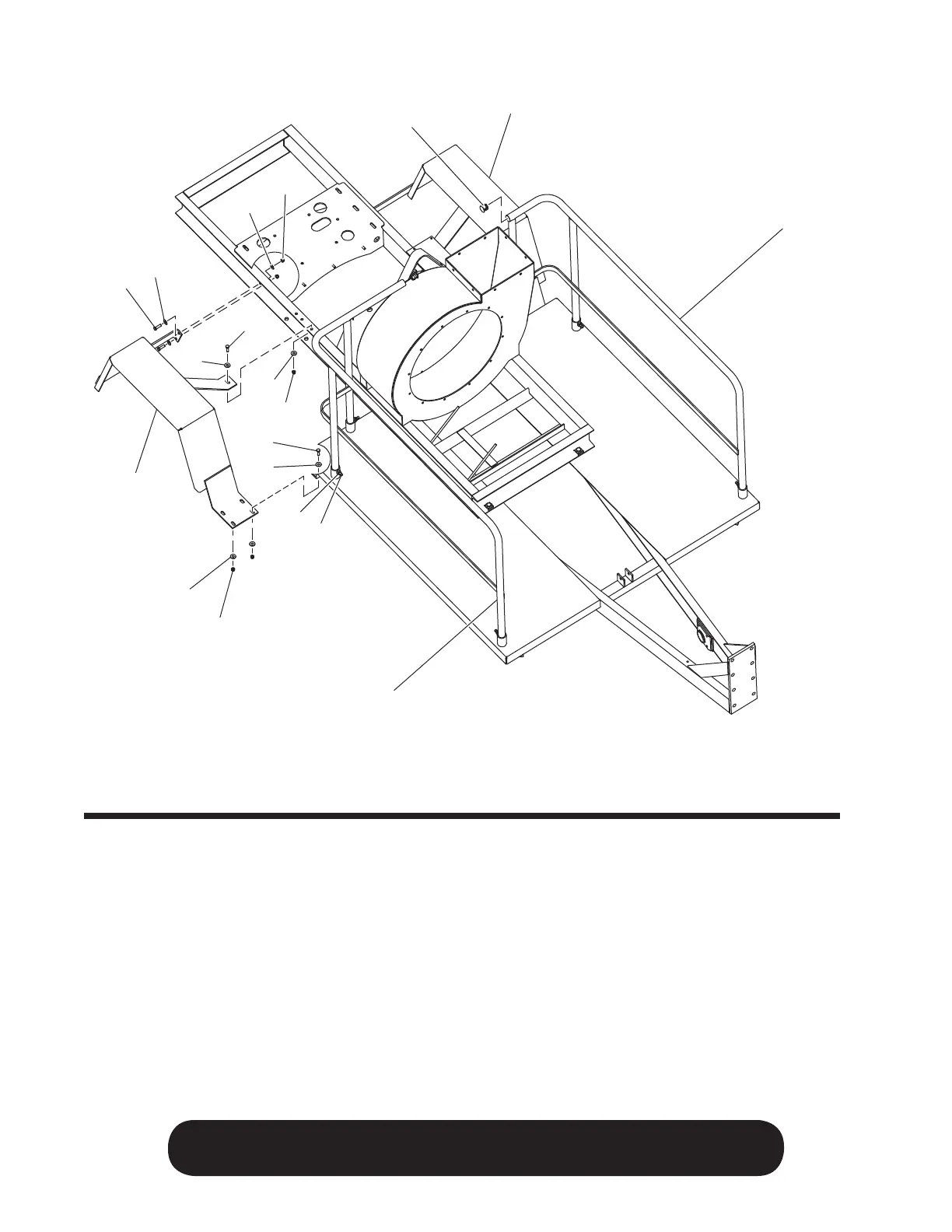

TRAILER FRAME ASSEMBLY
(STANDARD TRAILER MODEL)
Ref. No. Part Number Description No. Req’d
1 004996 Pipe Plug 2
2 031183-02 Left Guard Rail Weldment 1
3 031183-01 Right Guard Rail Weldment 1
4 z Square Head Set Screw, 3/8 - 16 UNC - 1.0 LG. Flat Point 6
5 z Hex Nut, 3/8 - 16 6
6 z Prevailing Torque Hex Nut, 3/8 All Metal Type 10
7 z Plain Washer, 3/8 Regular Type B 20
8 z Hex Head Cap Screw, 3/8 - 16 UNC - 1.25 LG. Grade 5 10
9 031196-01 Right Fender Weldment 1
10 031196-02 Left Fender Weldment 1
z Standard Hardware Item - Available at your local hardware store.
4
9
3
8
2
7
5
10
1
6
7
8
7
7
6
8
7
7
6
