Finn B70 - Blower and Drive

59
WHEN ORDERING PARTS, BE SURE TO STATE
SERIAL NUMBER OF MACHINE

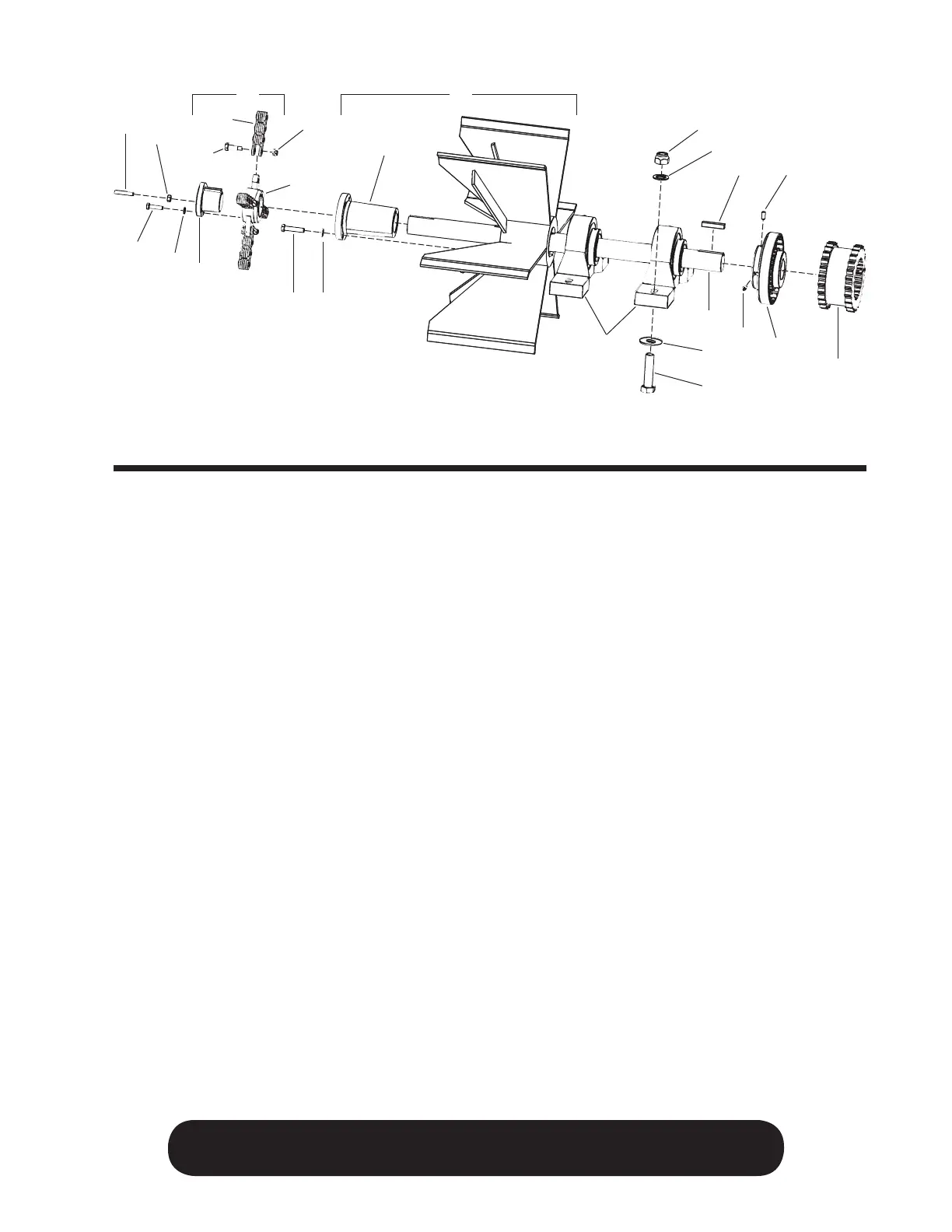

BLOWER AND DRIVE
Ref. No. Part Number Description No. Req’d
1 031274 Coupling Insert 1
2 031272 Coupling Flange 1
3 z Hex Socket Set Screw, Cup Point, 5/16 - 18 x 0.7 2
4 190125 Key, 3/8 x 3/8 x 2 1
5 030904 Blower Shaft 1
6 z Hex Head Cap Screw, 3/4 - 10 UNC - 3 LG. Grade 5 4
7 z Plain Washer, 3/4 Wide Type A 4
8 z Plain Washer, 3/4 Narrow Type B 4
9 z Prevailing Torque Hex Nut, 3/4 All Metal Type 4
10 030712 Bearing, Pillow Block 2
11 031029 Blower Blade with Hub 1
11A 030877 Blower Bushing 1
z Key, 3/8 x 3/8 x 4 (Bushing to Shaft, Not Shown) 1
z Key, 1/2 x 3/8 x 3 (Hub to Bushing, Not Shown) 1
12 z Regular Helical Spring Lock Washer, 3/8 3
13 z Hex Head Cap Screw, 3/8 - 16 UNC - 1.75 LG. Grade 5 3
14 030950 Beater Roll Assembly 1
14A 030872 Beater Roll Hub 1
14B 030876 Beater Roll Bushing 1
14C 020111 Beater Chain 3-Pitch 4
14D 020119 Beater Bolt 4
14E 022487 Flex Nut 4
15 z Regular Helical Spring Lock Washer, 5/16 3
16 z Hex Head Cap Screw, 5/16 - 18 UNC - 1.25 LG. Grade 5 3
17 z Hex Nut, 5/16 UNC 1
18 z Hex Head Cap Screw, 5/16 - 18 UNC - 1.75 LG. Grade 5 1
(Head Removed)
z Standard Hardware Item - Available at your local hardware store.
5
1
2
43
6
7
9
8
3
10
11A
18
16
17
15
1213
14B
14C
14D
14E
14A
1114
